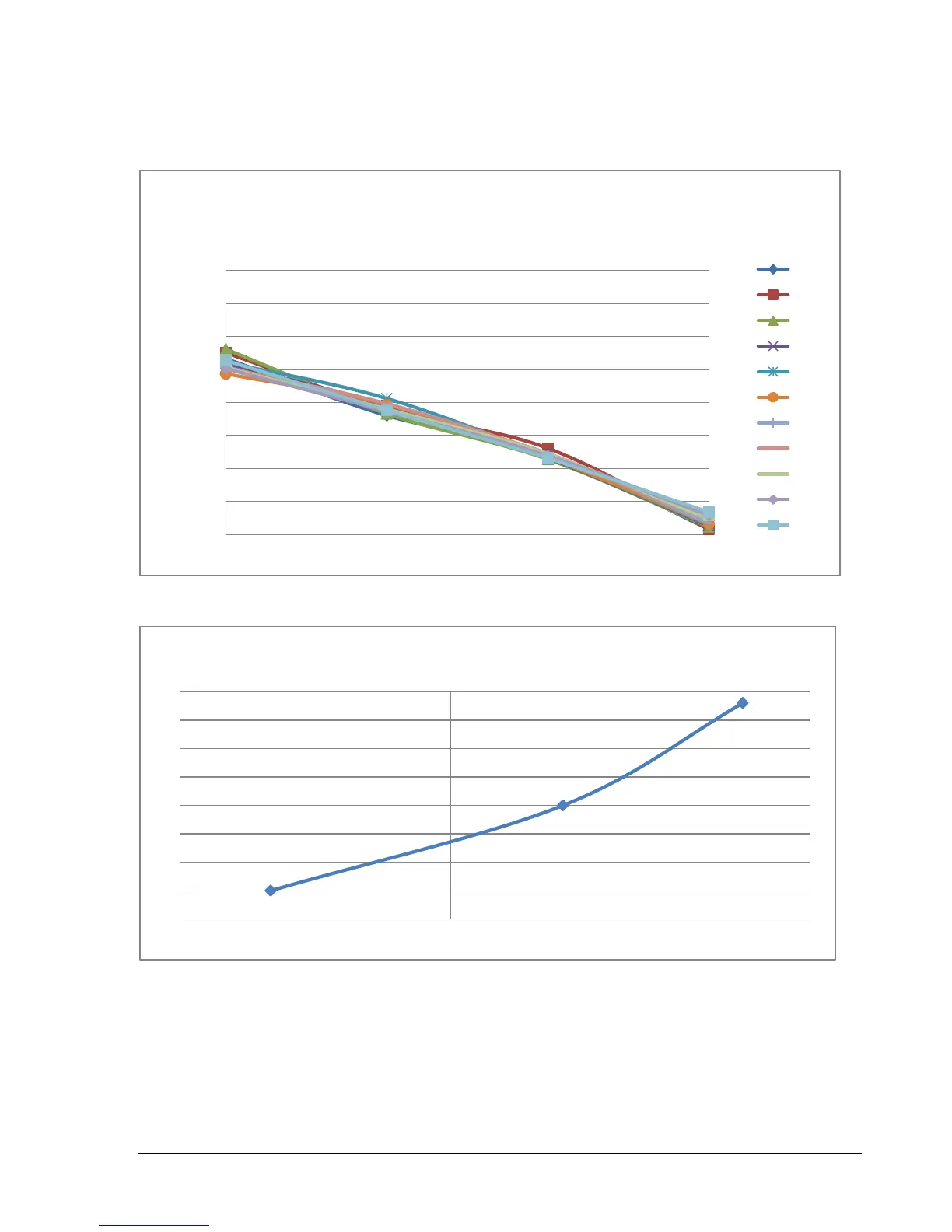

Phase Noise 15.1.3.2
Displayed Average Noise Level Change over Temperature 15.1.3.3
* Shown for gain 3, attenuator 0 dB. For auto gain/attenuator settings at cold temperatures, a reference
level of -55 dBm may be required for maximum sensitivity, instead of the usual -50 dBm.
Residual Signals over Temperature 15.1.3.4
Temperature typically has little effect on residual signal levels.
-100
-95
-90
-85
-80
-75
-70
-65
-60
100 1,000 10,000 100,000
dBc/Hz
Offset (Hz)
Typical Phase Noise Across Temperature at 1
GHz
-40 C
-30 C
-20 C
-10 C
0 C
10 C
21 C
32 C
43 C
54 C
65 C
-2
-1.5
-1
-0.5
0
0.5
1
1.5
2
-60 -40 -20 0 20 40 60 80
Change from 25 C (dB)
Temperature (deg C)
Typical DANL change (dB)
