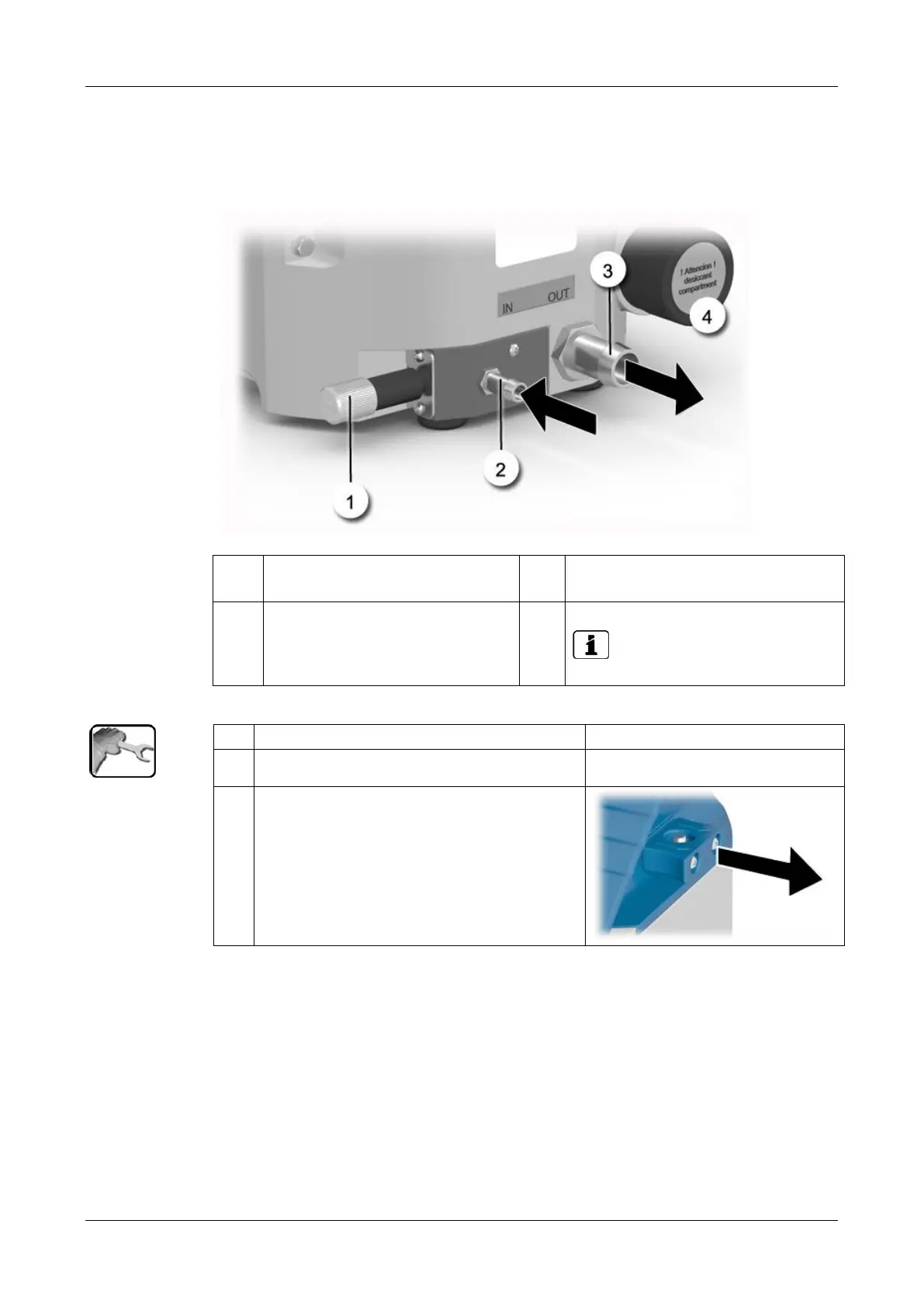

Figure 3: Water bath connections

Regulator valve / emptying mecha-
nism

Inlet Ø 8 mm

Outlet Ø 16 mm

Desiccant container
Open the desiccant container on-
ly when changing the desiccant.
WORKSTEP
ADDITIONAL INFO / IMAGES
1.
Set up the instrument on an even surface.
2.
Remove the water bath cover:
To do so, pull the two side locks outward at
the same time and lift the water bath cover.
