Operation Instruction Manual LabScat 2
12112E/2 33

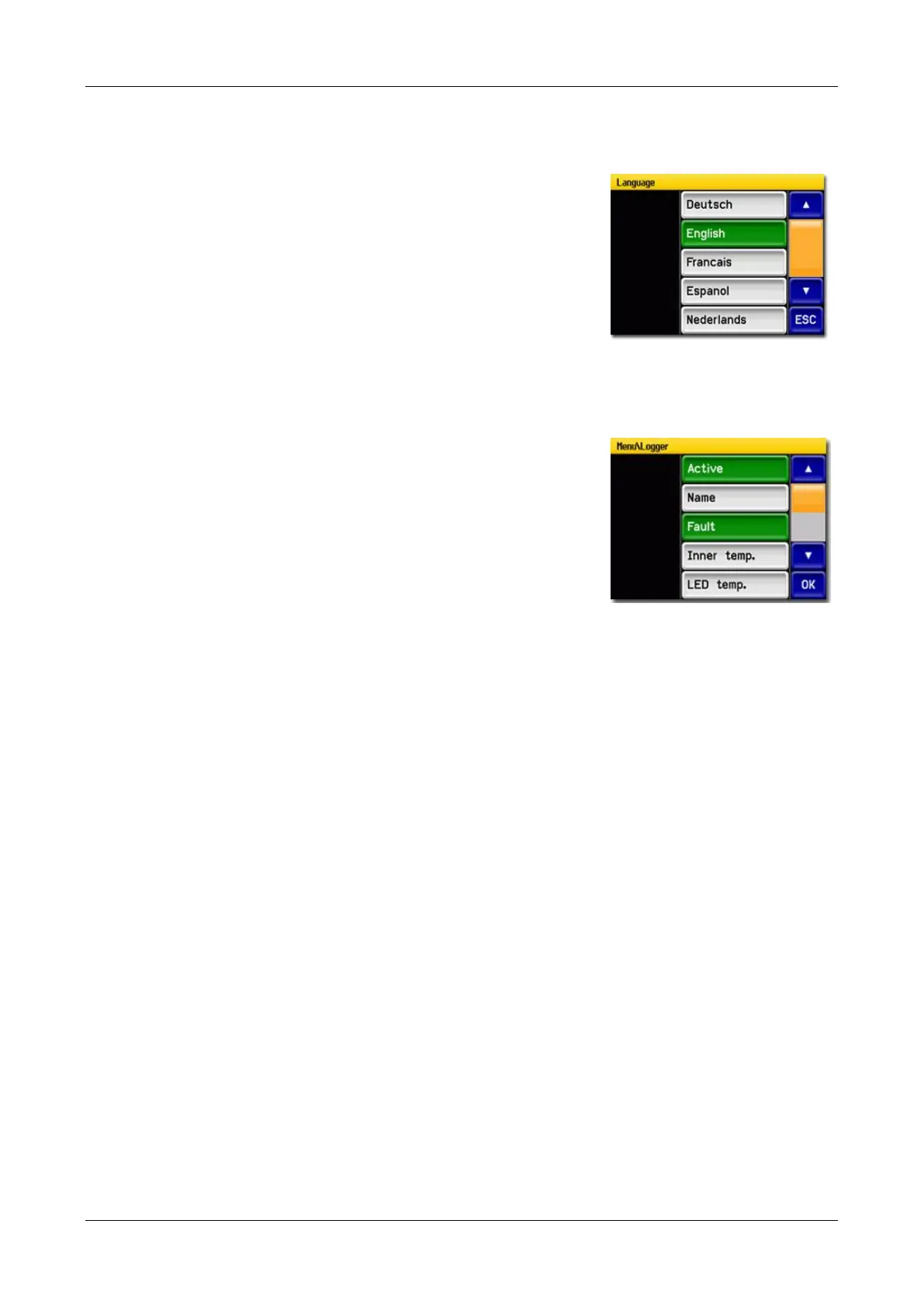

7.8.3 Single selection of functions
The single selection is identifiable by the ESC button be-
low right.
The currently selected function is green. Use the
Up/Down arrows to navigate the options in long lists.
Use the ESC button to cancel the entry.
Pressing a selection item saves the configuration and
completes the entry.
Figure 11: Example of single selection
7.8.4 Multiple selection of functions
The multiple selection is identifiable by the OK button
bottom right:
The currently selected values are green. Use the
Up/Down arrows to navigate the options in long lists.
Pressing a selection item changes the active status of the
corresponding item. Press the OK button to save the
configuration and complete the entry.
Figure 12: Example of multiple selection
