Emergency Voice
Communication System

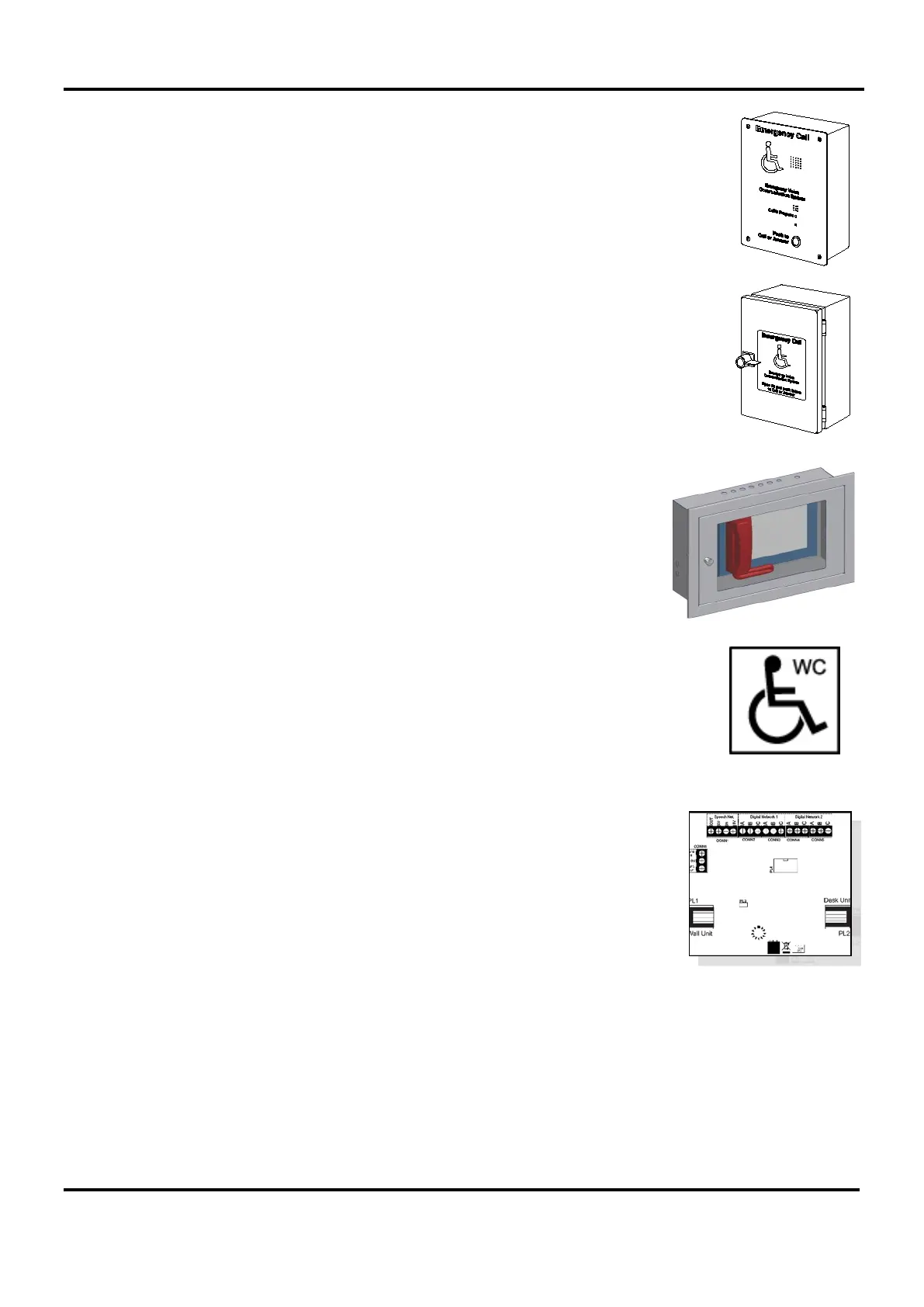

Type B Disabled Refuge Outstation - flush mount ed (part no. EVC302F/GF)
Identical to the EVC302S/GS version but with a flat fascia suitable for flush installation. The
EVC302F has a stainless steel fascia and the EVC302GF has a green mild steel fascia. An
IP66 rated housing (BF359/1) is available to allow the outstation to be used outdoors.
Type B outstation enclosure (part no. BF359/1)
This weatherproof enclosure is used to protect an EVC302F/GF outstation when used at an
external disabled refuge. It is supplied with a non-locking handle (as disabled refuge points
should not normally be locked) and has an IP66 rating.
MCU enclosure (part no. BF359/3D)
This is a stainless steel, anti-tamper enclosure used to house an MCU. It is supplied
with two optional locking kits; BF359/3CL (camlock kit) or BF359/3SL (solenoid kit).
Disabled persons toilet alarm (part no. NC951)
The EVCS is able to interface to a disabled persons toilet alarm (DPTA) system. This is a
secondary function to the primary purpose of the EVCS. If the site has toilet alarms AND
they are connected into the EVCS, then active toilet alarms will be displayed at the
MCU/LCU. As toilet alarm monitoring is a secondary function, any activated toilet alarms will
be suppressed from being displayed if there are any calls from/to any outstations. At the end
of outstation calls the activated toilet alarms will then be displayed.
Network communication s card (part no. ECU722)
The ECU722 Network Communications Card enables up to 14 MCUs or LCUs to be
connected on a communication network, up to 1 km in length. Any MCU/LCU connected
on the network requires the installation of an ECU722 card which is mounted inside the
control unit and transmits both speech audio and digital data.
