SigTEL Compact - System up to 16 Extensions

SigTEL Compact Installation and Configuration Manual
SigTEL Approved Document No. DAU0000091 Rev 5 Page 9 of 36
Emergency Voice
Communication System
5.3

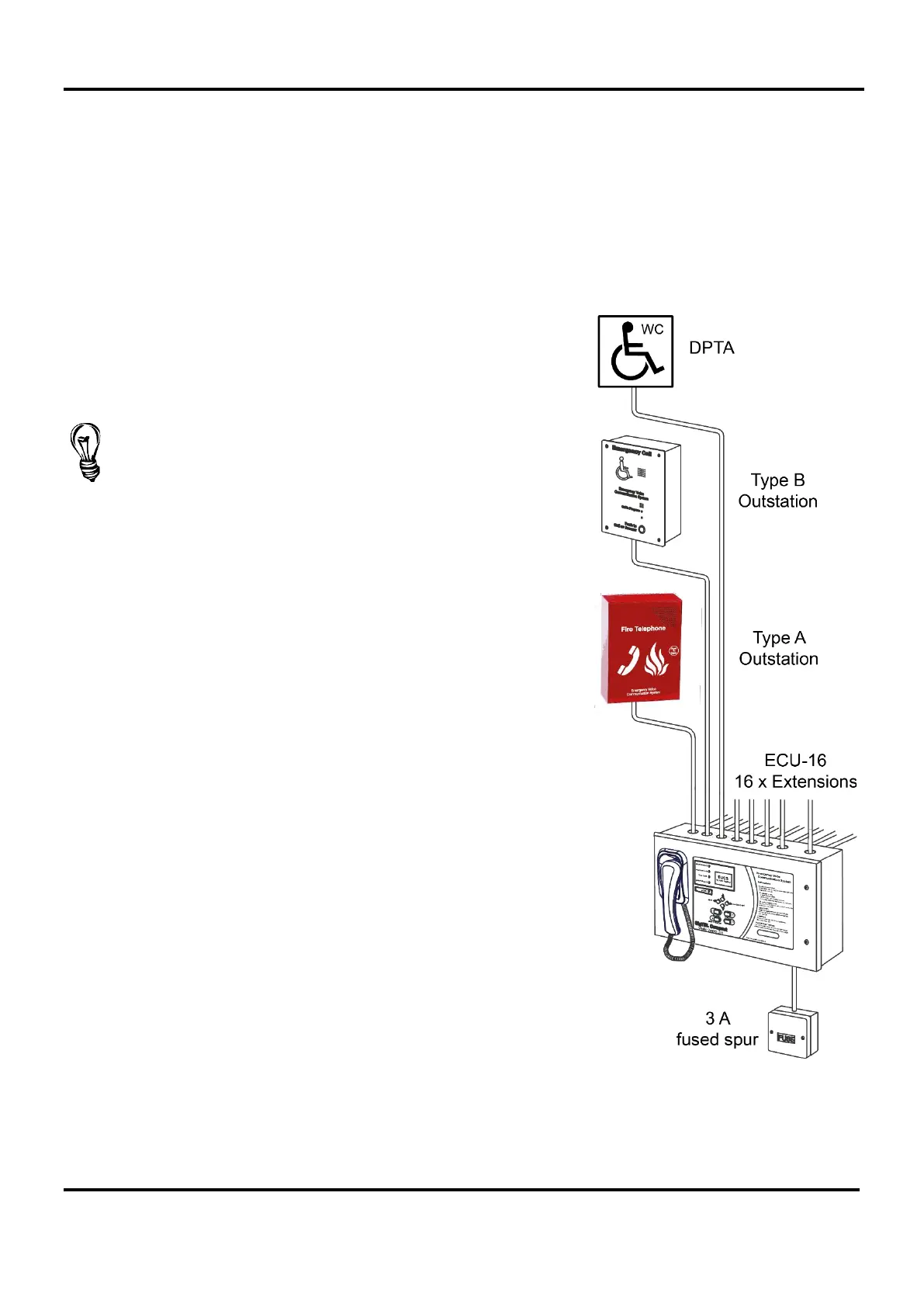

System up to 16 extension s
Equipment required
One MCU (ECU-16), requires two 12 volt 7 Ah batteries (BC286/2).
One 3 A fused spur and back box.
One Type A Outstation (EVC301RPO/RLK), or one Type B Outstation (EVC302F/GF/S/GS), or one DPTA (NC951)
per extension.
One Telephone Line Tester (FiTT).
Interconnections
For each extension to outstation: up to 1 km of 2-core, 1.5 mm
2
enhanced
fire-rated cable.
For each extension to DPTA (NC951): 2-core cable.
Application Note 0012.0 details a suggested method when wiring
FP200 cable to an ECU-16 panel using a junction box.
See
www.c-tec.com.
