26
Starting up
EN
5

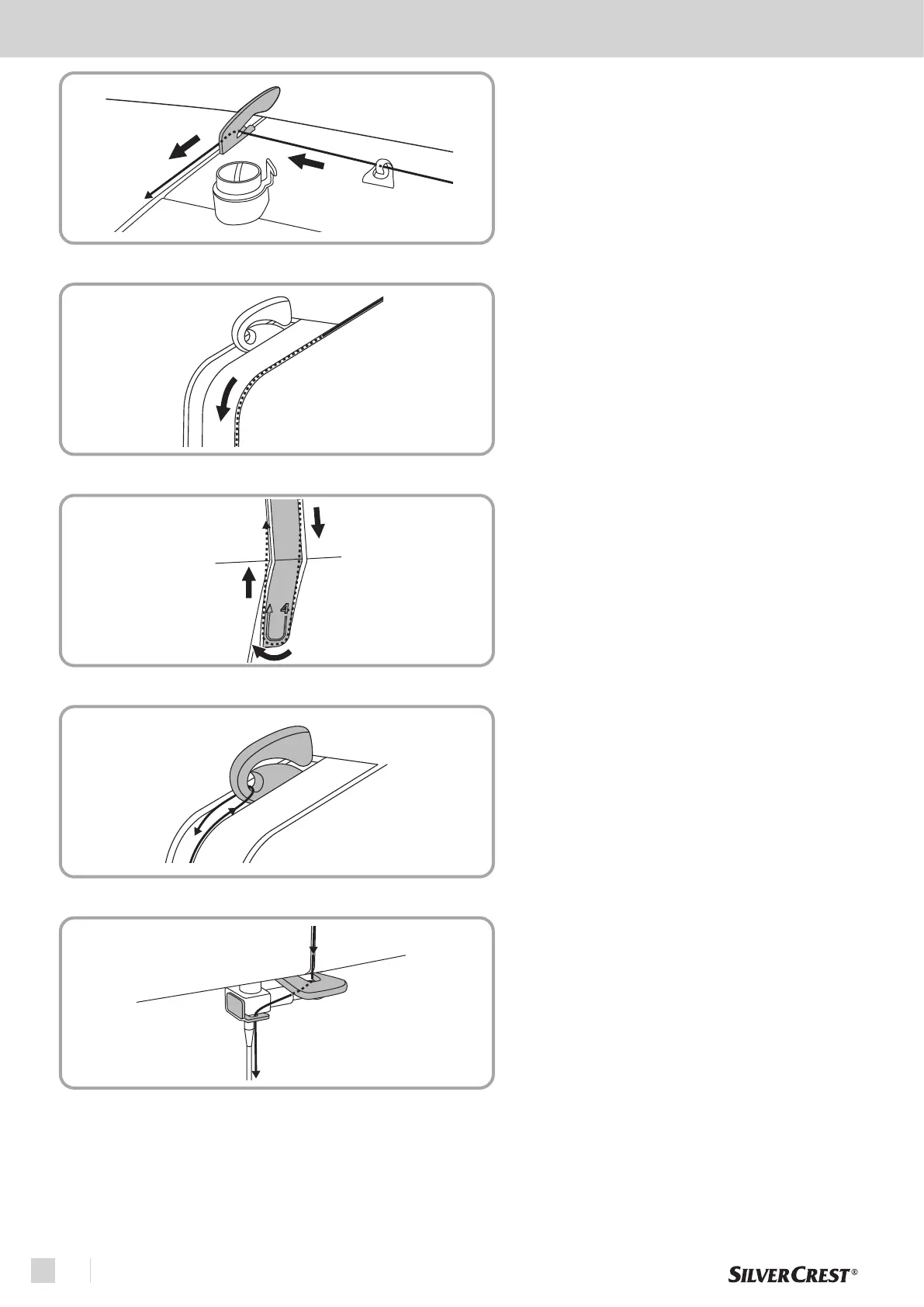

5. As illustrated, run the upper thread to the left around the
preload spring of the upper thread guide (20) and then
forward.
6
6. Lead the upper thread through the right slot further to
forward and down. The thread must run between the silver
discs so that it remains well tensioned.
7
7. Once you have reached the bottom, lead the upper thread
to the bottom left around the take-up spring of the upper
thread guide (20). Then pull it back up in the direction of the
arrow as illustrated.
8
8. Pull the upper thread up along the left slot. Once at the top,
hook it from right to left through the slotted eyelet of the
thread take-up lever (1). Then lead the upper thread back
to downwards.
9
9. Lead the thread behind the larger horizontal thread guide
(A) and then through the smaller thread guide (B) above
the needle further down. Thread the needle with the needle
threader (12).
