4. Hardware Overview
4.1 StreamCaster Hardware Interface
SC3822:

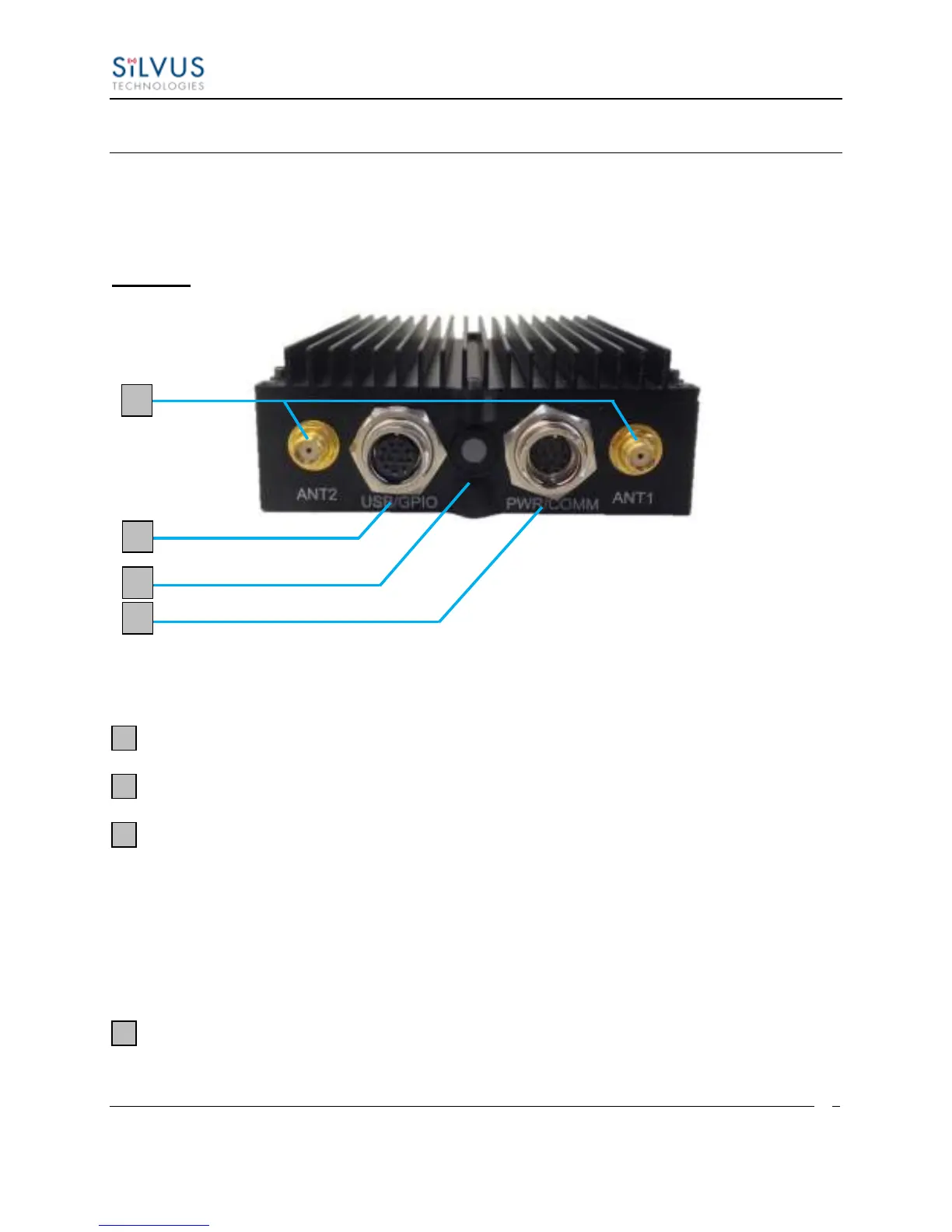

Figure 1 StreamCaster 3822 Ruggedized Enclosure
RF channels 1-2 connectors [SMA Female]
USB/GPIO connector [Hirose LF10WBRB-12SD]
Tri-Color Status LED (See Section 10.1 for Troubleshooting Information)
 Red – Radio is in the process of booting up
 Orange – Radio is fully booted but not wirelessly connected to any other radio
 Green – Radio is wirelessly connected to at least one other radio
 Flashing Red – Radio has recovered from a bad state and has reverted to factory
default settings.
Power (9-32 VDC), Ethernet, and Serial Port connector [Hirose LF10WBRB-12PD]
