5.2 StreamScape Network Manager
Silvus’ StreamScape Network Management Utility was designed to monitor the status of a Silvus
mesh network in real-time. The graphical interface network map, shown in Figure 1, allows users
to quickly and effortlessly view the network topology and configure key parameters of the
network. For ease of use, the Silvus StreamScape utility is designed to be accessible from a
Firefox or Chrome web browser.
5.2.1 Network Topology

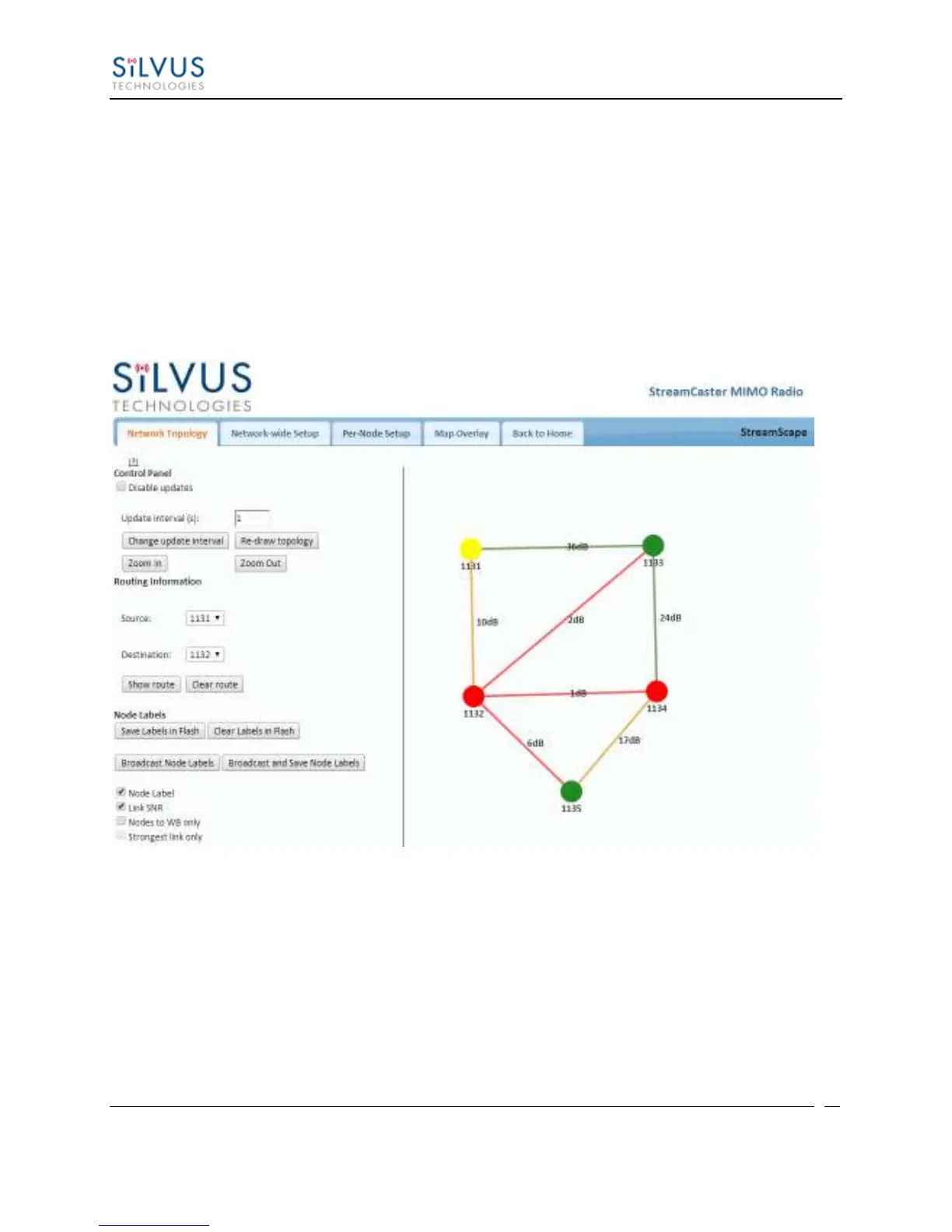

Figure 24 Silvus StreamScapeNetwork Manager
The network topology provides the user with real-time visual feedback of the network. Users
will be able to determine several network characteristics at a glance with the following features:
Color Coded Link Health – Color coding of each link in the network allows the user to
quickly identify the weak links within a network. A link between two nodes will
transition from green to yellow to red as the link weakens while also displaying the SNR
of the link. This can be seen in Figure 25.
