StreamCaster MIMO Radio User Manual 3/17/15
10017C000 Silvus Technologies Confidential Page
11
SC3500/SC3800 with EXT Connector (PA Faceplate Option):

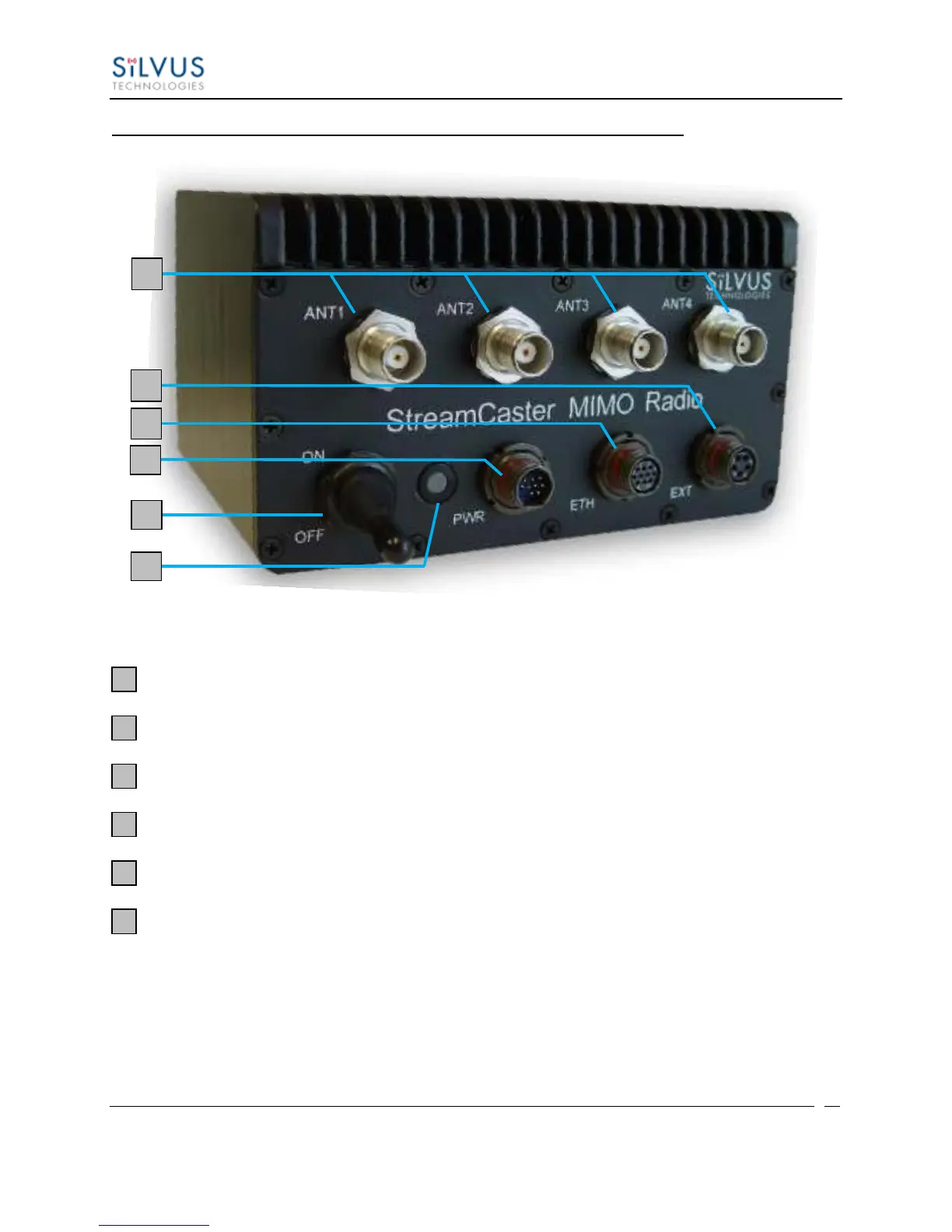

Figure 3 StreamCaster 3500/3800 Ruggedized Enclosure
RF channels 1-4 connectors [TNC Female]
EXT PA Connector [Mighty-Mouse 801-010-07NF7-25SA]
Ethernet connector [Mighty-Mouse 801-010-07NF7-10SA]
Power (9-20 VDC) and Serial Port connector [Mighty-Mouse 801-010-07NF7-10PA]
Power Switch
Tri-Color Status LED (See Section 10.1 for Troubleshooting Information)
 Red – Radio is in the process of booting up
 Orange – Radio is fully booted but not wirelessly connected to any other radio
 Green – Radio is wirelessly connected to at least one other radio
 Flashing Red – Radio has recovered from a bad state and has reverted to factory
default settings
1
2
3
4
5
6
2
3
4
1
6
5
