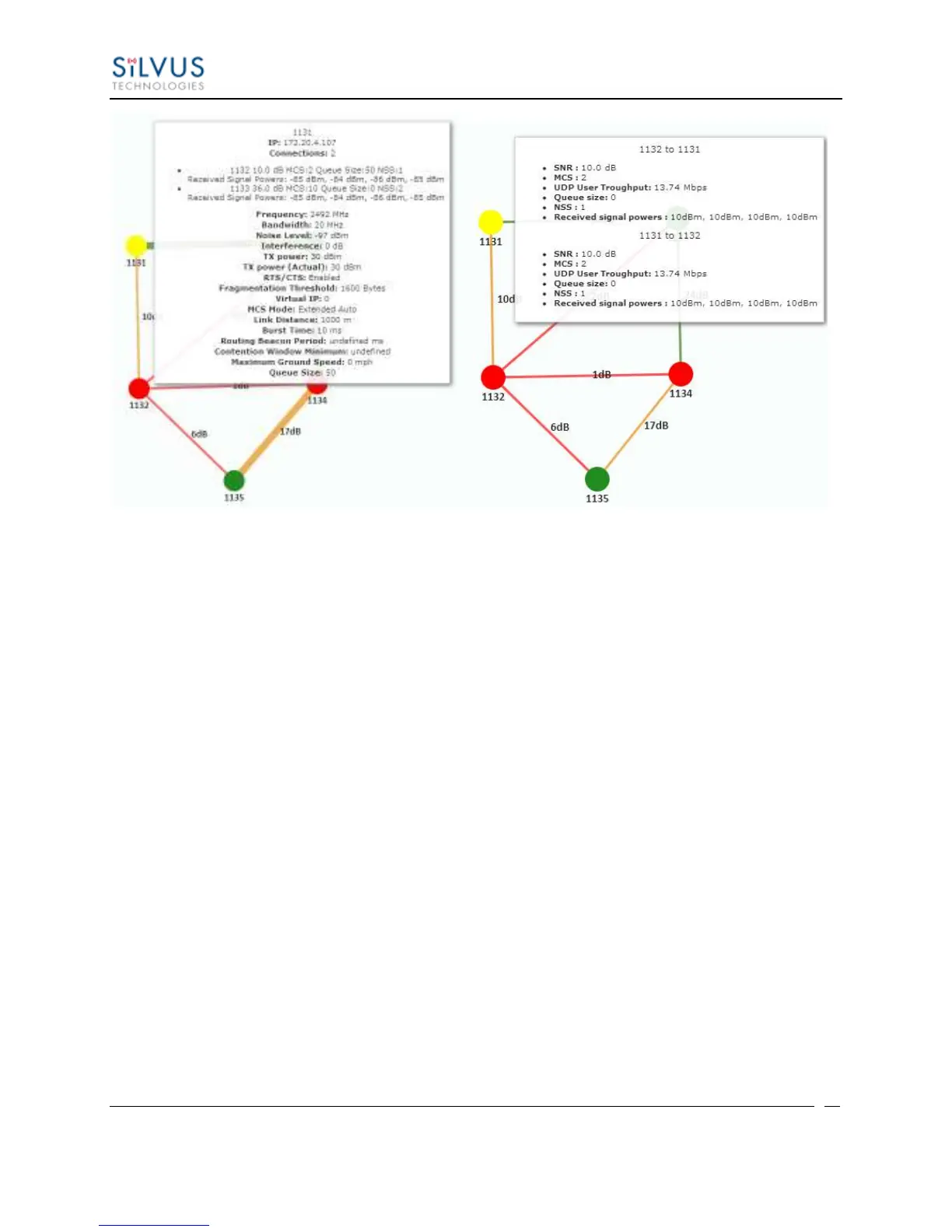

Figure 28 Individual Node Characteristics (Left), Link Characteristics (Right)
 Link Characteristics – By simply rolling the mouse over any link in the network, users
can view key operating characteristics of that link. Figure 28 shows an example of this
for the link between node ‘1131’ and node ‘1132’. The characteristics shown are:
o SNR: The SNR of the link in each direction.
o MCS: The MCS used to transfer data in each direction.
o UDP User Throughput: The estimated UDP User Throughput available for each
direction of the link. This is estimated based on the current MCS used for
transmission.
o Queue Size: Number of packets in TX Queue in each direction.
o NSS: Number of Spatial Streams in each direction.
o Received Signal Powers: Received signal power for each antenna in each
direction.
