StreamCaster MIMO Radio User Manual 3/17/15
10017C000 Silvus Technologies Confidential Page
19
4.2 Mechanical and Operating Specifications
SC3822:
Environmental
Standard Temperature
Extended Temperature
Operating Temp.
-40° - +55° C
-40° - +65° C
IP Rating
(Ingress Protection)
IP-67 (Dust / Immersion in water up to 1m)*
*Must have all connectors mated and use IP67 or better cables/antennas
Mechanical Chassis
Standard
Extended Temperature
Dimensions
4.4” x 3.4” x 1.3”
4.4” x 3.4” x 2.0”
Weight
1.0 Pounds
1.2 Pounds
Color
a. Black anodized
b. FED-STD-595B-34094 (green 383)
Mounting
4-hole mounting patterns (Through-hole)
Connectors
RF
SMA (f) (2 each)
Data / Control
Ethernet (Gigabit for OEM, 100 Base-T for Enclosed), RS232, USB
Power
Hirose LF Series Circular Connector (Front Panel)
Samtec QSH (Expansion)
Controls and Indicators
Status Indicator
Tri-Color LED
Power Requirements
Voltage
9 32 VDC
Consumption
6W 16W (Duty Cycle and Frequency Dependent)
Mechanical OEM Board Stack
Dimensions
3.3” x 2.9” x 0.5” L x W x H
Weight
3 oz
RF Connector
SMP (m)

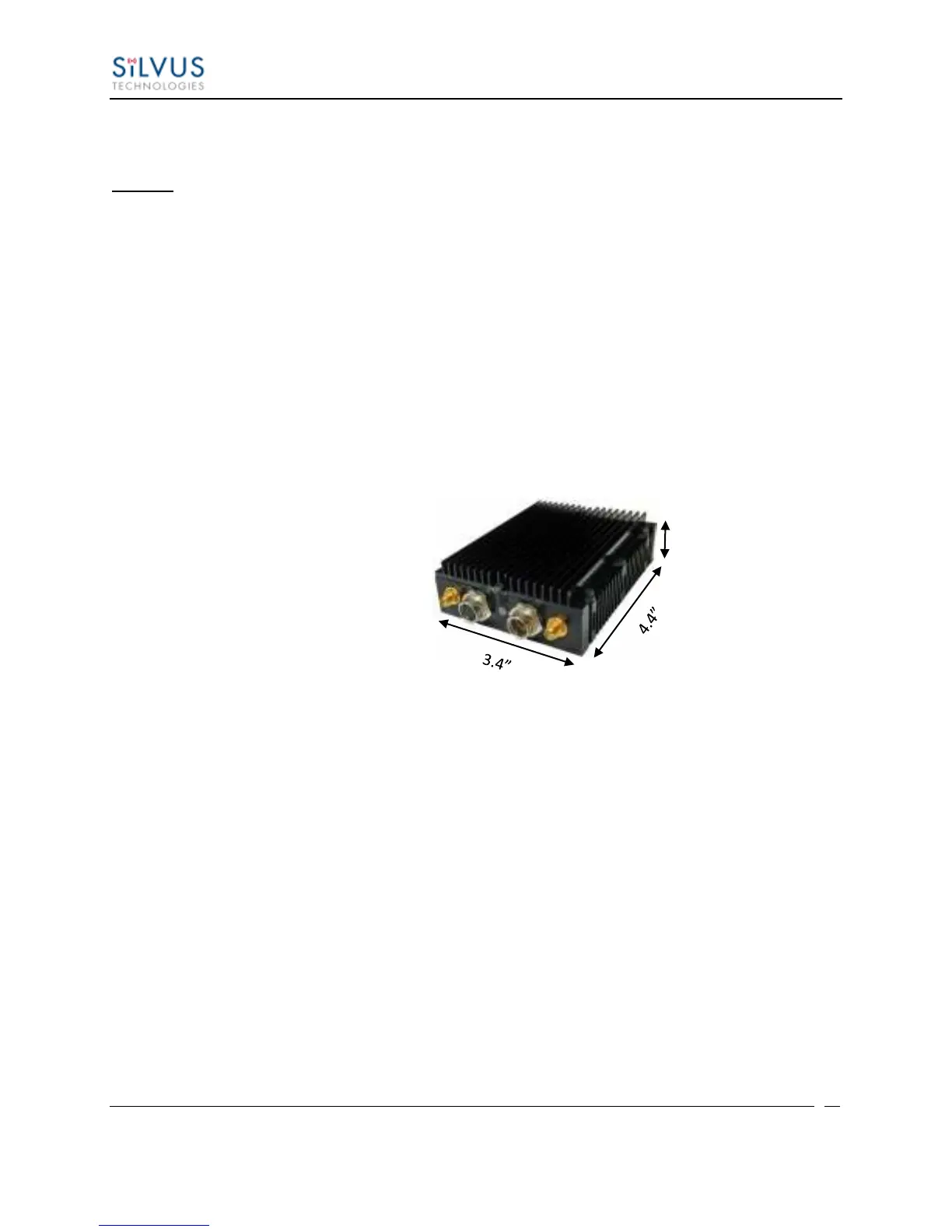

*Standard Temperature enclosure shown.
Exteded Tep has height of ”.
.”
