Offline Map Image:
In addition to the preset map options, the user can also upload a custom image or blueprint in
place of the map.

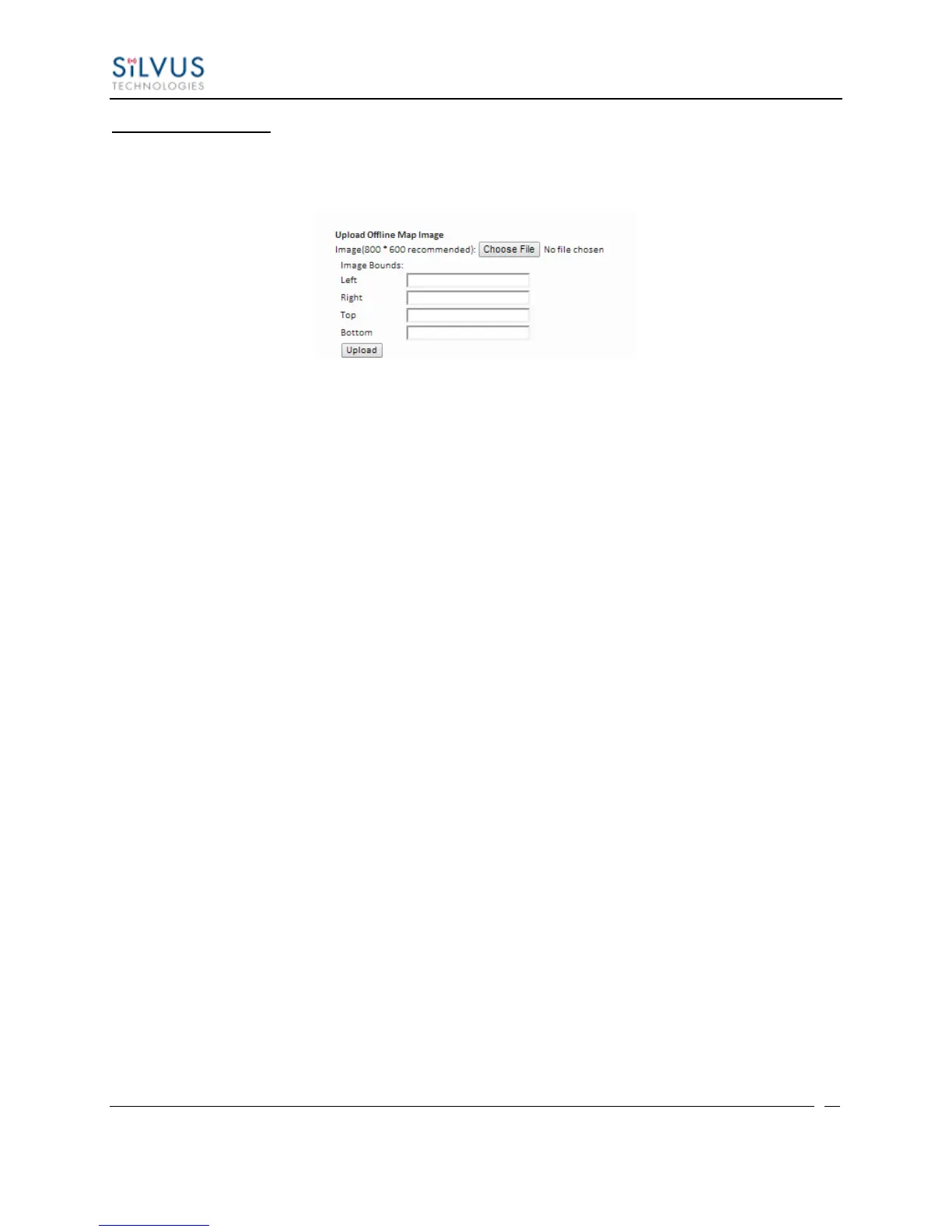

Figure 33 Offline Map Image
To upload a custom image (800 x 600 pixels recommended), first choose the file from your
desktop. You will then need to provide the image bounds. These bounds will be the latitude of
the left and right bounds of the image and longitude of the top and bottom bounds of the image.
Once entered, click upload and there will now be a 4
th
option when clicking the ‘+’ at the top left
of the map overlay.
