StreamCaster MIMO Radio User Manual 3/17/15
10017C000 Silvus Technologies Confidential Page
10
SC3500/SC3800:

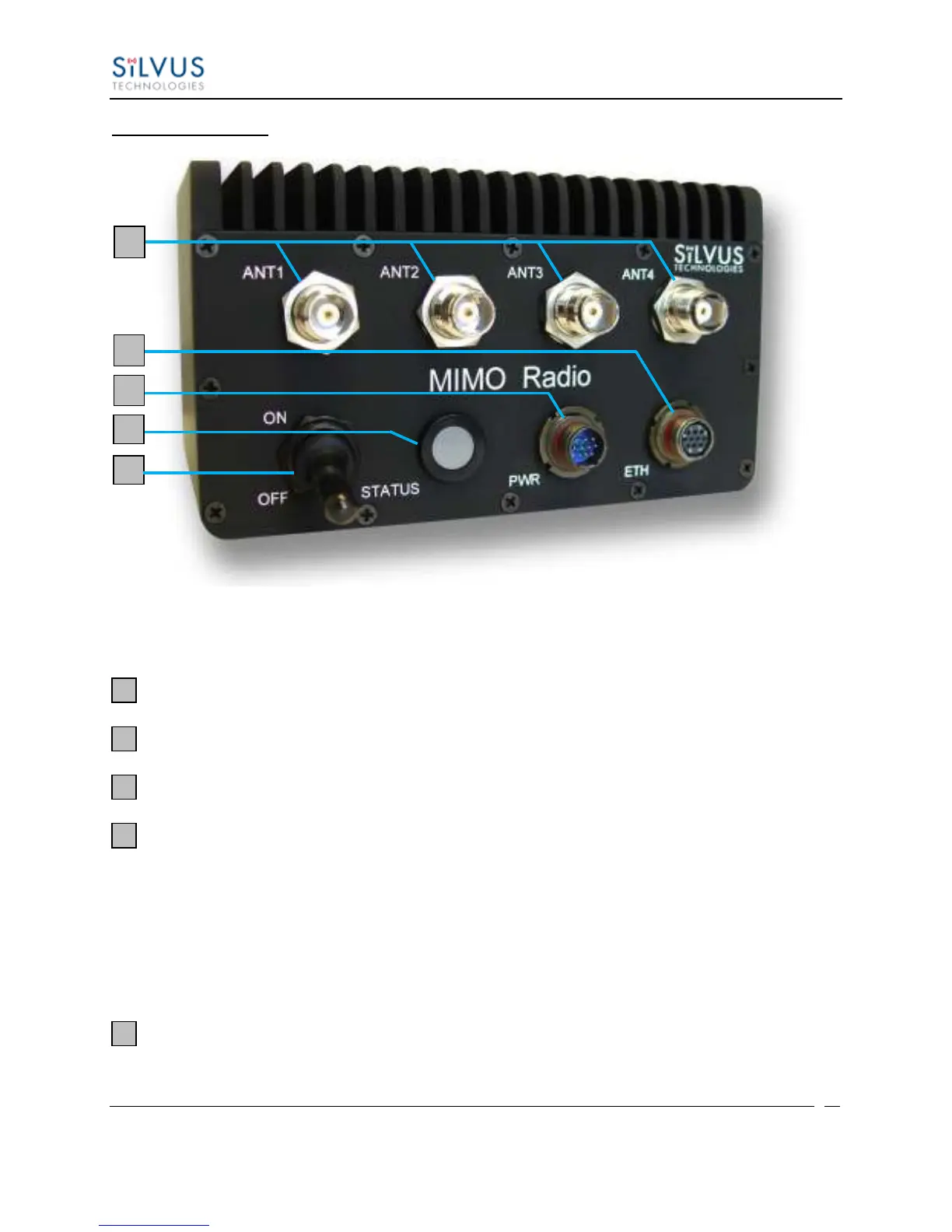

Figure 2 StreamCaster 3500/3800 Ruggedized Enclosure
RF channels 1-4 connectors [TNC Female]
Ethernet connector [Mighty-Mouse 801-010-07NF7-10SA]
Power (9-20 VDC) and Serial Port connector [Mighty-Mouse 801-010-07NF7-10PA]
Tri-Color Status LED (See Section 10.1 for Troubleshooting Information)
Red Radio is in the process of booting up
Orange Radio is fully booted but not wirelessly connected to any other radio
Green Radio is wirelessly connected to at least one other radio
Flashing Red Radio has recovered from a bad state and has reverted to factory
default settings
Power Switch
1
2
3
4
5
2
3
4
5
1
