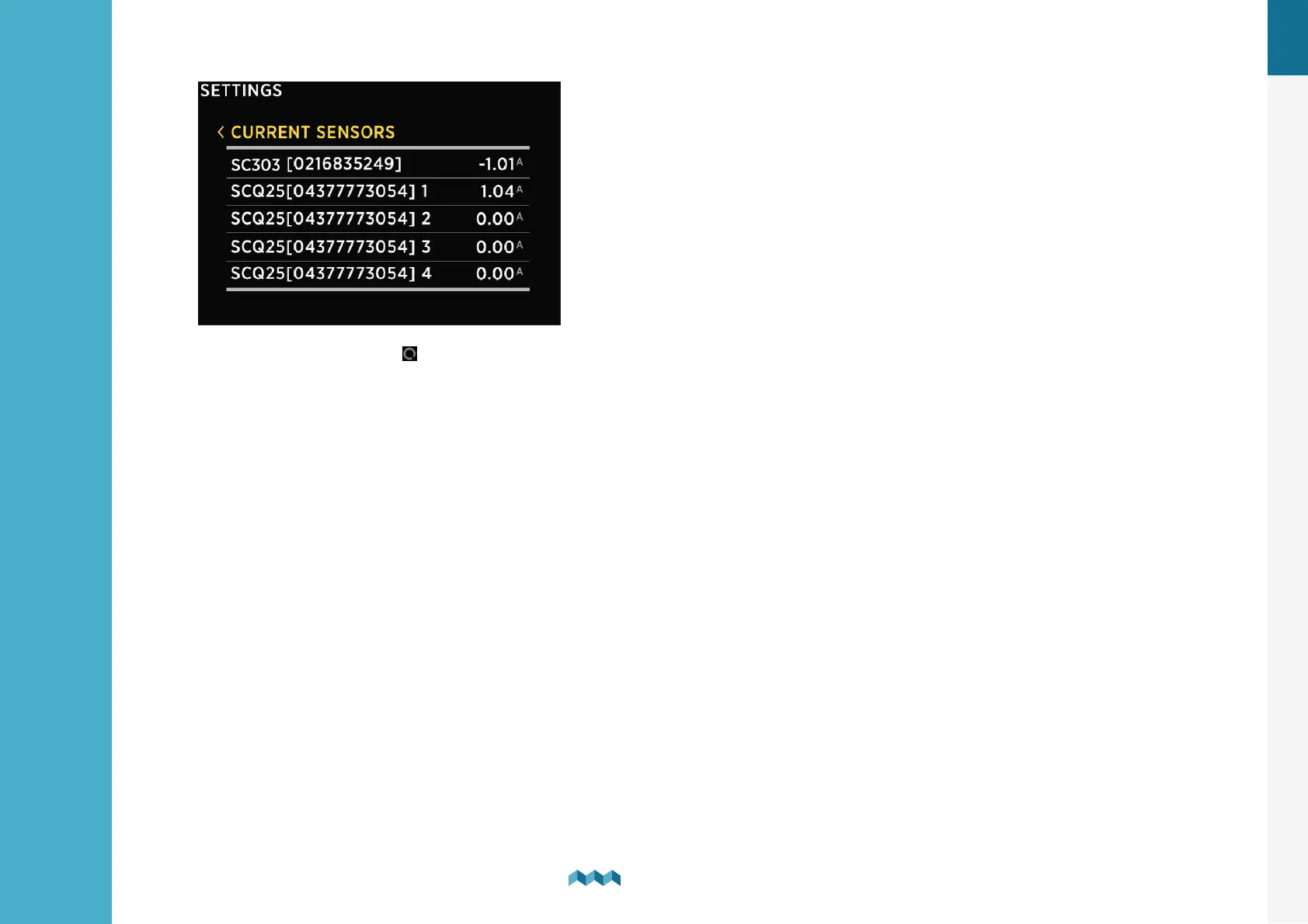

Pressing the enter button will open a settings screen for the selected sensor.
NAME - Assign a display name of the current sensor.
RANGE - Adjust the presentation of the current reading for the current sensor. By default the value is set 100A and it means,C
that the bar used for visually representing the measured current will be displayed as full at 100A (the default range is betweenC
0A - bar empty and 100A - bar full).
REVERSE CURRENT - For consumers the current reading should be a negative number measured and for generators itC
should be a positive number measured and displayed on the CURRENT SENSORS screen. In case of reverse wiring, theC
situation might be exactly the opposite. This can be resolved either by rewiring the shunt or - easier - by toggling this option.
ADD CURRENT - Determines if the measured current should be used in the calculation of the state of charge for the batteryC
to which this shunt is assigned to.
In case there a multiple shunts in the system it is important to watch out for a possible "double current" problem (when
the same current is calculated twice). This happens if the same current passes through multiple shunts. Example: a fridge
is monitored individually with a dedicated current sensors, but the same current passes also through the main battery
shunt. In such case, we should configure the monitor so that it will calculate only the current of one of the sensors, while
the purpose of the other sensor is purely the convenience of the user to see the device's consumption (individual device
monitoring).
