Simplex 4100+ User Manual

46
HOW TO OPERATE THE MICROPHONE DURING NON-ALARM CONDITIONS (SEE FIGURE 24)
During non-alarm conditions, operate the microphone in
the following manner.
1. To talk to ALL areas:
Turn ON (UP) ALL SPEAKERS TALK Switch
(Item A) and go to Step 2.
To talk to SPECIFIC areas:
Turn bottom desired Speaker Select Switches
UP to activate (Item B).
2. Remove the microphone from the cradle; press
the Talk switch (Item C). Wait for the green
TALK LED to turn ON (Item D).
3. Make the appropriate announcement.
4. When finished, unkey the microphone and
place it in the cradle.
5. Turn OFF (DOWN) the ALL SPEAKERS TALK
Switch and/or the bottom activated Speaker
Select Switches to DOWN position (Items A
and B).

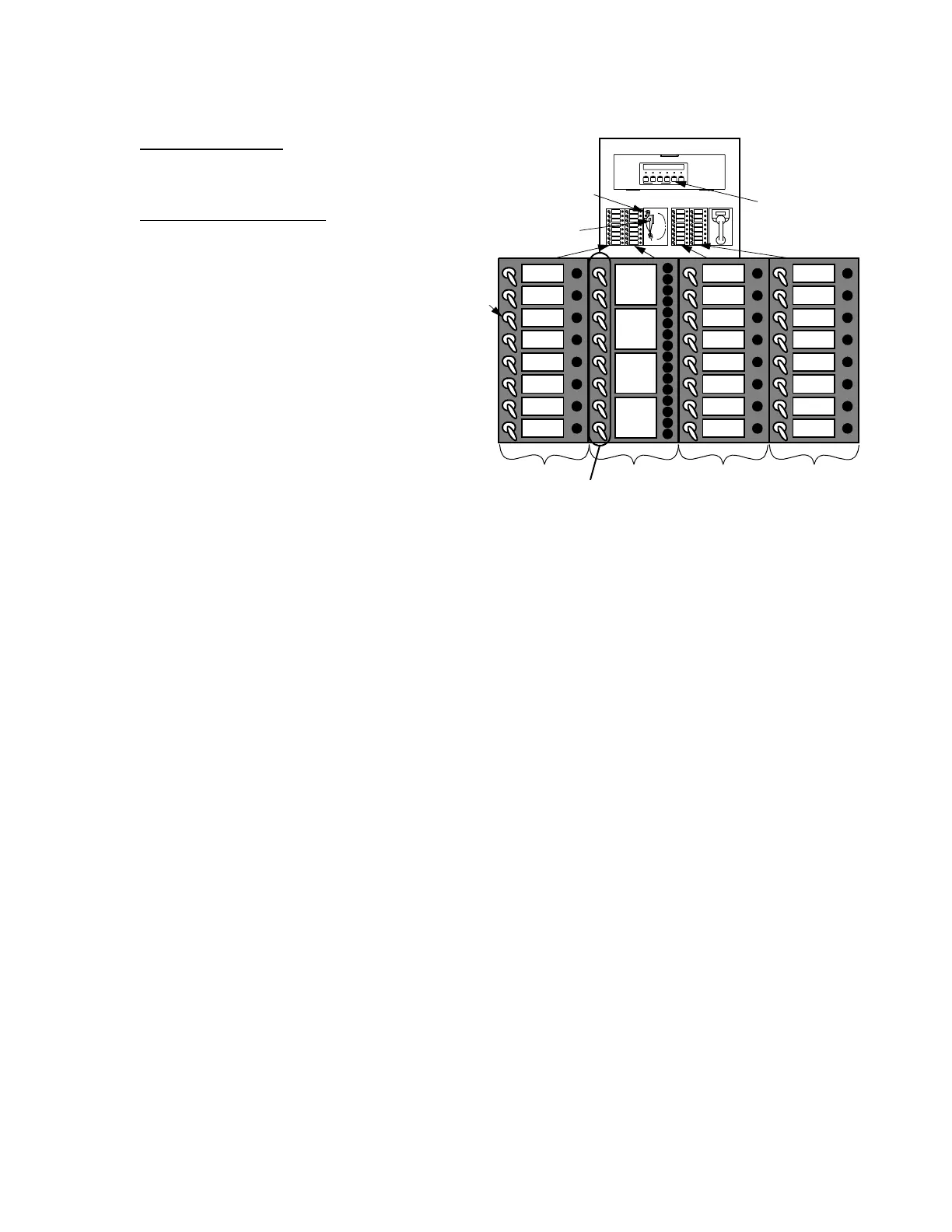

Figure 24
LED/Switch Locations for Microphone Operation
During Non-Alarm Conditions (Triple Channel)
ALL
SPEAKERS
EVAC
SELECTIVE
EVAC
ALL
SPEAKERS
TALK
A
PHONE
PHONE 1
PHONE 2
PHONE 7
PHONE 8
PHONE 9
PHONE 10
PHONE 15
SILENCE
PHONE 3
PHONE 4
PHONE 5
PHONE 6
PHONE 11
PHONE 12
PHONE 13
PHONE 14
C
D
ALARM
SILENCE
B
OPERATION SELECT
SWITCHES
SPEAKER SELECT
SWITCHES
PHONE SELECT
SWITCHES
PHONE SELECT
SWITCHES
EVAC
ALERT
TALK
TBL
EVAC
ALERT
TALK
TBL
EVAC
ALERT
TALK
TBL
EVAC
ALERT
TALK
TBL
F
L
R
1
F
L
R
2
F
L
R
3
F
L
R
4
LOCAL
SPEAKER
EVAC
LOCAL
SPEAKER
ALERT
firealarmresources.com

Simplex 4100+ Specifications

General

Type	Addressable Fire Alarm Control Panel
SLC Loops	Up to 10
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity Range	10% to 93% non-condensing
Display	LCD
Communication	Ethernet
Power Supply	120/240 VAC, 50/60 Hz
Battery Backup	24 VDC
NAC Outputs	Expandable
Releasing Capability	Yes, with releasing modules
Max Notification Appliance Circuits (NACs)	Varies by modules
Max Releasing Circuits	10
Communication Ports	Ethernet
Max Devices	3, 000
