Simrad AP48 User Manual

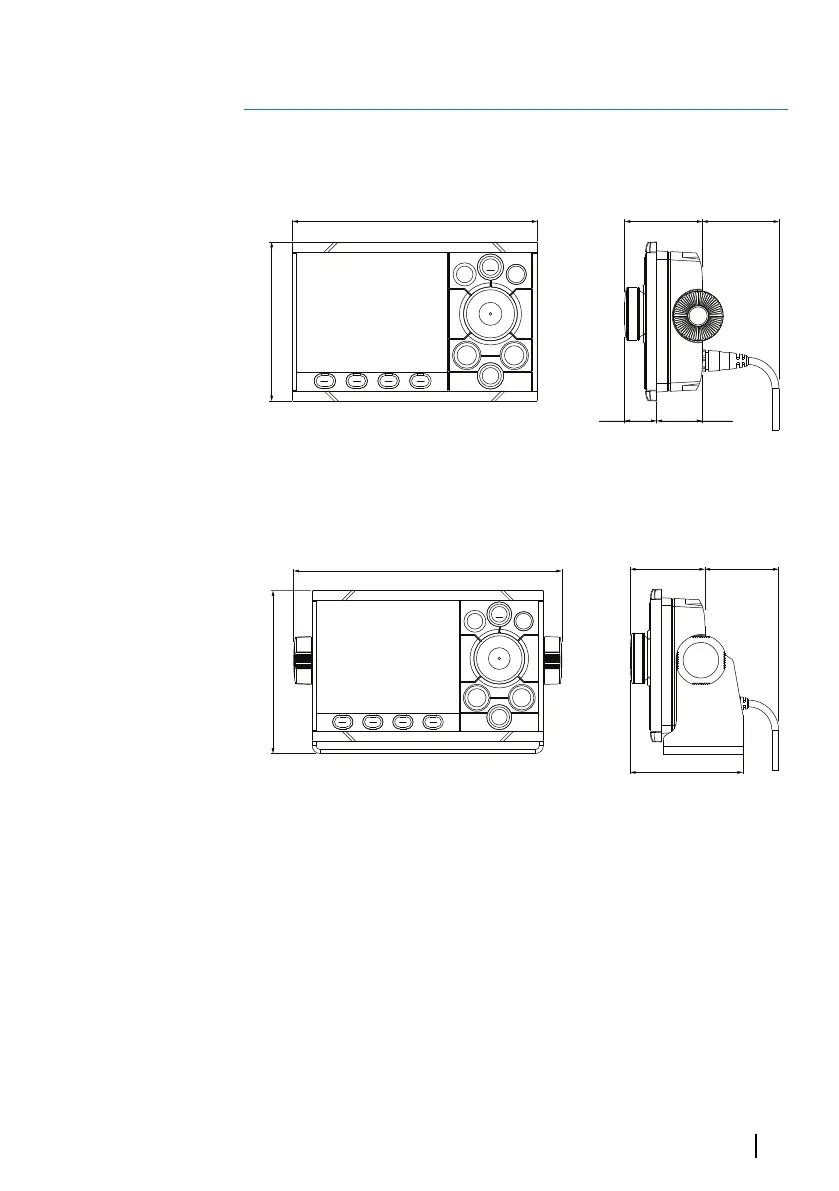

Dimensional drawings
AP48 without bracket
177.0 mm
(6.97")
56.1 mm
(2.21")
23.1 mm
(0.91")
33.0 mm
(1.30")
55.4 mm
(2.18")
115.0 mm
(4.53")
AP48 with bracket
204.8 mm
(8.06”)
56
.1 mm
(2.21")
55.4 mm
(2.18")
84.6 mm
(3.33")
124.5 mm
(4.90")
10
Dimensional drawings| AP™ 48 Operator Manual
