Pilot menu & navigation examples Chapter 6-5

6.2.1 Highway display when navigation mode is active

Call up the menu bar, and...

4,1

load Highway display

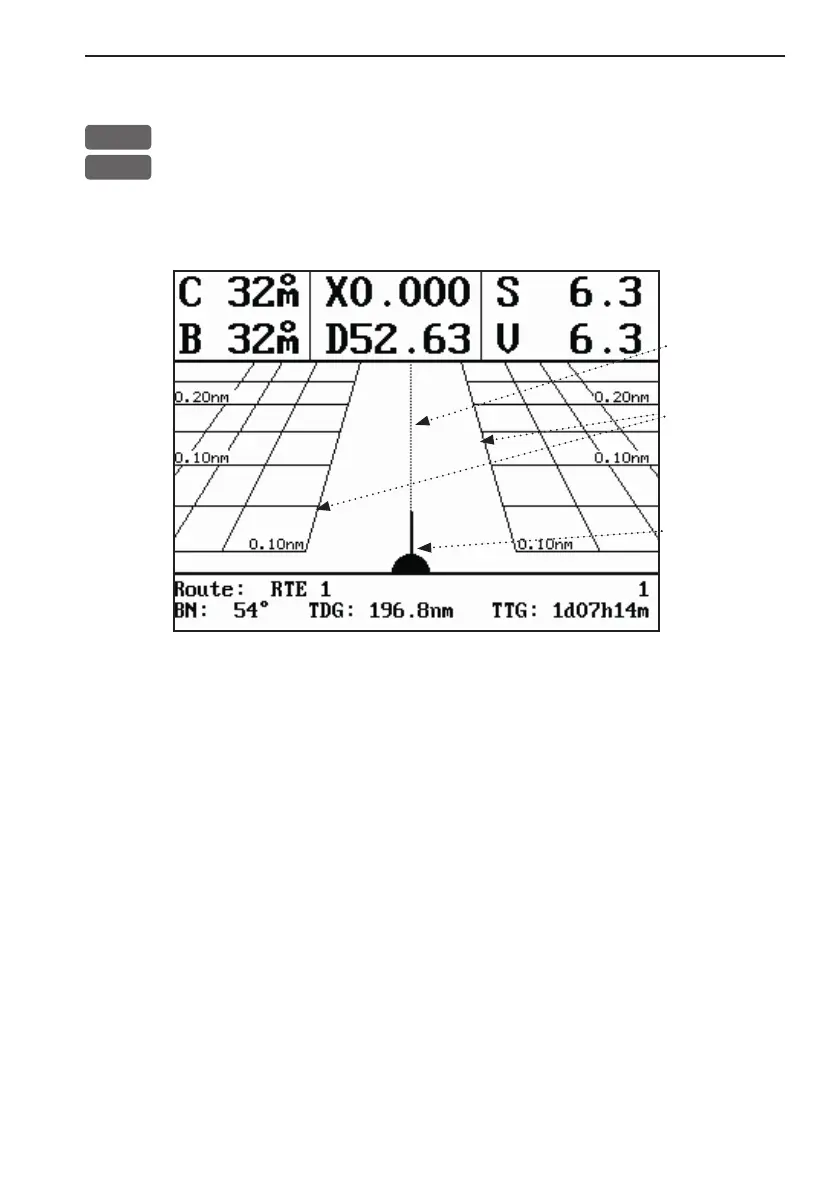

With navigation mode active, the highway display will provide a

graphical steering display:

Intended

track

between two

waypoints.

XTE alarm

lines - refer

to sec.6.2 for

alarm setup.

Ship’s posi-

tion and

course in

relation to

intended

track.

C: Course over ground

X: XTE - Cross-track-error

S: Speed over ground

B: Bearing to approaching point

D: Distance to approaching point

V: Speed towards point

Route: Name/number of active route and aproaching routepoint

BN: Bearing to next point

TDG: Total distance to go to end of route

TTG: Total time to go to end of route
