Fundamentals & initial start-up Chapter 2-7

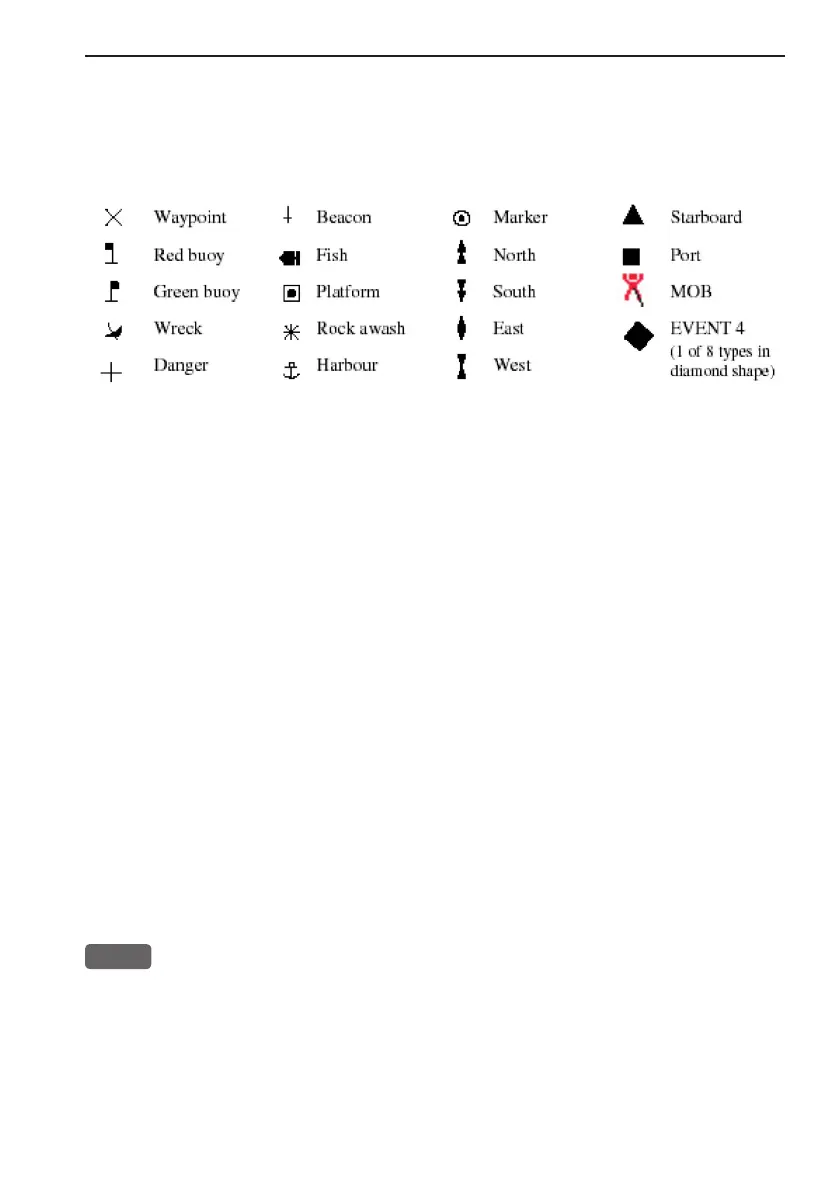

2.5 Choice of symbols
Waypoints and other points appearing on the screen can be marked
by one of 18 symbols + 8 event marks in small or large symbols:
2.6 Naming of routes, points etc.
First select the key with the desired letter, then you can either repeat
the keystrokes, which will toggle between e.g. A,B,C,1, or once you
have selected one letter you can go back and forth in the alphabet by
means of the +/- keys. Use the cursor key to go to next space or to go
back one space if you make a mistake.
Depending on the selected language, the 0 (zero) key will hold spe-
cial characters e.g. Æ Ø Å Ä Ö Ü Ñ, and the 9 (nine) key will hold:
. - (empty space)
Press the [CLR] key to delete everything from cursor position and to
the right of cursor in that row.
2.7 Initial start-up
When starting up for the very first time, the first time after loading
a new software or after a master reset: Make sure that all hardware
installation and electrical connections are completed in accordance
to the installation instructions.
PWR
Press and hold the [PWR] key until you have a picture on the screen
The system will perform a software update and when finished, a
new start-up window will be presented on the screen (see example
on next page).
CX34/44/54 Operator manual
