Chart with
data field
Echo display Radar display Highway display
SIMRAD CX44
Fundamentals & initial start-up Chapter 2-1
2.1 Fundamentals of the display and page system

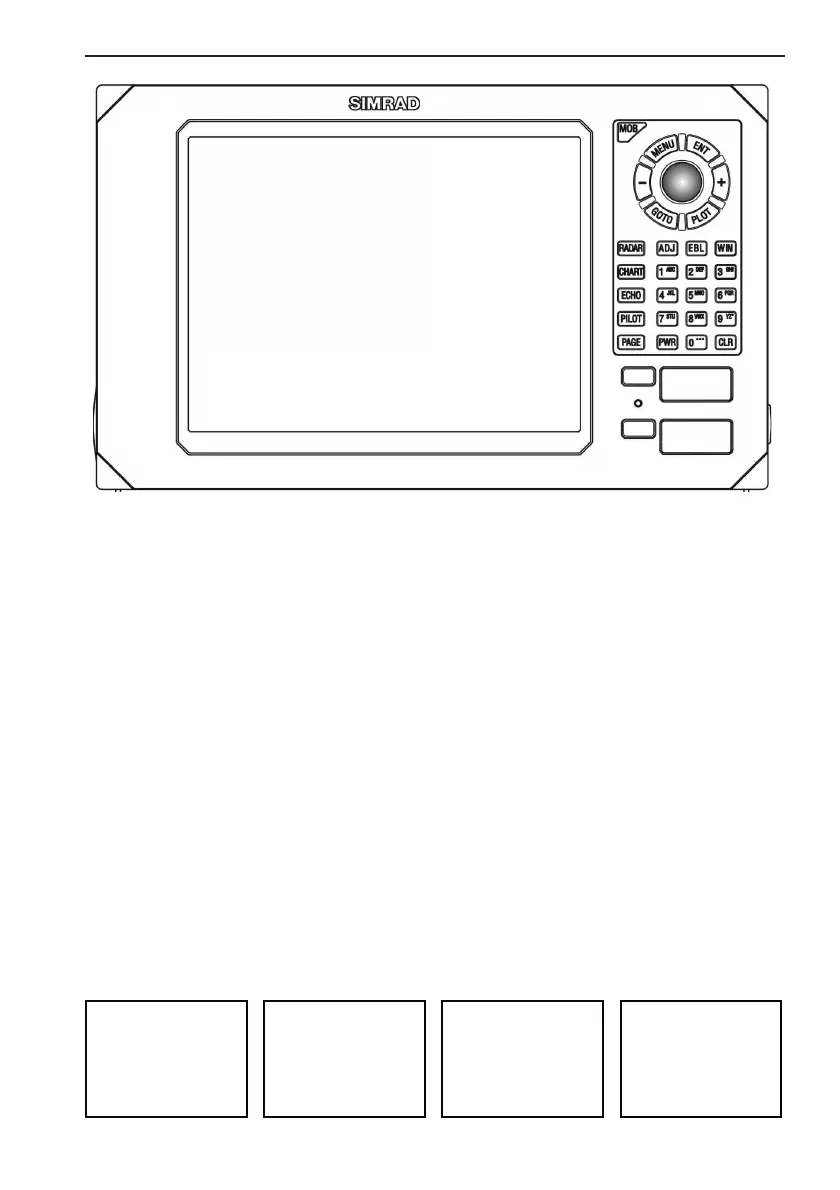

The CX34/44/54 NavStation has a multi-function screen and data
presentation system with full screen and different types of split
screens. The series of pages under the function keys (situated in a
vertical row to the right of the display) will in most situations be suf-
ficient information for the operator.
In split screens consisting of up to four displays, the active display
is indicated by a solid red frame. Use the [WIN] key to clockwise
toggle between which display on the screen is active. Only active
displays are operable.
The [PAGE] key differs from the other function keys. There are four
pages under the [PAGE] key which can be set up to the presentation
you prefer by exchanging an existing display in the PAGE system
with a new one selected from a function key or via the menu - see
next page. Single press on the [PAGE] key will toggle between the
active pages under the function keys e.g.:
CX34/44/54 Operator manual
