Chapter 3-24 Radar menu
3.2.8 Dual radar display
MENU
Call up the menu bar, and...
1,2
load the Dual Radar display

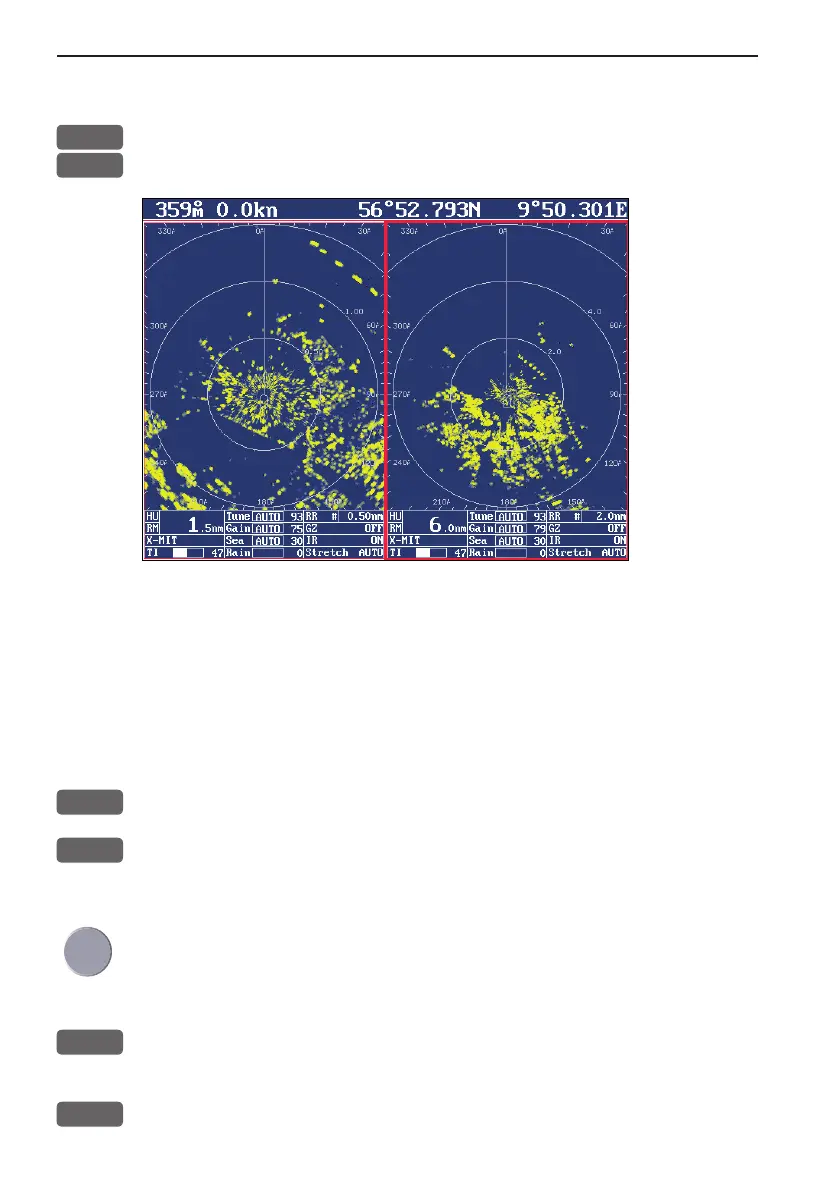

Standard radar display Secondary radar display
This feature requires a full-screen presentation, with the standard
display in the left half of the screen and the secondary radar display
in the right half of the screen. The two half-screen radar displays can
be set up and operated independently.
To make adjustments in the standard radar display (left half screen),
the window must be active:
WIN
Toggle between active windows on screen
ADJ
Open for adjustment
- by pressing [ADJ] again will toggle between 1st and 2nd half of
control menu.
Use the cursor to move around in the control menu
- and toggle between available values with the +/- keys, and insert
data by the numeric keys.
ENT
Confirm changes by pressing [ENT] or [MENU]
To make adjustments in the secondary radar display:
WIN
Make the secondary radar display active
CX34/44/54 Operator manual
