Echo menu Chapter 5-3

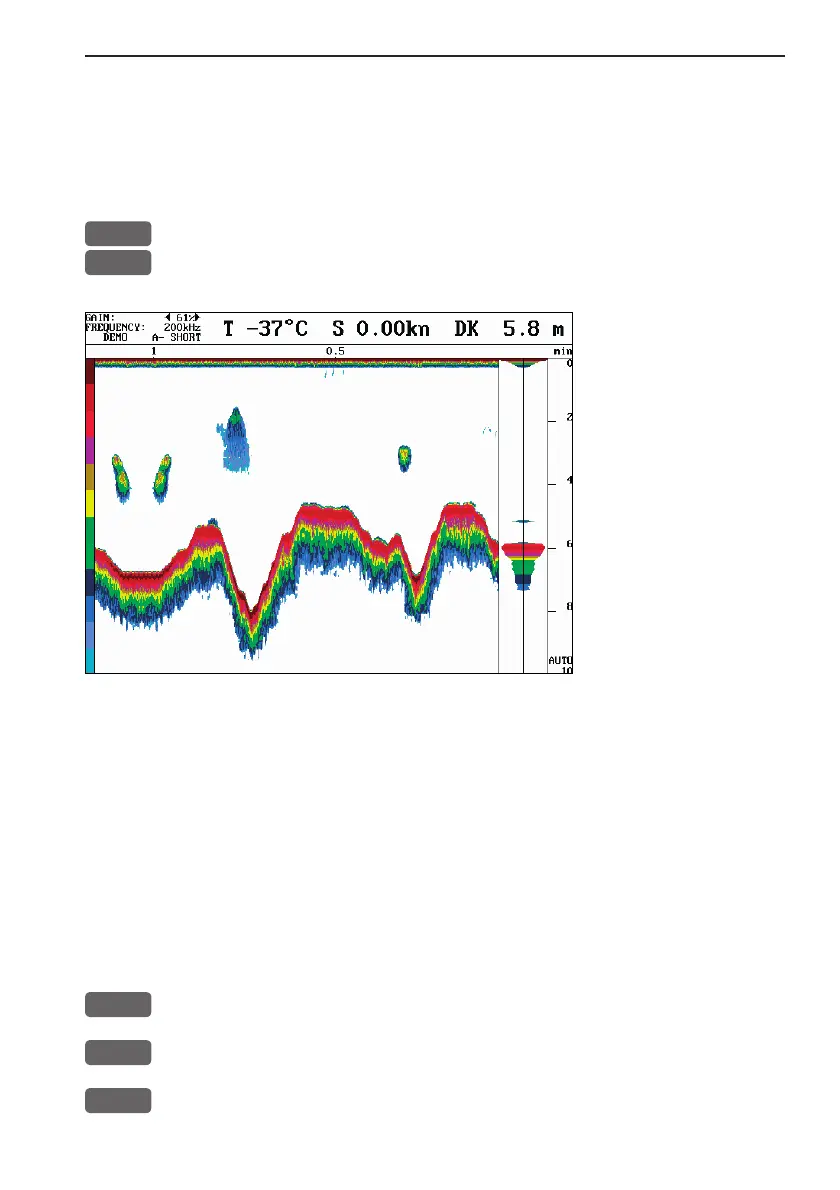

5.3 Standard echo display
This is the basic presentation mode (standard display) for observing
fish schools and sea bed. Some surface noise may appear just below
the transmission line.
To access one of the displays via the menu e.g.:
MENU
Call up the menu bar, and...
3,2
press [3] and [2] to call up the Echo display for 200kHz in full
screen
Transmission line.
Time scale.
Depth range is adjust-
able with +/- keys or
the Quick-range keys
1-9.
Press key 0 to return
to Auto range.
The data field is preset to show: Gain level, Frequency, Transmit
Pulse length A- SHORT (set to AUTO), Transmit Power A- 10W
(set to AUTO) - see section 5.7.
Water temperature T in Celcius or Fahrenheit (in 1/10 degrees),
water or SOG speed S in knots or kilometers/hour or miles/hour,
actual depth *DK - units can be changed in Setup for units
(MENU,7,1).
*) Actual depth i.e. Depth below Keel/Surface/Transducer - settings
can be changed in Echosounder setup (MENU,7,ECHO).
1-9
Select range in 9 steps
+/-
Adjust range with the + and - keys
0
Activate Auto range
CX34/44/54 Operator manual
