Simrad EQ42 User Manual

EQ42/50/52 Installation and service Chapter 9
51

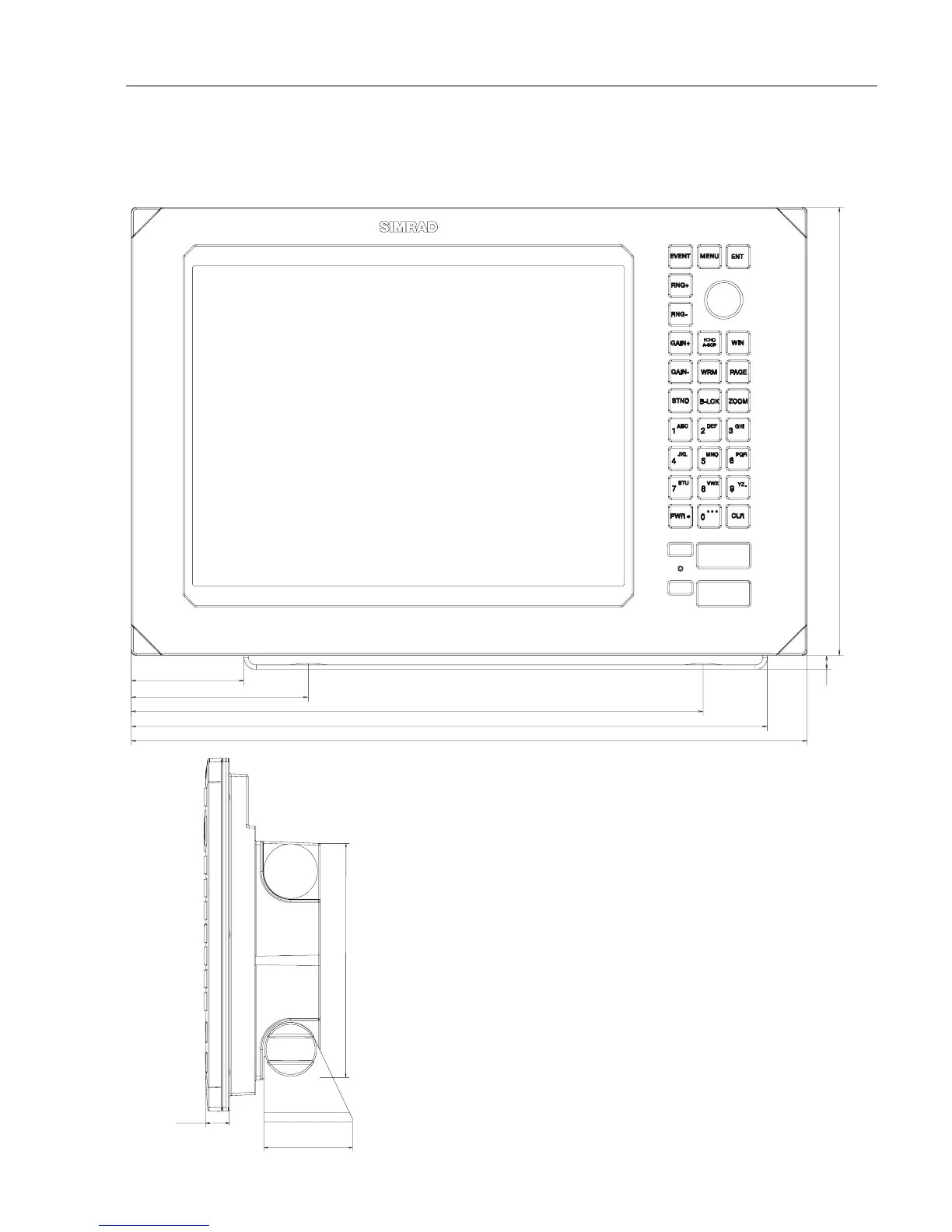

9.3 Installation of EQ52 Echosounder
The EQ52 can be flat or bracket mounted – overhead*, bulkhead* or console.
* Overhead and bulkhead mounting
is only possible if using a distance
piece.
20 (0.8)
196 (7.7)
75 (3.0)
88.8 (3.5)
131.6 (5.2)
391.6 (15.4)
433.9 (17)
460 (18.1)
9.2
(
0.4
)
330 (13)
