EQ42/50/52 Installation and service Chapter 9
60
9.7.1 Transducers (optional)
Simrad Combi-transducers C50/200 or C38/200
>File:50200.cdr<

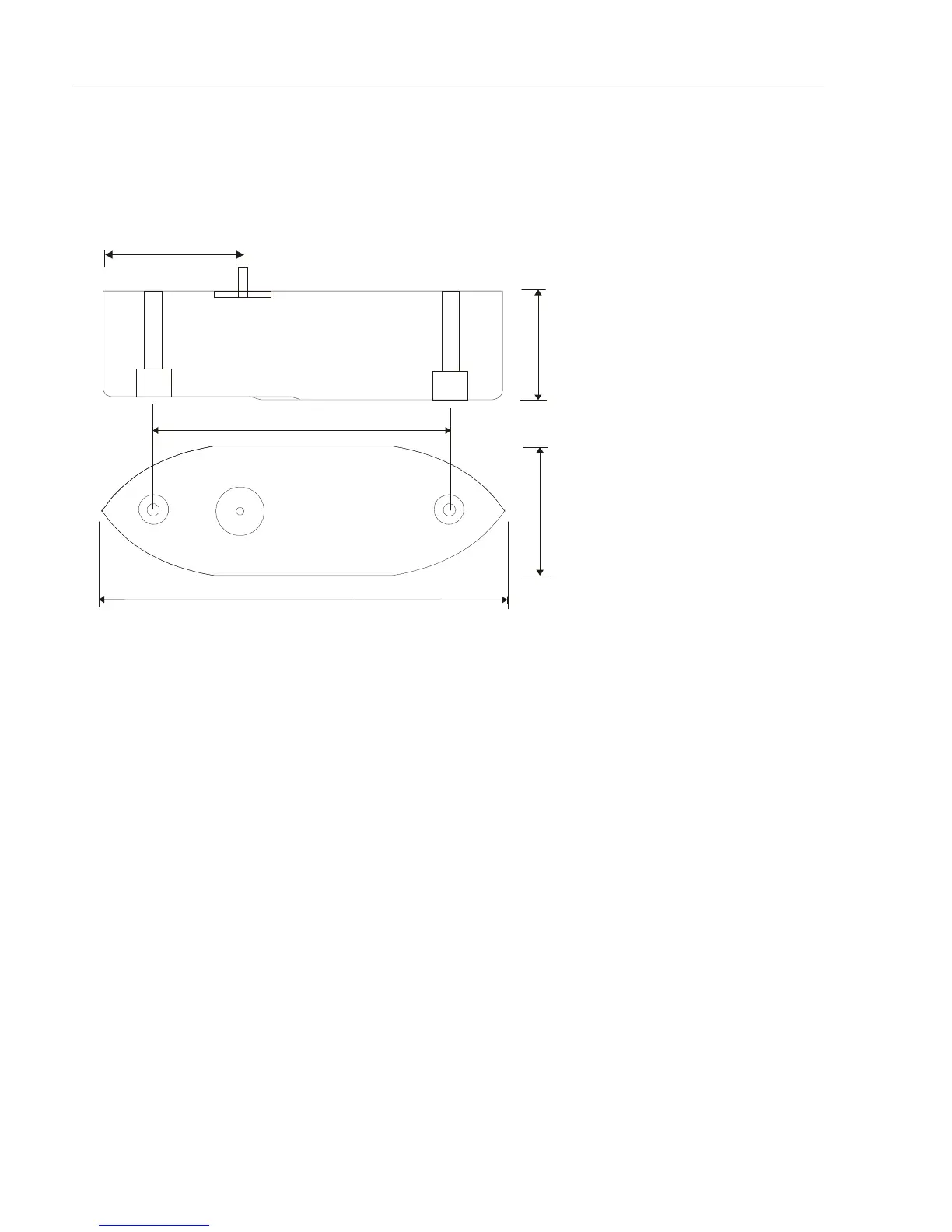

Combi C50/200 or C38/200 combines two transducers and a temperature sensor
in one housing. It has a streamlined shape, designed for mounting onto the hull.
Frequency: 50 and 200 kHz 38 and 200 kHz
Beamwidth: longitudinal 10° /7° longitudinal 13°/7°
transverse 16° /7° transverse 21° /7°
Maximum pulse
power input: 1000 W 1000 W
Maximum continuous
power input: 10 W 10 W
Storage temperature: max.70°C, min. –20°C max.70°C, min.–20°C
Cable length: 10m (32’) 10m (32’)
Maximum transducer depth: 20 meters 20 meters
Reference No. Reference No.
700.3000 700.3001
400
310
92
135
124.5
