2.1 Fundamentals of the PAGE and WINdow system
The EQXX Echosounder has a multi-function screen data presentation
system. You can choose to have a full screen, or a screen divided into
e.g. an echo display and two data/echo displays, etc.
The display which is currently activated is indicated by a highlighted

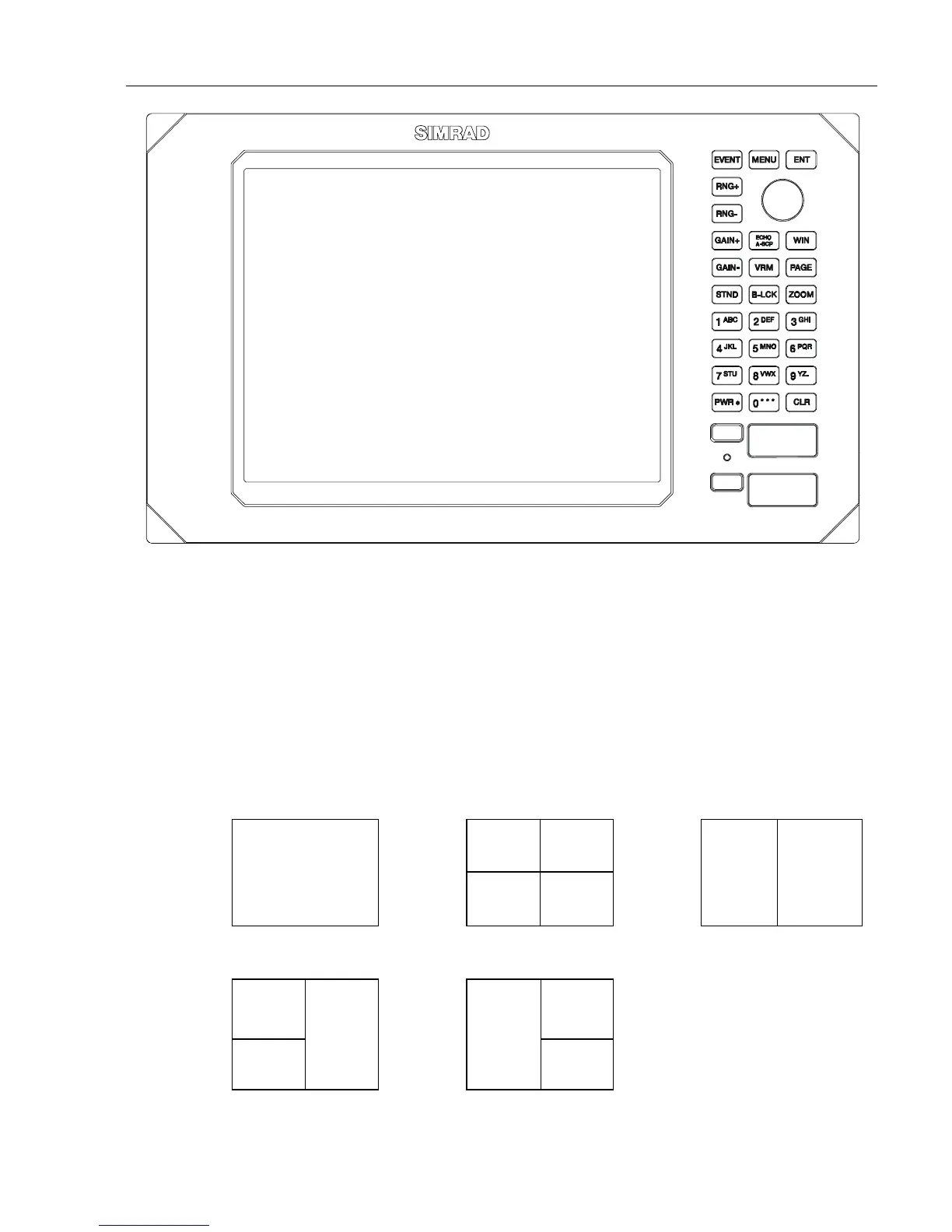

frame around the active window. There are five screen combinations to
choose from:
12
WINdow 0
43
56
1. Full (1/1) screen. 2. Four ¼ displays. 3. Two ½ displays.
12
4
65
3
4. & 5. Combination displays of one ½ and two ¼ displays.
) WINdows 5 and 6 are dedicated for echo displays and related setup.
