9.4 Place of installation of display unit
The display unit can be installed on desktop, wall surface, or ceiling. Determine
the place to install the display unit that is convenient for navigation and general
operation after considering the following suggestions:
- a place where you can see the ship’s bow when you raise your eyes from the
display.
- a place where there is limited exposure to direct sunlight – see environment
temperature limits in 9.11 Specifications.
- a place where there is good ventilation and minimum vibration.
- a place where the minimum distance to a magnetic compass is 500mm (20”).
9.5 Installation of Dual Station DS40/42/50/52
The DS models are remote control units for the EQXX Echosounder.
The units with the same model numbers are identical in size e.g. DS42 and
EQ42, so the same installation guides can be used when performing the
installation. When choosing a dual station, the unit does not have to match the
main unit in size, as all the mentioned units are compatible.

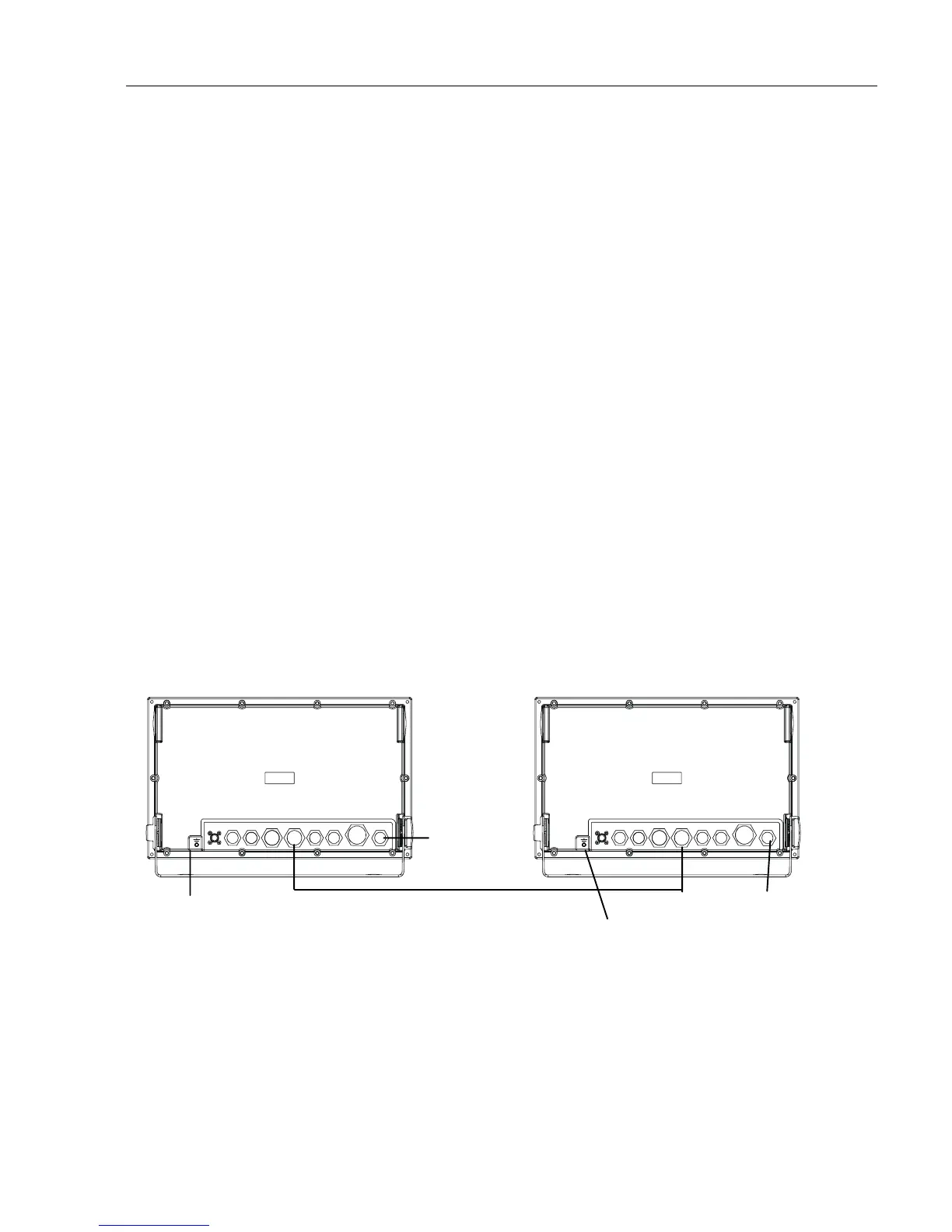

EQXX DS40/42/50/52
Power
Ground 15 meters of cable (not extendable) Power
Ground
A special connection cable of 15 meters with two male plugs is supplied with the
dual station. Push one of the male plugs into the socket marked NMEA1 on the
back of the main unit and the second into the dual station. The NMEA1 interface
from the main unit is transferred to the dual station via the connection cable and
is available on the dual station’s NMEA2 receptacle.
) Refer to section 9.6 for details on pin numbers.
ANT WIND ALAR M NM EA2 NMEA1 E CHO1 E CHO2 R ADAR PW R ANT WIND AL ARM NMEA2 NM E A1 ECHO1 E CHO2 R ADAR PW R
