EQ42/50/52 Installation and service Chapter 9
57
Transducer connections:
>File: 4050trd.doc<
! Warning!
Transducers containing speed log sensor e.g. Airmar B744V must never be
connected to the port “ECHO2”. To avoid accidental connection, “ECHO2” is
sealed with a small silicone plug, which of course is removable so e.g. a combi
transducer can be connected.

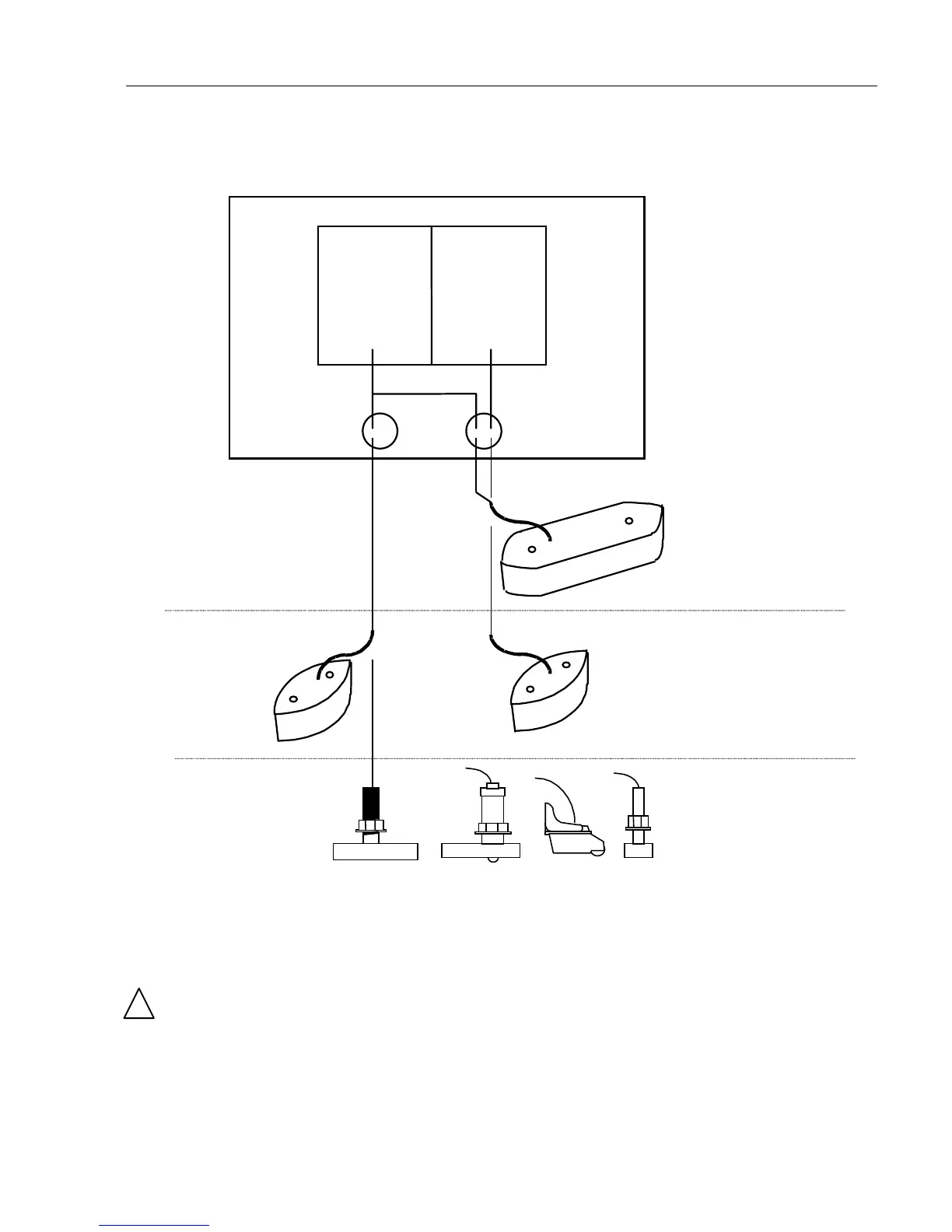

Transceiver
1
50/200 kHz
Transceiver
2
38/200 kHz
ECHO1 ECHO2
EQ40/50 internal connections
Single frequency
38 or 200 kHz
Single frequency
50 or 200 kHz
Two frequency
50/200 kHz
Combi transducer
38 and 200, or
50 and 200 kHz
To Next Page
