Simrad GN33 User Manual

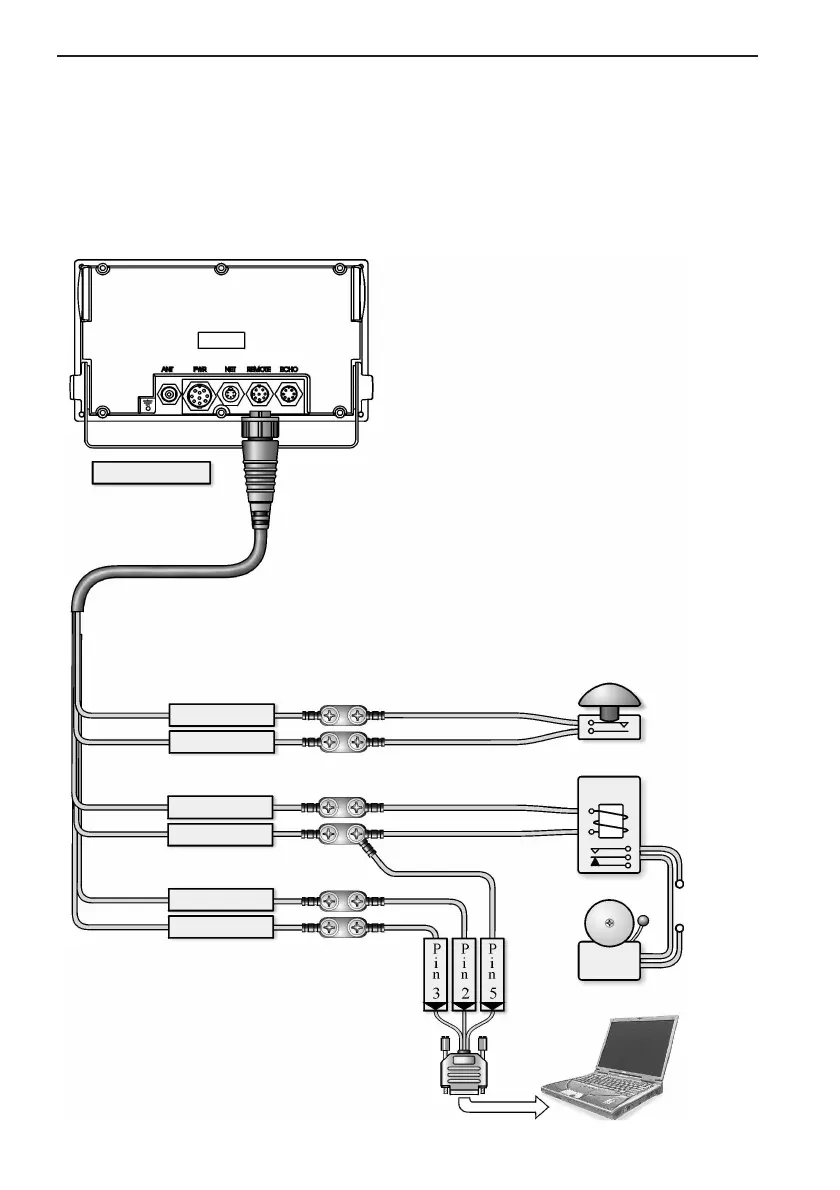

← 2 m →
Alarm/data cable
153-6070-001
Purple
Blue/white dot
Pink/black dot
Purple/black dot
Blue/yellow dot
Function
switch
5V/50mA Relay
Supply
Alarm
PC
9 pin Female
Sub-D connector
Pink
GN33
Chapter 10-8 GN33 Installation and service
10.6 Optional connections
10.6.1 External alarm, function switch and data transfer
The REMOTE connector includes connections for the external alarm, func-
tion switch and data transfer to/from PC. Refer to section 10.5 and 10.5.4.
