GN33 Echo menu Chapter 7-1
7. Echo menu
5
ECHO
1
Depth & temperature diagram
7.1 Depth & temperature diagram

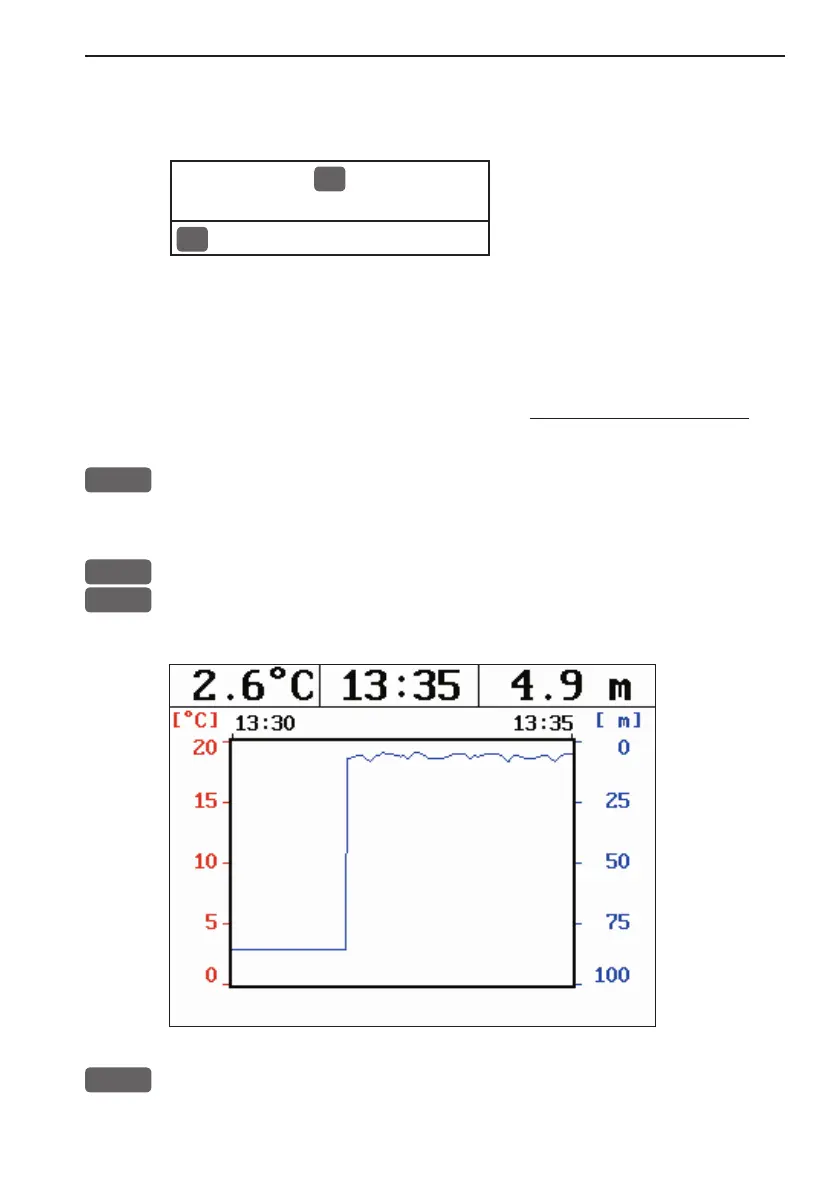

The depth and temperature “instrument” provides a graphical pres-
entation of depth and water temperature from external equipment
in
relation to time or distance.
ECHO
Hotkey to Depth & temperature diagram i.e. jumps to page with
actual display; if none: inserts the last active Depth & temperature
diagram in active page, or select via menu:
MENU
Call up the menu bar, and...
5,6
activate Depth & temperature diagram
Present water
temperature
and depth.
Depth over
time or dis-
tance.
Temper at u r e
over time or
distance.
ENT
Call Setup for Depth
-see display example next page.
To Next Page
