Simrad GN33 User Manual

Purple/black
Purple
Grey
Grey
Green
Green
Alarm
Alarm
5V 50mA 200 pulses/nm
GN33
← 2 m →
Alarm/log cable
153-6070-005
Max.
24V/0.5A
Max.
24V/0.5A
Chapter 10-10 GN33 Installation and service
10.6.3 External alarm and log connections

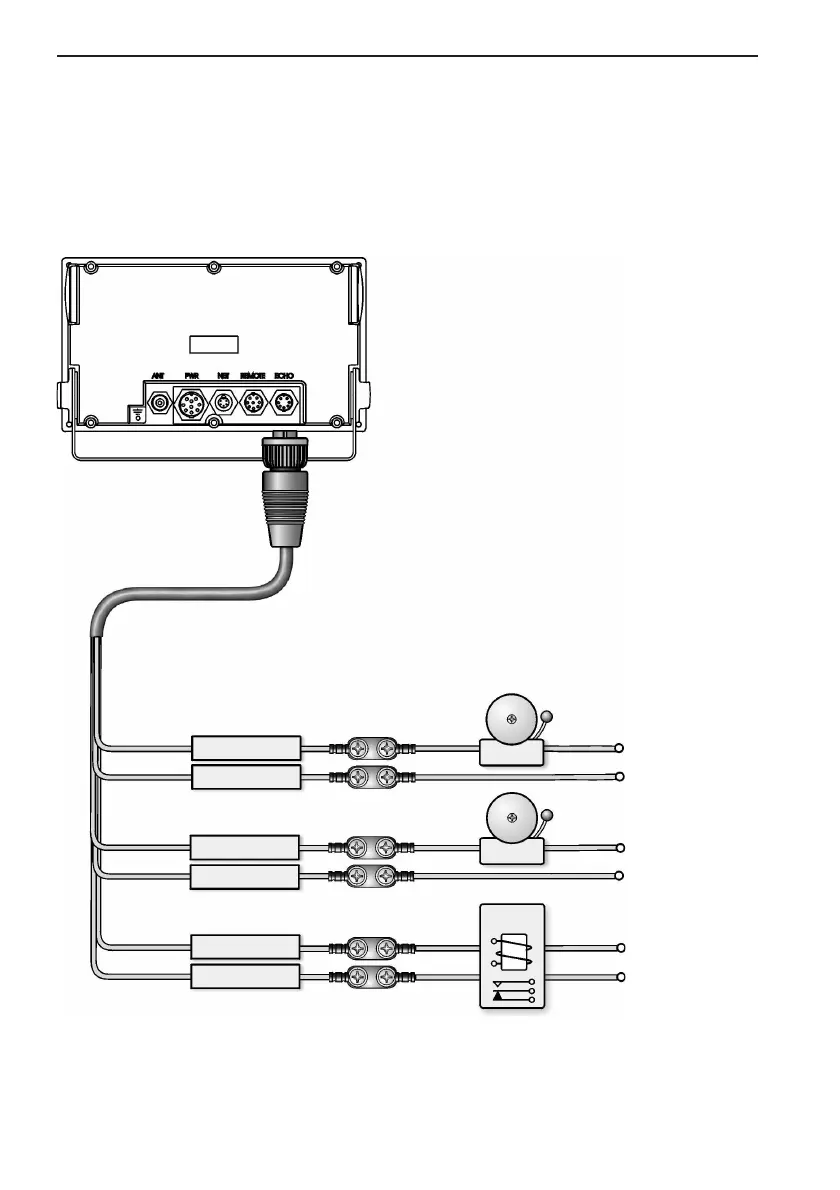

The port marked ECHO features two alarm relay output, alarm for missing
position update and general navigational alarm. Further, there is a log output
with 200 pulses per nm (5V 50mA).
