Chapter 4-10 GN33 Position menu
Position update alarm
“Alarm” in the satellite status display is preset to “ON” to initiate a
warning when there is no position update. Reset the alarm by [CLR].
If the received position data is invalid, the position shown in the posi-
tion display will start to flash. The position update alarm can be set
ON/OFF from the satellite status display [MENU],[2],[5]:
ENT
Open for change
Go to “Alarm”
+/-
Toggle alarm ON/OFF
ENT
Confirm entry
HDOP, PDOP and DOP limits

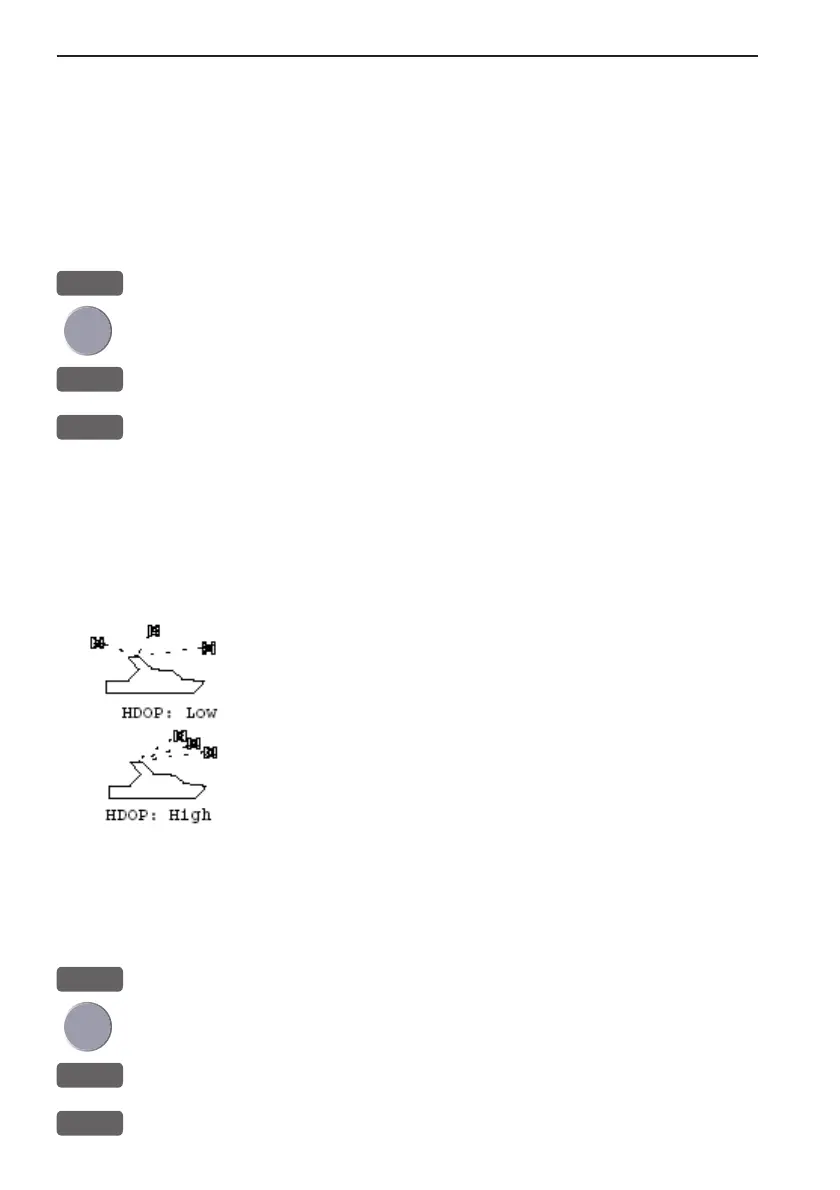

The value of HDOP (horizontal dilution of precision) expresses “the
quality” of the satellite geometry in relation to 2D positioning and a
fixed antenna altitude.
PDOP (position dilution of precision) is equivalent to 3D
positioning. The values will typically stay between 1.3
and 8. The lower the value the higher the “quality”. A
poor geometry might produce a value of more than 20.
If preset DOP limit is exceeded (indicated by * in the
position display) it will cause the position updating to
stop until it once again is within the limit. The DOP limit
can be changed manually, but should not be set to higher
than 8 (default), as this may result in poor accuracy i.e.
false position.
To change the DOP limit from the satellite status display [MENU],
[2], [5] :
ENT
Open for change
Go to DOP limit (6-20), and...
0-9
Insert new limit
ENT
Confirm entry
To Next Page
