6 Power button
Select to display the System Controls dialog.
Press and hold to turn the system off.
Application pages
Each application connected to the system is presented on panels. The application can be
presented as a full page, or in combination with other panels in a multiple panel page.
All application pages are accessed from the Home page.

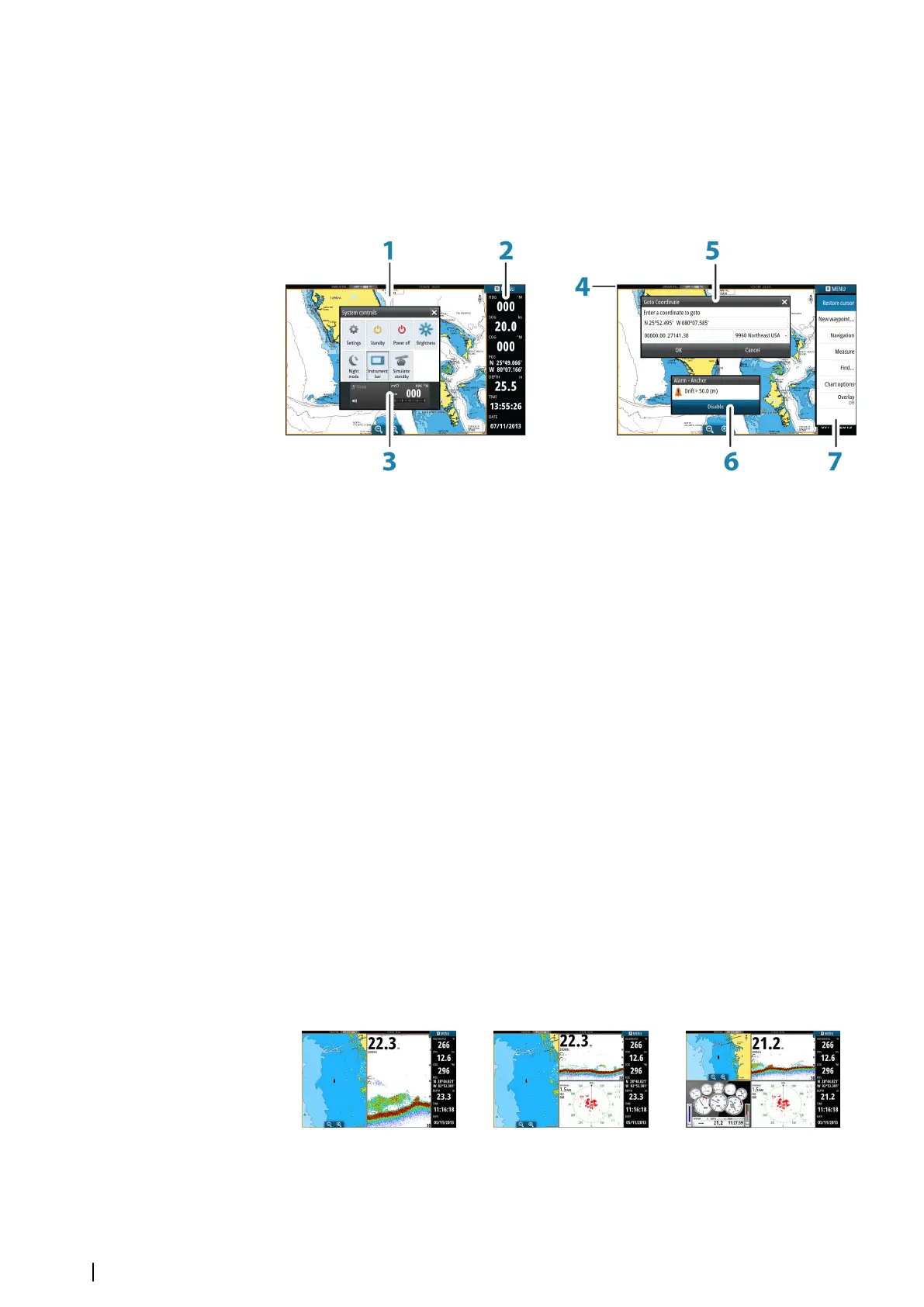

1 Application panel
2 Instrument bar
Navigation and sensor information. The bar can be turned off and it can be
configured by the user.
3 System controls dialog
Quick access to basic system settings.
Display the dialog by a short press on the Power key or by swiping down from top
of the screen.
4 Status bar
5 Dialog
Information to or input from the user.
6 Alarm message
Displayed if dangerous situations or system faults occur.
7 Menu
Panel specific menu.
Display the menu by selecting the MENU panel button, or by pressing the MENU
key on a remote controller.
Split pages
You can have up to 4 panels on each page.
2 panels page 3 panels page 4 panels page
Panel sizes in a split page can be adjusted from the System Controls dialog.
Ú
Note: Mercury features, if enabled, do not allow split pages.
