StructureScan
StructureScan uses high frequencies to provide a high resolution, picture-like image of the
seabed.
Ú
Note: You must have a StructureScan HD, TotalScan or StructureScan 3D transducer
installed to use StructureScan features.
StructureScan provides a wide coverage in high detail with SideScan, while DownScan
provides detailed images of structure and fish directly below your boat. The StructureScan
page is accessed from the Home page when the transducer is connected.
Ú
Note: StructureScan 3D is also supported. StructureScan 3D is a multi-beam sonar
technology that allows anglers to see underwater structure and bottom contours in
customizable, three-dimensional views. For more information about StructureScan 3D,
refer to the separate StructureScan 3D documentation.

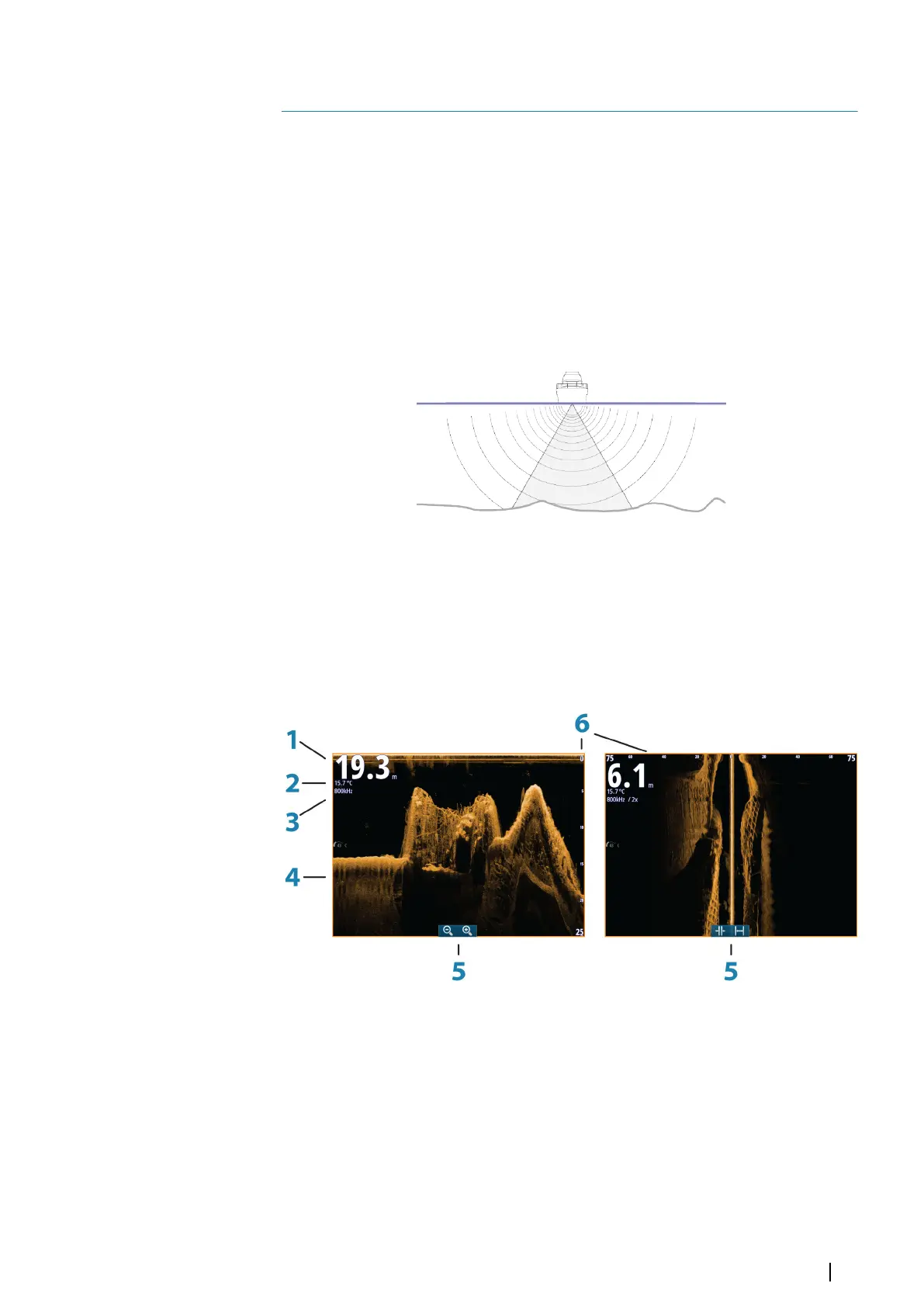

The StructureScan image
The view
The StructureScan panel can be set up as a DownScan image, or showing left/right side
scanning.
The DownScan image can also be added as an overlay to the traditional Echosounder image.
1 Depth
2 Temperature
3 Frequency
4 Bottom
5 Zoom (downscan) / Range (sidescan) icons
6 Range scale
11
StructureScan | NSO evo2 Operator Manual
85
