ForwardScan
ForwardScan sonar is a navigational aid that helps you monitor the underwater environment
in front of your vessel while carrying out slow speed maneuvers.
To use the ForwardScan feature you must have a ForwardScan transducer mounted on your
vessel. For installation instructions, refer to the ForwardScan transducer installation manual.
The ForwardScan transducer is connected to a SonarHub or an NSS evo2 on the network,
and shared over the Ethernet network.
Ú
Note: If you have both a sonar/CHIRP and a ForwardScan transducer connected to
different SonarHubs (or if one transducer is connected to another NSS evo2 shared on
the network), you can view both simultaneously on a single device.
Warning: Do not rely on this equipment as your principle source of
navigation or hazard detection.
Warning: Do not use this equipment to gauge depth or other conditions
for swimming or diving.

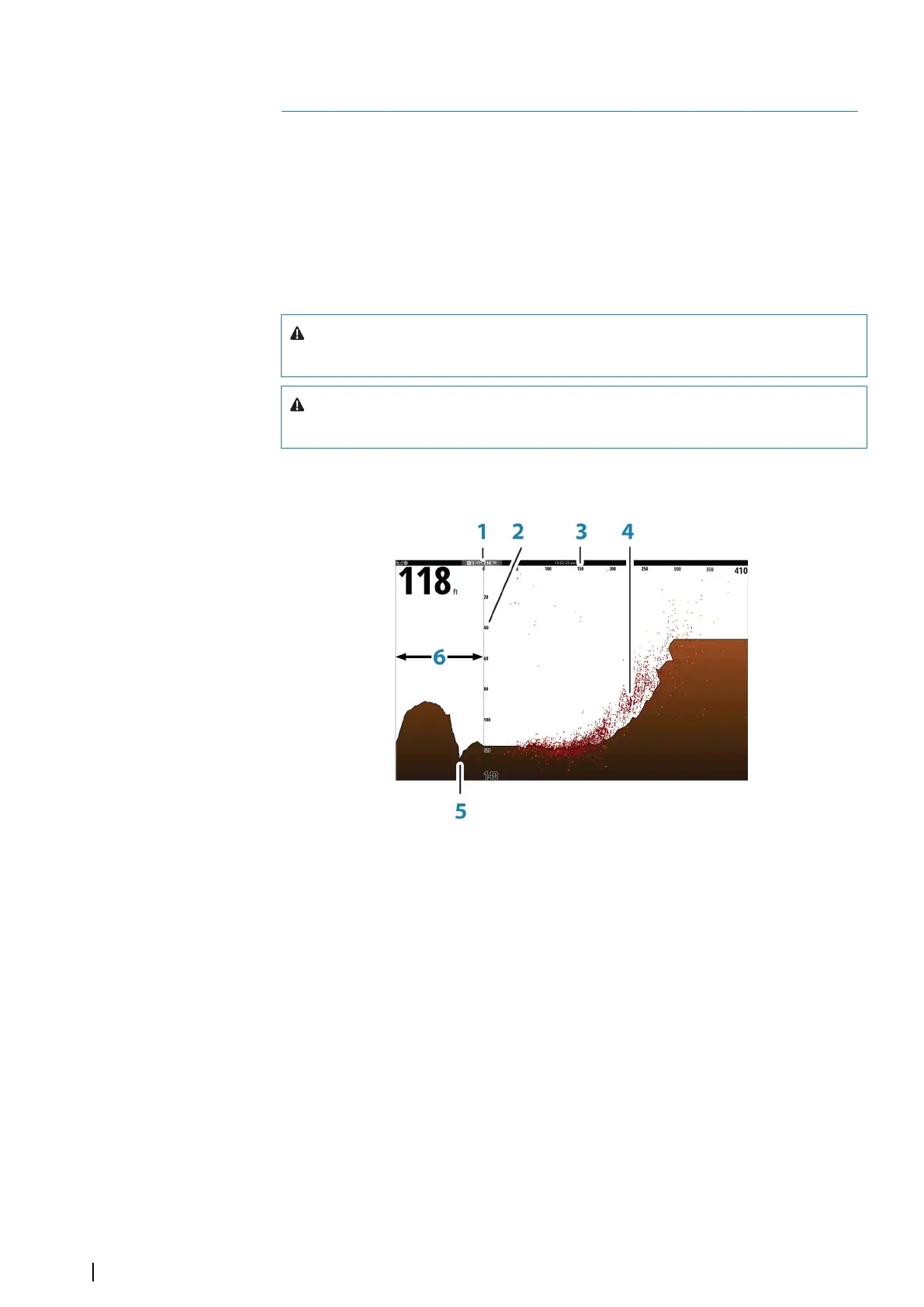

The ForwardScan image
1 Transducer location shown as the origin on the page
2 Depth range scale and vessel position
3 Forward range scale
4 Point data
5 Bottom
6 Depth history
13
92
ForwardScan | NSO evo2 Operator Manual
