2. You can reposition the measuring points by dragging either icon as long as the

measuring function is active

Note: The bearing is always measured from the grey icon to the blue icon.

You can also start the measuring function without an active cursor. Both measuring icons are

then initially located at the vessel position. The grey icon follows the vessel as the vessel

moves, while the blue icon remains at the position given when you activated the function.

You terminate the measuring function by selecting the Finish measuring menu option.

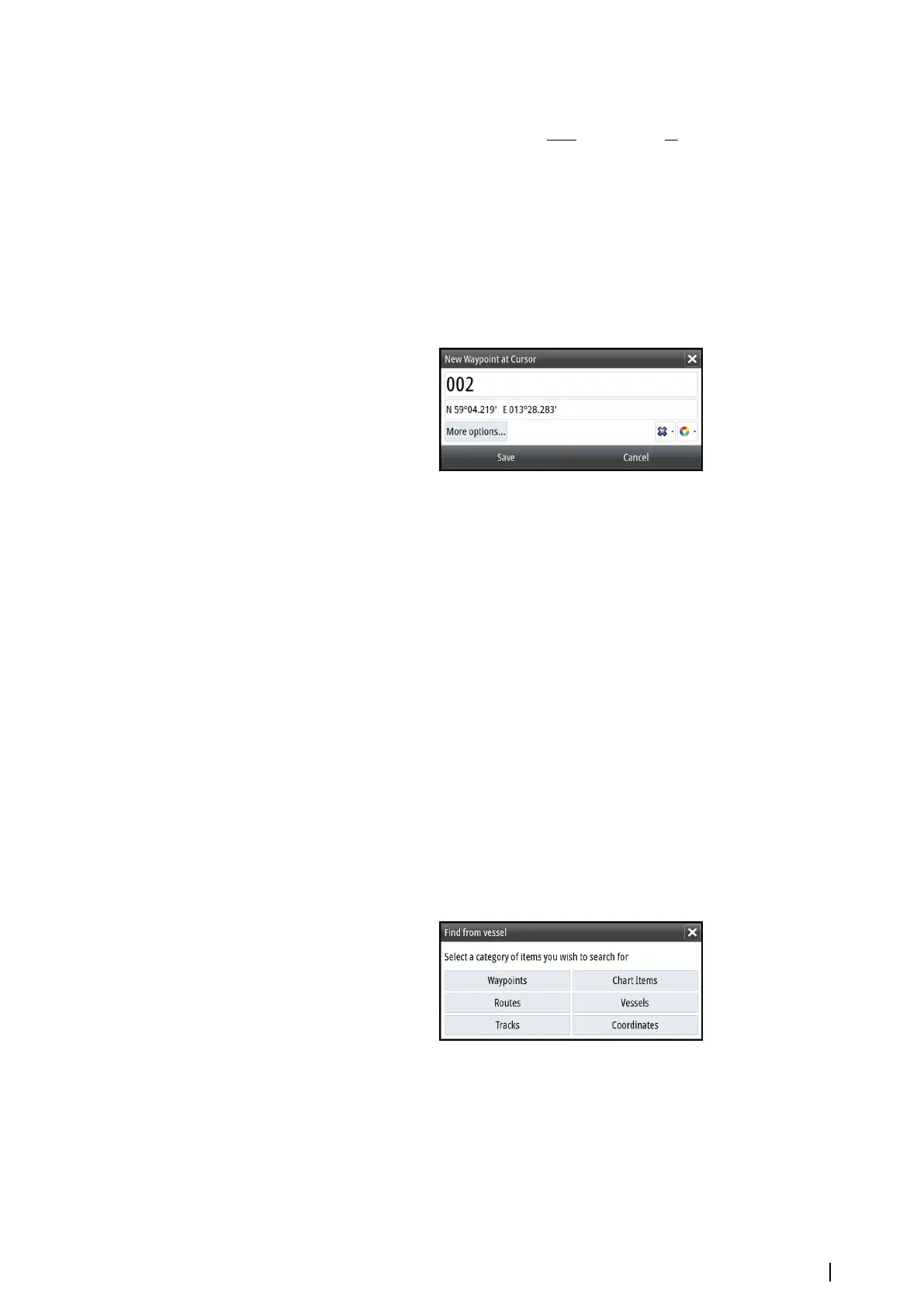

Saving waypoints

You can save a waypoint at a selected location by positioning the cursor on the panel, and

then selecting the new waypoint option in the menu.

In the Chart and Nav panels, you can save a waypoint at the vessel position, when the cursor

is not active, by selecting the new waypoint option in the menu.

Creating routes

You can create routes as follows on the chart panel.

1. Position the cursor on the chart panel

2. Select New followed by New route in the menu

3. Select the position for the first routepoint:

On touch screen: tap the chart panel

- Key operation: use the arrow key to select position, then confirm by pressing the Enter

key

4. Continue positioning the remaining routepoints

5. Save the route by selecting the save option in the menu.

Note: For more information, refer to "Waypoints, Routes, and Tracks" on page 39.

Find objects on chart panels

You can search for other vessels or various chart items from a chart panel.

Activate the cursor on the panel to search from the cursor position. If the cursor is not active,

the system searches for items from the vessel's position.

Note: You must have a SIRIUS data package subscription to search for fueling stations

and an AIS receiver connected to search for vessels.

3D charts

The 3D option provides a three dimensional graphical view of land and sea contours.

Note: All chart types work in 3D mode, but without 3D cartography for the appropriate

area the chart appears flat.

Charts | NSO evo2 Operator Manual

Simrad NSO evo2 User Manual

Other manuals for Simrad NSO evo2
