11 DATA DISPLAYS
11.1 General
The WR20 can display data from various sources on the network
simultaneously. The display is user configurable both in terms of
the type of data to be shown and also the number of lines of data in
the display (maximum of 4). If only 1 or 2 Data Items are to be
displayed, then the size of the displayed data is enlarged. The
units in which data is displayed are also selectable, please refer to
Section 4.2.2.
11.2 Display
After selecting “DataPages” from the product menu, the WR20
display will show a list of available pages (Fig. 11.1).
The pages are pre-configured at the factory however they can be
customised as required.
Using the
V or W keys, highlight the one you want to view and
press the
M
ENU or key to select it.
If there are more pages above those being displayed, then
V will be
shown in the top left corner of the LCD. If there are more pages
below those being displayed, then
W will be shown in the bottom
left corner of the LCD.
Once a page has been selected, the display will show the Simrad Group
data associated with that page. An example is shown in (Fig. 11.2).
To scroll to the next data page press the
V or W key.

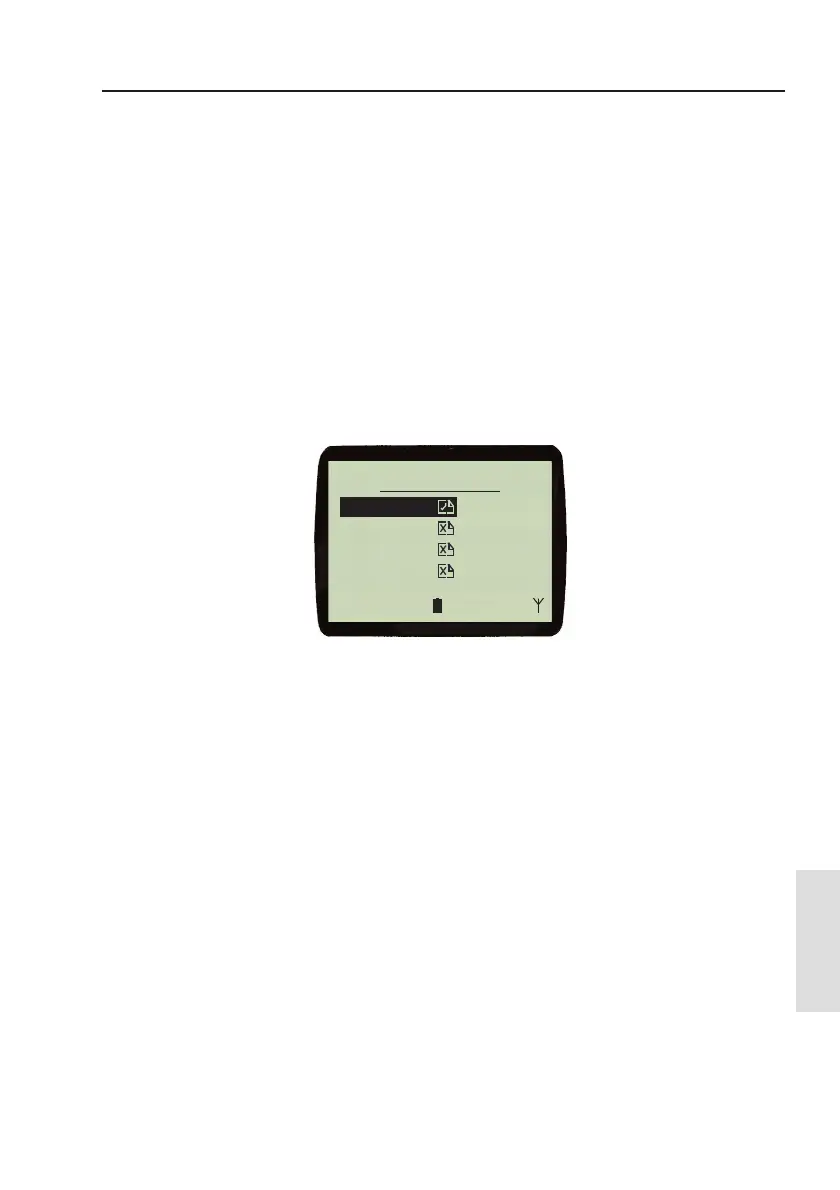

Fig. 11.1 - DataPages menu
W
V
bafq lkLlcc
a~í~m~ÖÉë
m~ÖÉ= O
m~ÖÉ= P
m~ÖÉ= Q
m~ÖÉ= R
To Next Page
