SERVICE MANUAL
10
I. Front Enclosure

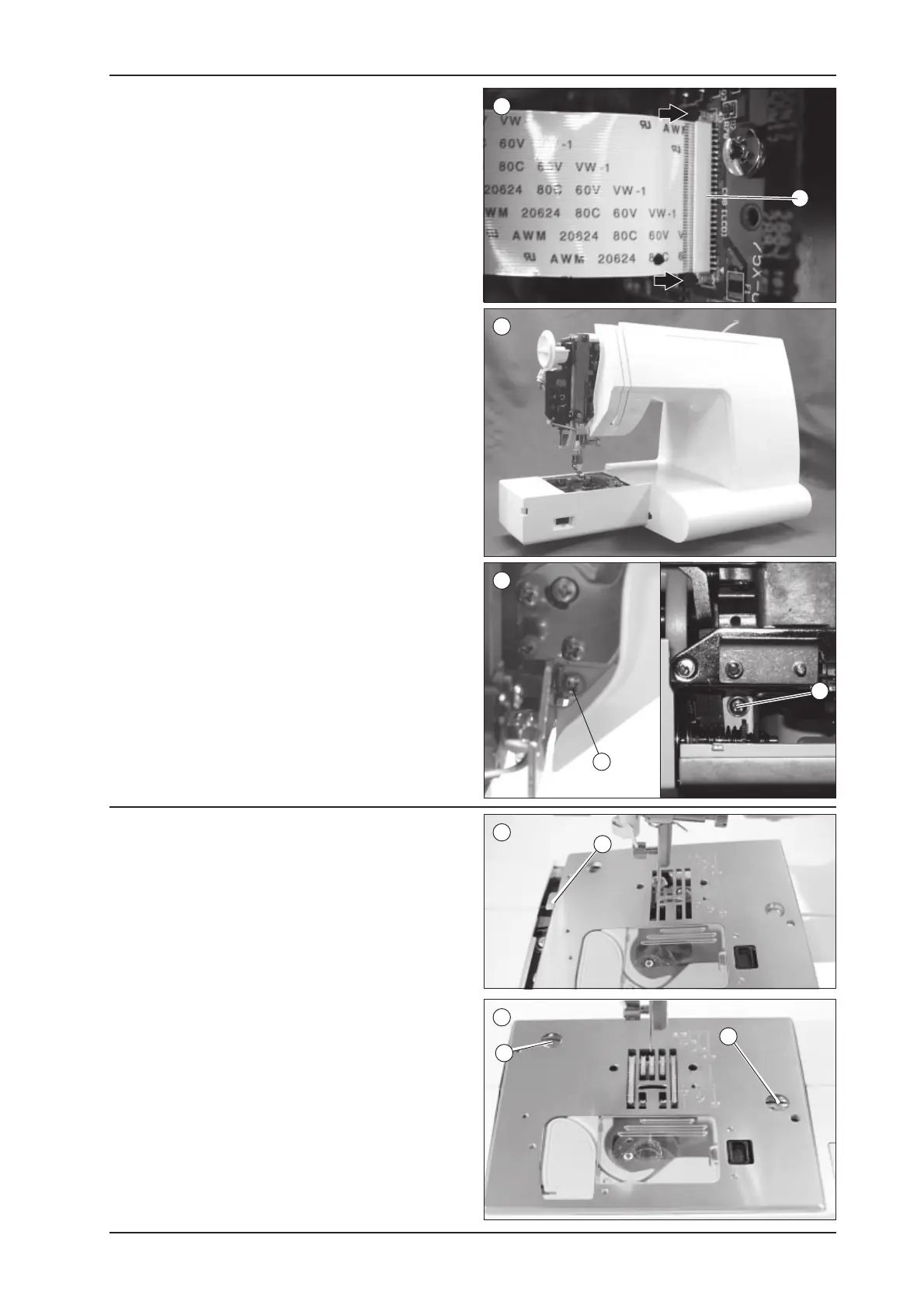

1. Insert the cable into the connector (h) until stop.
Push the both black part and lock the cable securely.
H. Needle Plate
1. Insert the hook (c) of needle plate to the machine.
2. Replace the front enclosure so that the 4 hooks will fit
in place.
3. Retighten the screw (a) and (b) with pushing the front
enclosure to the machine frame.
2. Retighten the screws (a, b).
1
h
2
3
a
2
a
b
1
c
b
To Next Page
