SERVICE MANUAL
7

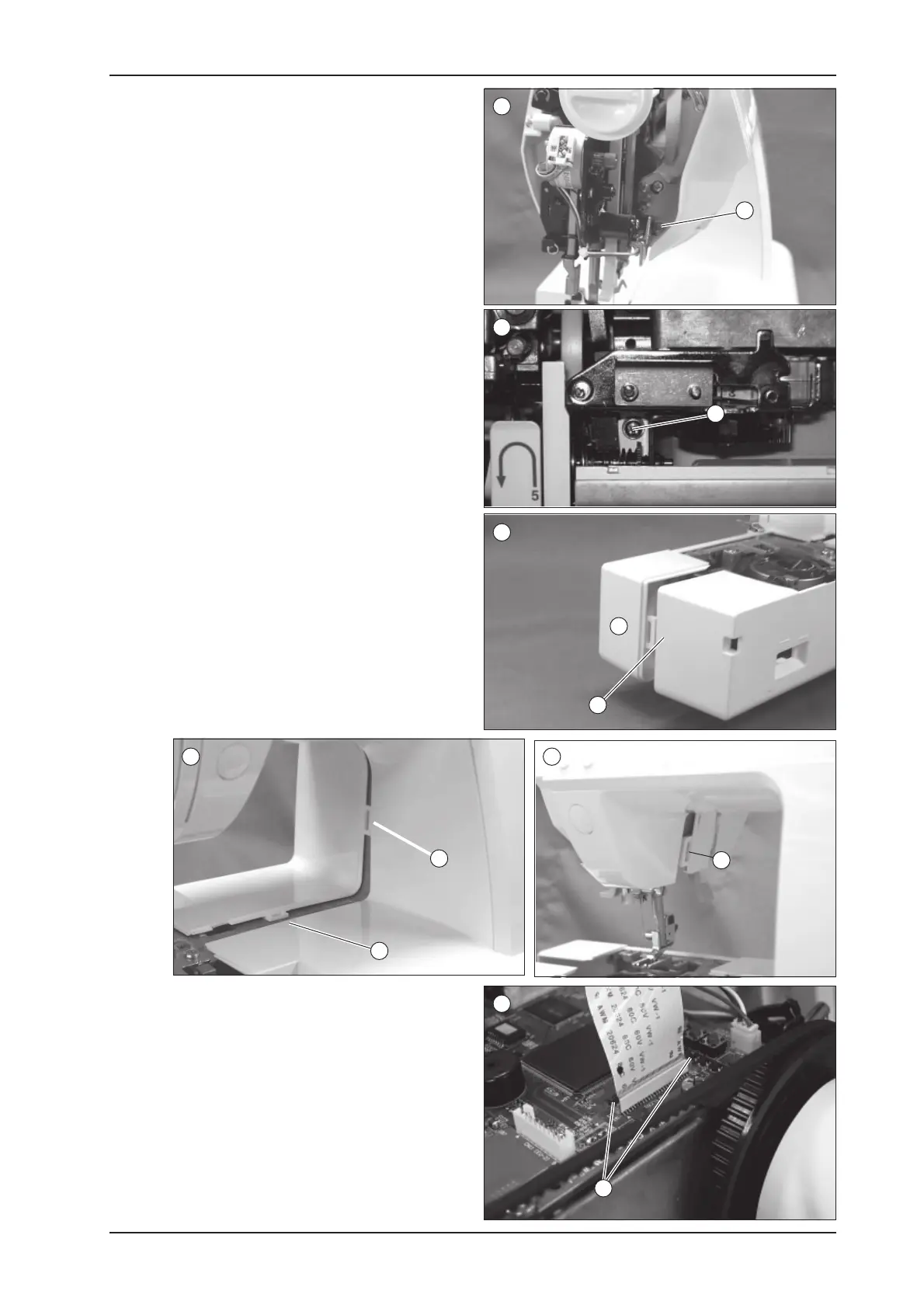

I. Front Enclosure
1. Loosen the screw (a).
2. Loosen the screw (b).
3. Tilt the machine backward.
Push the left side of rear enclosure (c) and pull the
front enclosure (hook-d will come off).
4. Pull up the front enclosure and come off the hook-e.
Pull the enclosure to the left and come off the hook-f.
1
3
a
c
d
4 5
e
f
2
6
b
5. Push the rear enclosure to the left and come off the
hook-g.
6. Pull the both black parts of connector (i) and pull the
cable.
Remove the front enclosure.
g
i
