Singer 9985 - Model 9985; Preface; For European and Similar Territories

SERVICE MANUAL
8

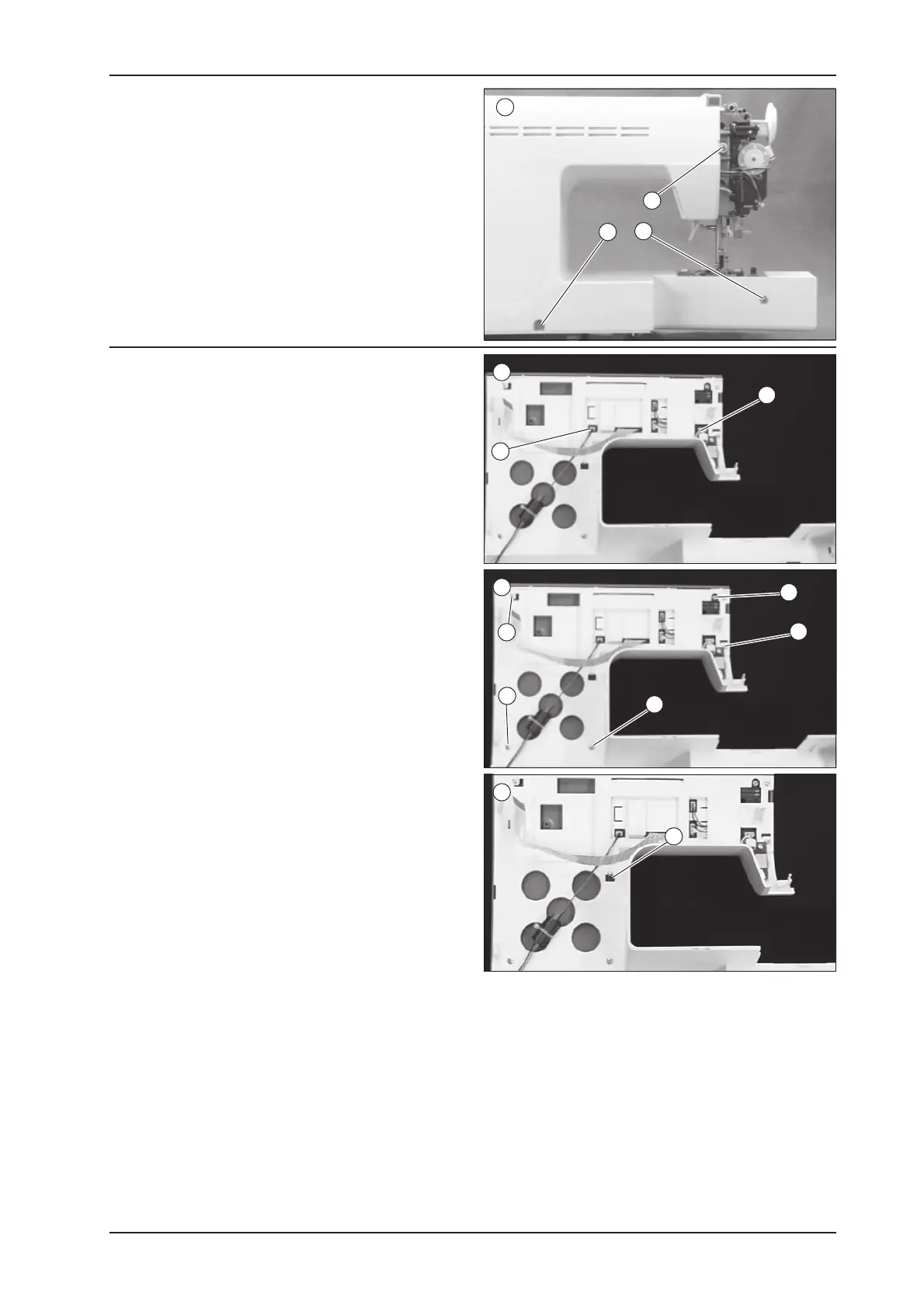

J. Rear Enclosure
1. Lower the presser foot lifter.
2. Remove the 3 screws (a, b, c).
(screw-c is longer than others.)
3. Pull the rear enclosure backward and remove it.
K. Front panel (from Front Enclosure)
1. Disconnect the 2 connectors from the front panel (a:
Start/Stop switch board) (b: Controller jack assy.)
3. Come off the hook (h) and pull up the front panel
backward and remove it.
2
c
b
a
1
b
a
3
2
2. Remove the 5 screws (c, d, e, f, g ).
c
d
g
e
f
h
