Singer 9985 - Replacing the Exterior Parts; Front Panel (to Front Enclosure); Rear Enclosure

SERVICE MANUAL
9
b
a
REPLACING THE EXTERIOR PARTS

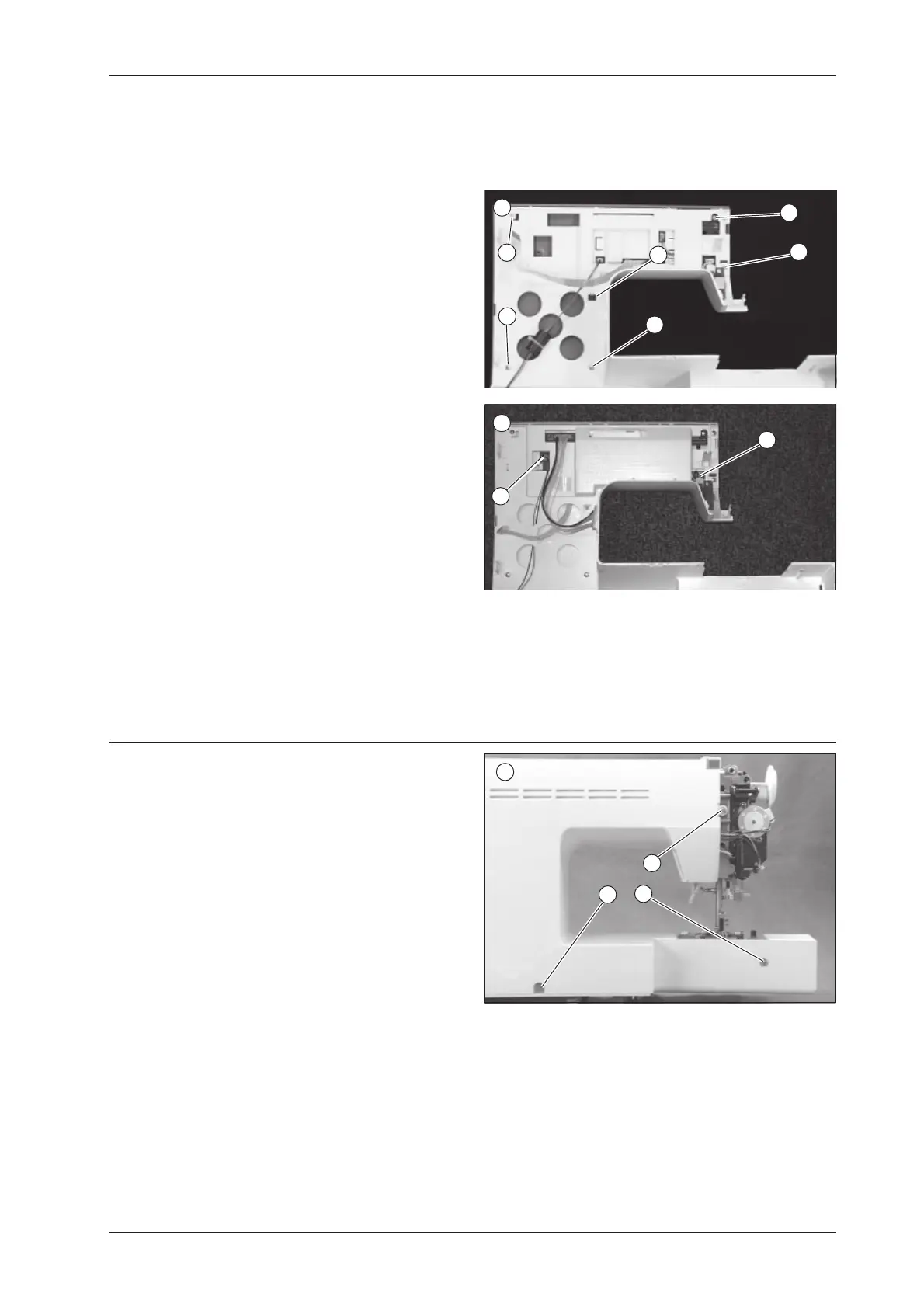

K. Front panel (to Front Enclosure)
1. Place front enclosure and fit the hook (h) and
retighten the 5 screws (c-g).
J. Rear Enclosure
1. Lower the presser foot lifter.
2. Replace the rear enclosure.
3. Retighten the 3 screws (a, b, c).
(Screw-c is longer than others and replace loosely.)
The exterior parts should be replaced in reverse se-
quence when removing. (K. to A.)
2. Connect the 2 connectors (a: Start/Stop switch board)
(b: Controller jack assy.)
