Singer 9985 - Handle and Unit Cover

SERVICE MANUAL
11
G. Handle and Unit Cover

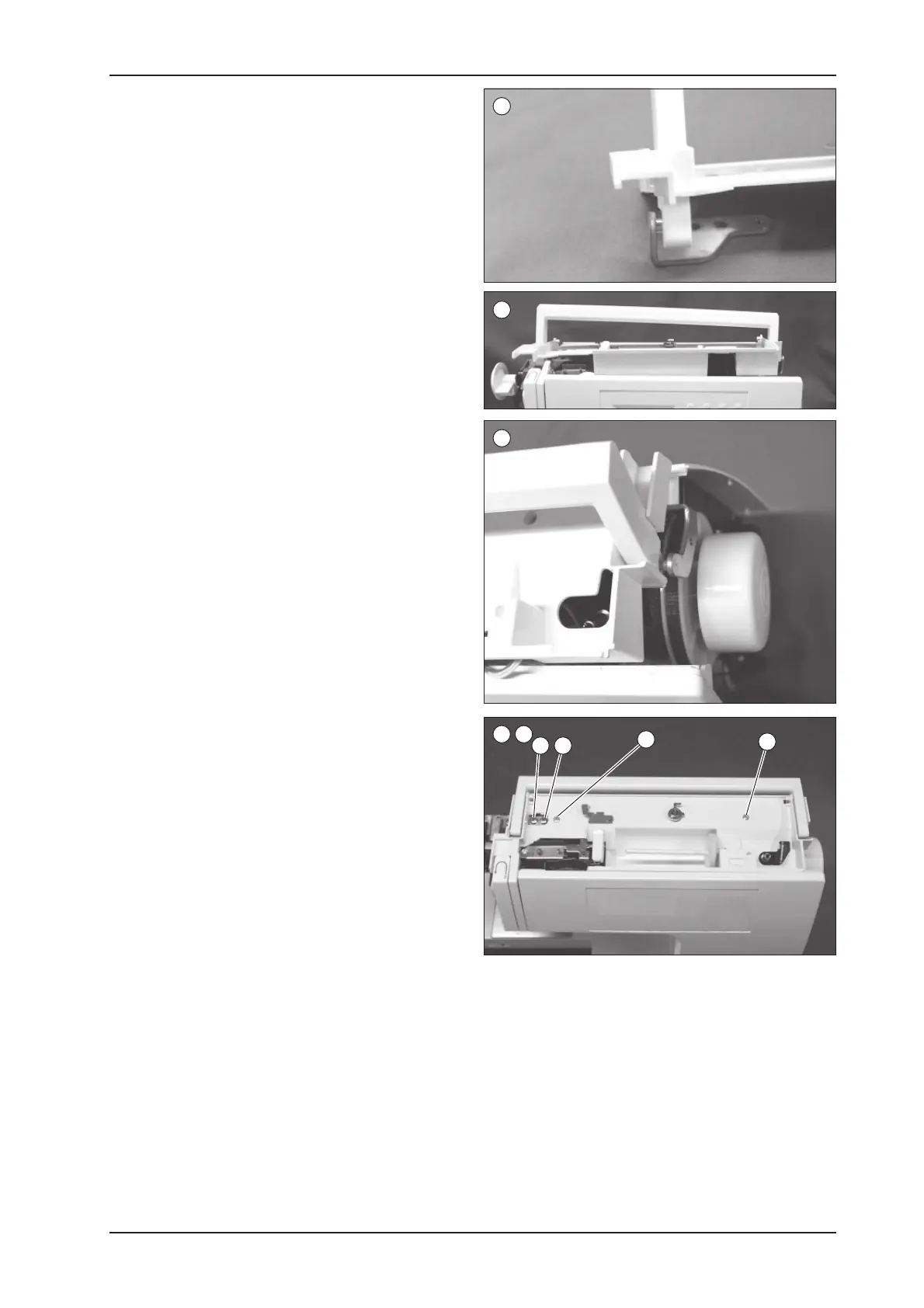

1. Set the handle to the unit cover and insert the handle
hinge pin into the left side hole of handle from left
side.
2. Place the handle and unit cover onto the top of
machine.
3. Insert the hinge pin on the machine into the right side
hole of handle.
4. Replace the unit cover so that the each hook fit into
place.
5. Retighten the handle set screws (c, d) and unit cover
set screws (a, b).
1
2
3
4
b
a
c d
5
