SERVICE MANUAL
18

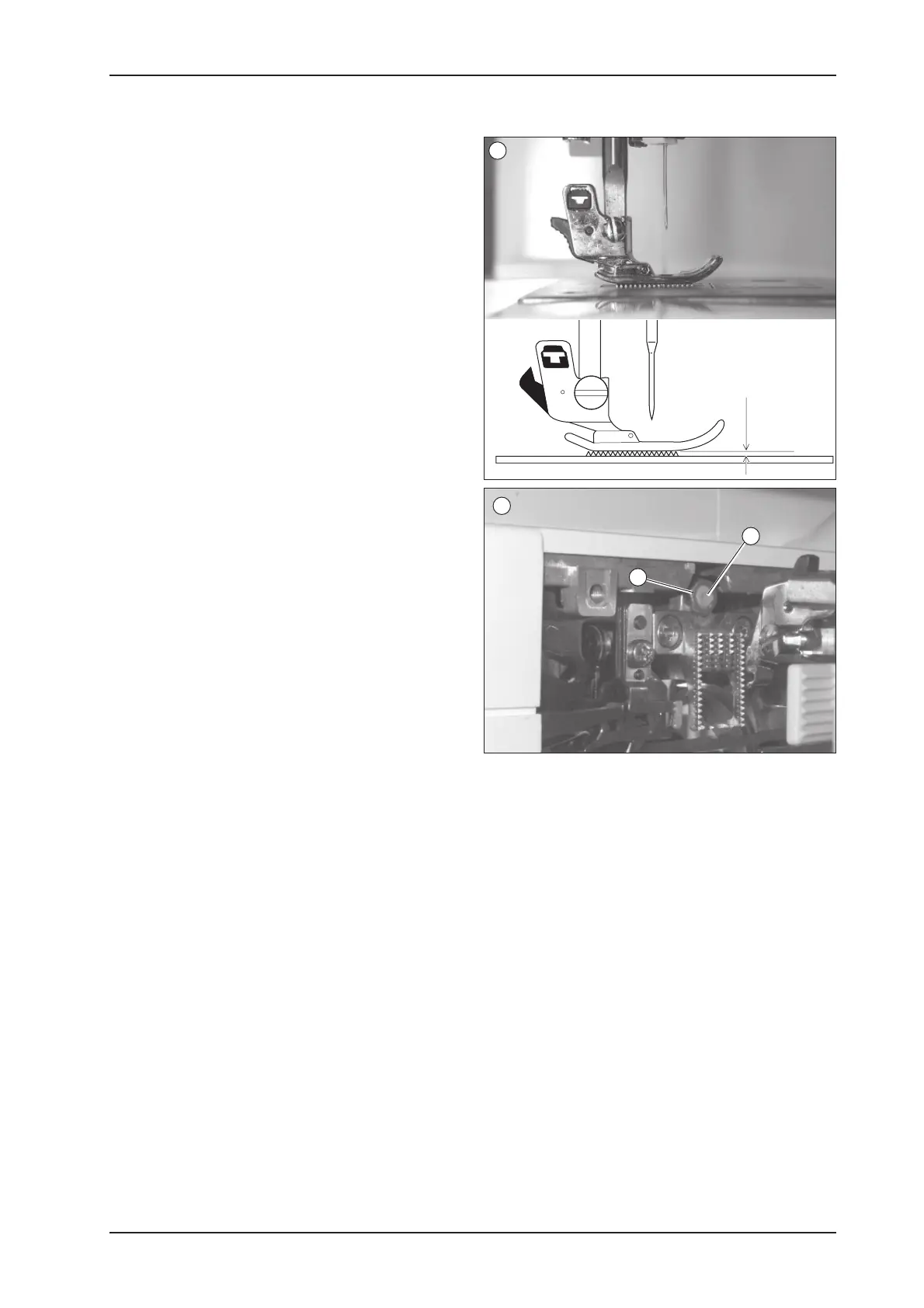

4. HEIGHT OF THE FEED DOG
If the feed dog does not come up over the needle plate
enough, it will result in insufficient and/or uneven feed of
fabrics.
1. The feed dog should come up over the needle plate
(1.2-1.3 mm) when its highest position.
If it does not come up enough, adjust as follows:
2. Remove the needle plate.
1
1.2-1.3 mm
3. Loosen the nut (a) behind the feed dog.
• If the feed dog is too low;
Turn the adjusting screw (b) (2.5mm hex. wrench)
clockwise.
• If the feed dog is too high;
Turn the screw (b) counterclockwise.
Re-tighten the nut (a) so that the screw (b) will not move.
4. Re-check the height of feed dog.
3
b
a
