Singer 9985 - Side Enclosure; Handle and Unit Cover

SERVICE MANUAL
5

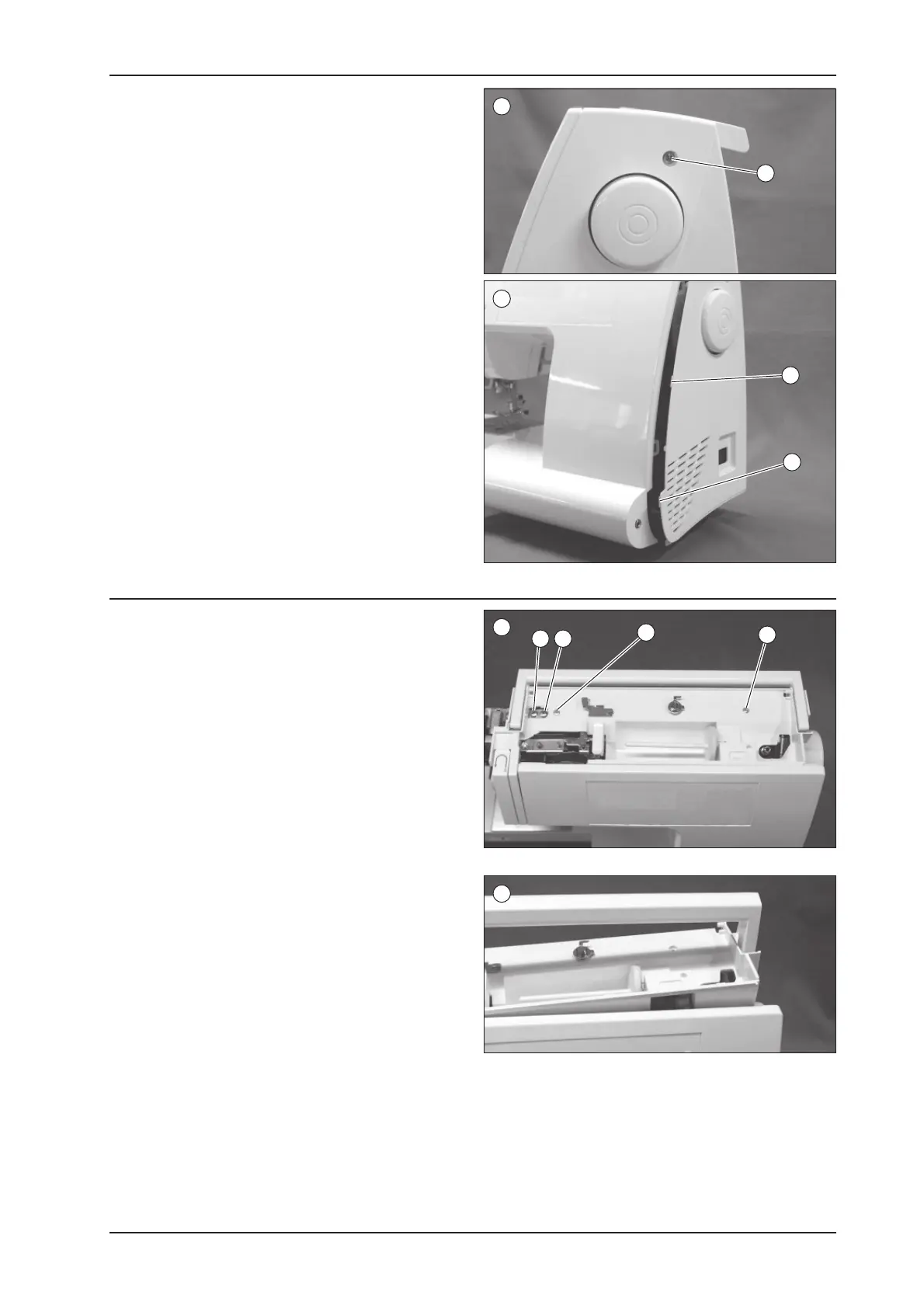

F. Side Enclosure
1. Remove the screw (a).
G. Handle and Unit Cover
1. Remove the unit cover set screws (a, b) and handle
set screws (c, d).
2. Stand up the handle.
2. Push the side enclosure slightly backward to come off
the 2 hooks (b, c).
3. Pull the side enclosure to the right and remove it.
1
a
2
b
c
3. Push and pull up the right side of unit cover backward
so that the hook of unit cover will come off.
1
b
a
c d
3
