Singer 9985 - Removing the Exterior Parts; Light Cover; Base

SERVICE MANUAL
3
REMOVING THE EXTERIOR PARTS

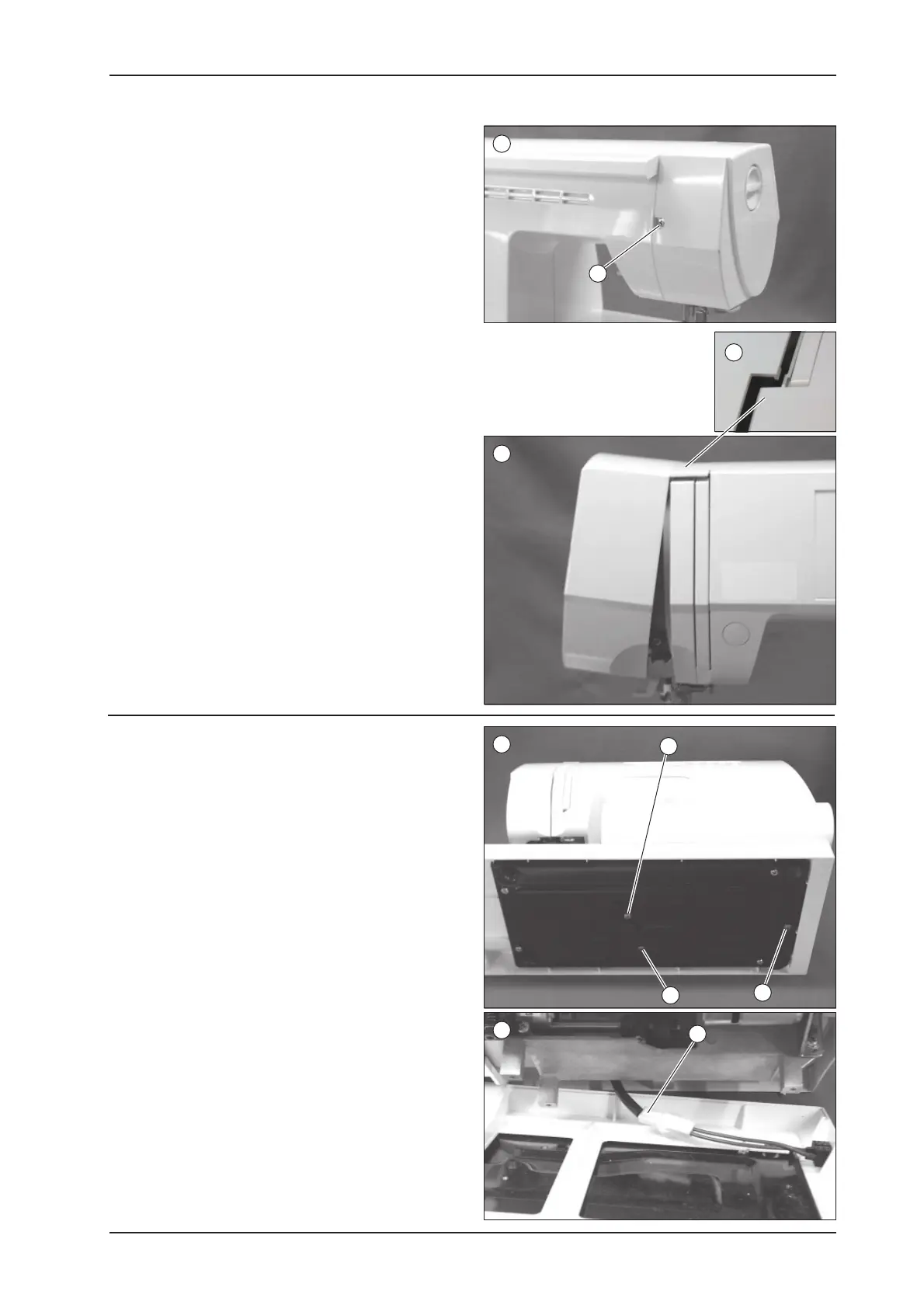

A. Light Cover
1. Loosen the light cover set screw (a).
B. Base
1. Remove the extension table.
2. Tilt the machine backward and remove the 3 base set
screws (a, b, c). Remove the base.
2. Pull light cover as shown so that the light cover hook
(b) will come off.
The exterior parts should be removed in sequence as
followings.
CAUTION:
Always disconnect the main lead plug from electcrial
outlet when removing the exterior parts.
3. Carefully disconnect the connector with holding the
lever (d).
This connector connects terminal box and power
circuit board.
1
a
2
b
2
a
b
c
3
d
