PRE-OPERATION FUNCTION TEST

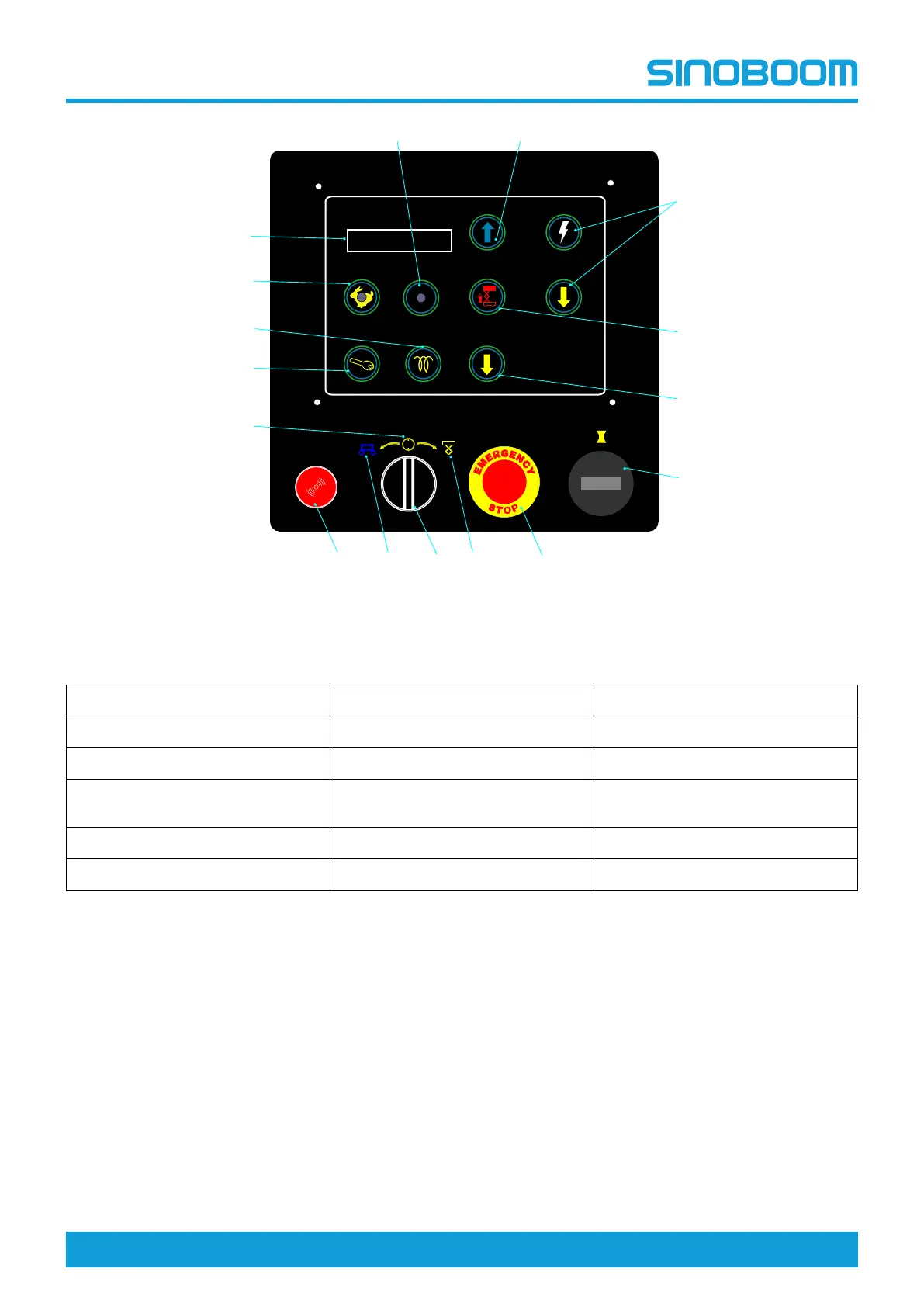

Figure 6-1 Ground controller (DTC system)
Table 6-1
1. Hour meter
7. OFF position 13. Platform up/down enable switch
2. Emergency stop button 8. Glow plug switch
14. Platform down switch
3. Platform position 9. Engine preheat switch 15. Overload indicator light
4. Key switch (Ground/Platform
select switch)
10. Engine speed select switch (with
indicator light)
16. Emergency lowering switch
5. Ground position
11. LCD screen
6. Buzzer
12. Platform up switch
CAUTION
1
2
4 356
7
11
10
15
13
16
12
14
9
8
!
