PRE-OPERATION FUNCTION TEST
1323RD&1623RD Operation Manual 6-3 © Mar. 2022

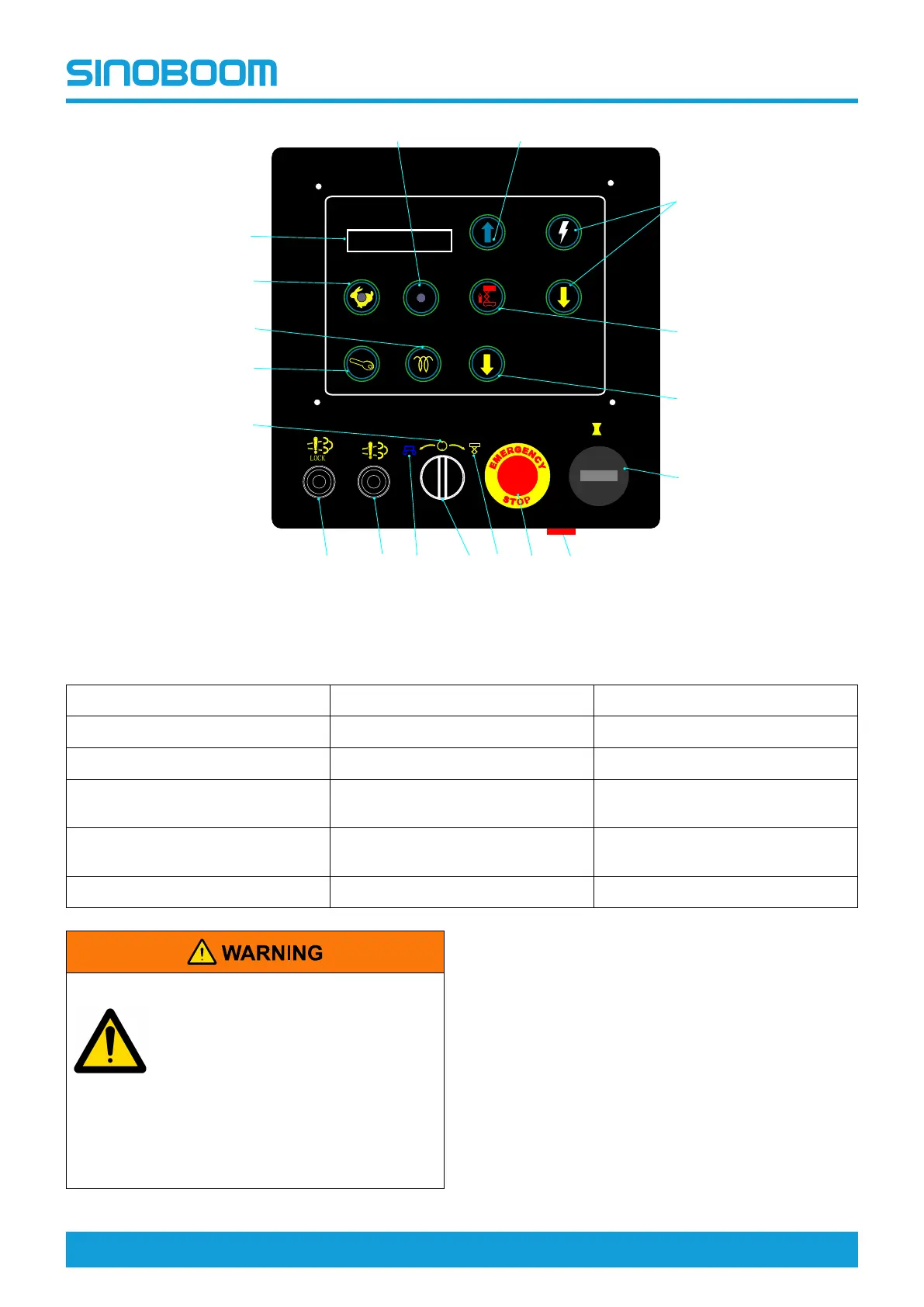

Figure 6-2 Ground controller (DTC system)-for EU Stage 5 engines
Table 6-2
1. Hour meter
7. OFF position 13. Platform up/down enable switch
2. Buzzer
8. Regen request switch
14. Platform down switch
3. Emergency stop button 9. Regen interlock switch 15. Overload indicator light
4. Platform position
10.Engine speed select switch (with
indicator light)
16. Emergency lowering switch
5. Key switch (Ground/Platform
select switch)
11.LCD screen
17. Engine start switch
6. Ground position 12. Platform up switch 18. Glow plug switch
UNSAFE OPERATION HAZARD
• Unless in emergency situations,
never operate the machine from
the ground controller if there are
still persons on the platform.
• Never operate the machine if any
control handle or switch that
controls the platform movement
is not returned to the OFF position
after being released.
PREPARATION
1. Select a firm, level test surface free of obstructions.
2. Turn the Ground/Platform select switch on ground
controller to Ground position.
3. Pull out the emergency stop button on ground
controller to ON position.
4. Ensure the LCD screen is lit and reads “SYSTEM
READY”.
1
2
5
3
4
6
89
!
7
17
18
10
11
13
12
14
15
16
