PRE-OPERATION FUNCTION TEST
CLIMBING MODE
• Turn the Ground/Platform select switch on ground
controller to Platform position, activate the drive &
steer mode, and press the climbing mode enable
switch, the machine should be switched to the
climbing mode, and the indicator light should be
lit.
Note: When the fore-and-aft inclination of the
machine is beyond 6°, the climbing mode will be
activated automatically.

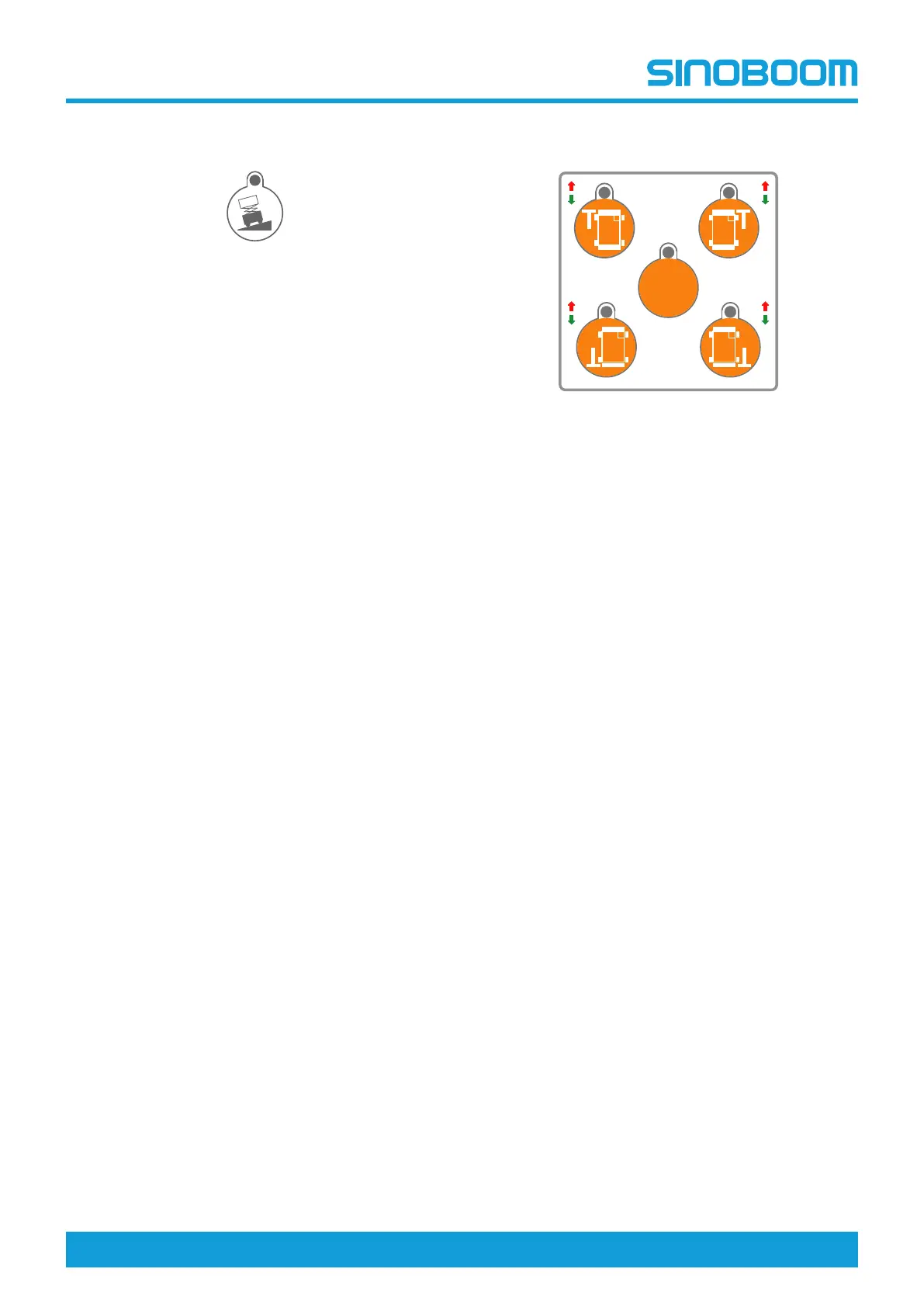

OUTRIGGER LEVELING
1. Press the outrigger self-level switch, hold the
joystick enable switch and slowly pull backward
the joystick.
2. The outriggers should extend to the ground and
level the machine, and the indicator light should
be lit after the machine becomes level.
3. Press the outrigger self-level switch, and hold the
joystick enable switch and slowly push forward
the joystick.
4. The outriggers should retract, and the indicator
light should go out.
5. Press the individual outrigger level switch, and
hold the joystick enable switch and slowly pull
backward the joystick.
6. The corresponding outrigger should retract and
the indicator light should be lit after the outrigger
touches the ground.
7. Press the individual outrigger level switch, and
hold the joystick enable switch and slowly push
forward the joystick.
8. The corresponding outrigger should retract and
the indicator light should go out.
TESTING THE EMERGENCY
LOWERING FUNCTION
1. Turn the Ground/Platform select switch on the
ground controller to the platform control position.
2. Pull out the emergency stop buttons on both the
ground and platform controllers to the ON position.
3. Press the engine start switch on platform controller.
4. Press the platform lift switch.
5. Hold the joystick enable switch and slowly deflect
forward the joystick to raise the platform to a height
and release the joystick
