Sinoboom 1323RD - Ground;Platform Select Switch; Ignition Switch; Emergency Stop Button; Glow Plug Switch

© Mar. 2022 6-8 1323RD&1623RD Operation Manual

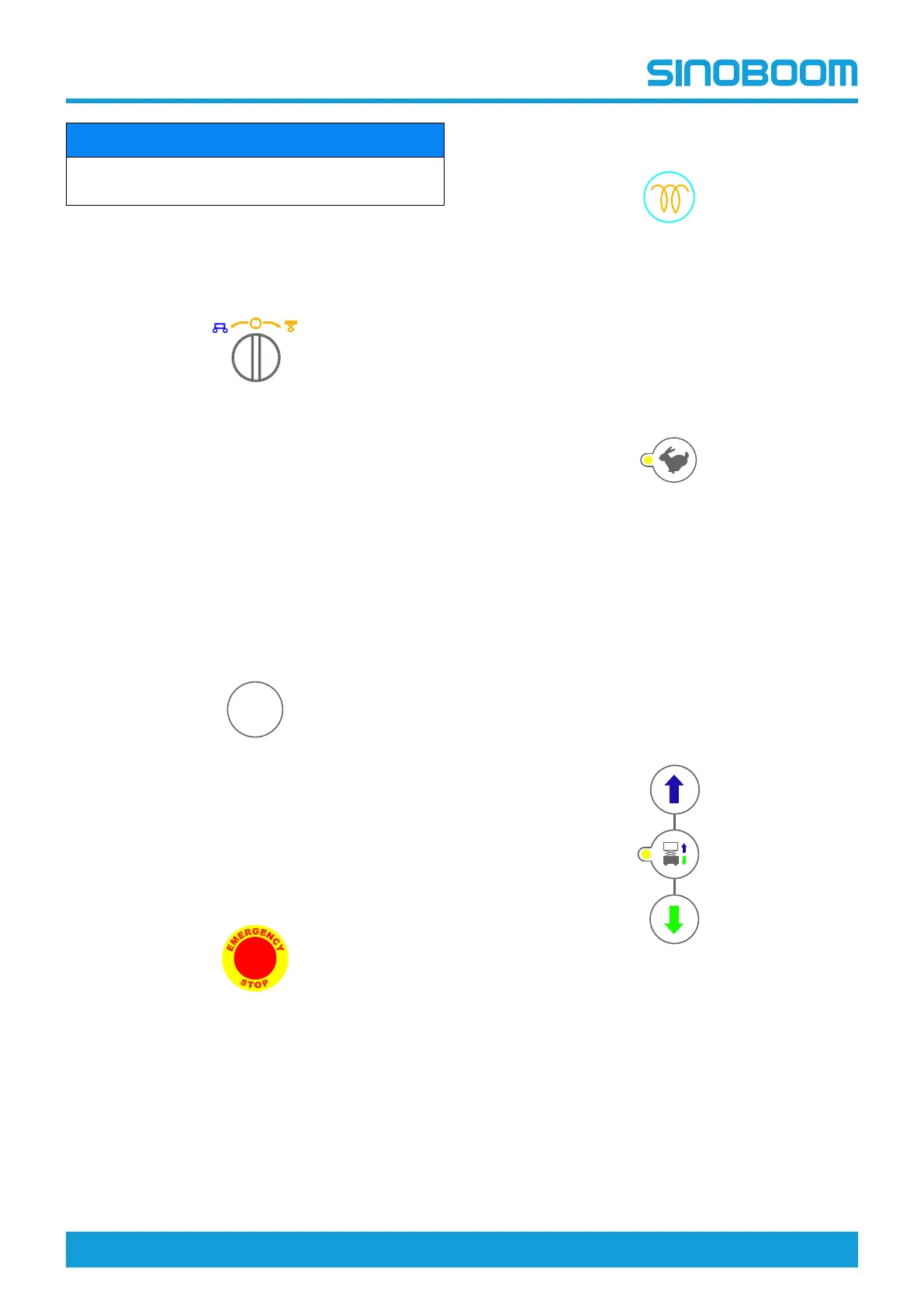

PRE-OPERATION FUNCTION TEST
NOTICE
In cold weather, the LCD screen needs warming up
before it properly displays anything.
GROUND/PLATFORM SELECT
SWITCH
1. Turn the Ground/Platform select switch on ground
controller to Ground control position, and all
functions are only operative on the ground
controller, while the platform controller is
inoperative.
2. Turn the Ground/Platform select switch on ground
controller to Platform control position, and all
functions are only operative on the platform
controller, while the ground controller is
inoperative.
IGNITION SWITCH
After pressing the ignition switch, the engine should
be started smoothly without abnormal noises.
Note: This switch will be inoperative after engine
startup.
EMERGENCY STOP BUTTON
1. Push in the emergency stop button on ground
controller to OFF position, and press the engine
start switch, the engine should not be started and
all functions are inoperative.
2. Pull out the emergency stop button on ground
controller to ON position, and press the engine
start switch, the engine can be normally started.
GLOW PLUG SWITCH
After pressing the glow plug switch and holding it for
6-10s, the engine should take in air for preheating.
Note:
An electrically-controlled engine can be preheated
automatically.
ENGINE SPEED SELECT SWITCH
After pressing the engine speed select switch, the
button should be lit, indicating the engine is at high
idle speed; by pressing the button again, the button
shall go out, indicating the engine is at low idle
speed.
Note: The engine is defaulted to low idle speed.
PLATFORM UP/DOWN FUNCTION
The alarm sounds 60 times/minute while the platform is
lowering, and 180 times/minute while the machine is tilt.
1. Press the platform up/down enable switch, the
button should be lit.
2. Press the platform up switch, the platform should
be raised.
3. Press the platform down switch, the platform
should be lowered and the lowering alarm should
sound.
