PRE-OPERATION FUNCTION TEST
1323RD&1623RD Operation Manual 6-7 © Mar. 2022

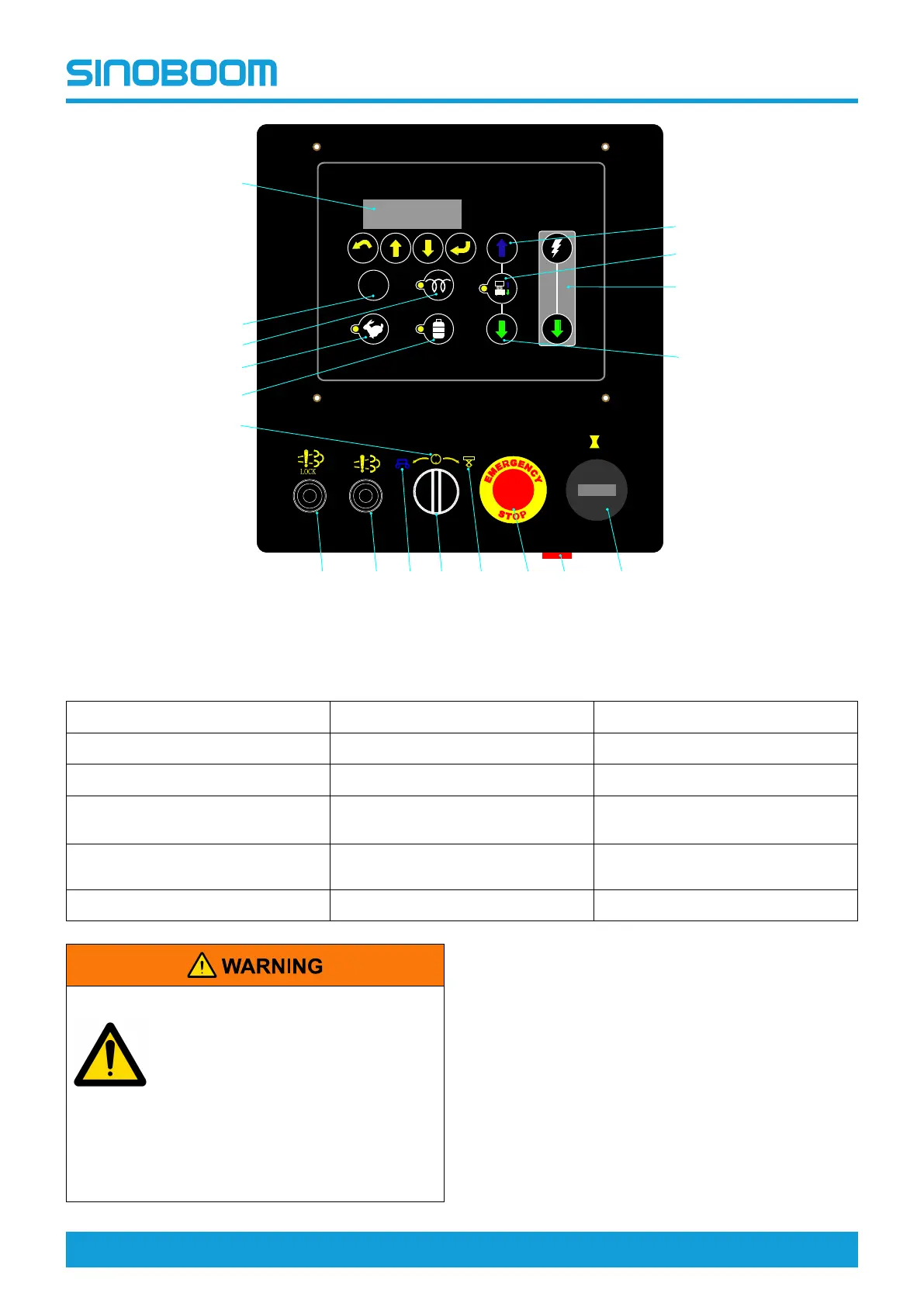

Figure 6-4 Ground controller (Sinoboom control system)-for EU Stage V engines
Table 6-4
1. Hour meter
7. Neutral position 13. Ignition switch
2. Emergency stop button 8. Regeneration request switch
14. LED screen
3. Platform control position 9. Regeneration interlock switch 15. Platform up switch
4. Key switch (Ground/Platform
select switch)
10. Natural gas switch (not used) 16. Platform up/down enable switch
5. Ground control position 11. Engine speed select switch
17. Emergency lowering
combination switch
6. Buzzer
12. Glow plug switch
18. Platform down switch
UNSAFE OPERATION HAZARD
• Unless in emergency situations,
never operate the machine from
the ground controller if there is
any person on the platform.
• Never operate the machine if any
control handle or switch that
controls the platform movement
is not returned to the OFF position
after being released.
PREPARATION
1. Select a firm, level test surface free of obstructions.
2. Turn the Ground/Platform select switch on ground
controller to Ground control position.
3. Pull out the emergency stop button on ground
controller to ON position.
4. Ensure the LCD screen is lit, and then
“System Loading…”, “星邦智能高空作业平台” (-
Sinoboom Intelligent Aerial Work Platform), and the
angles in X-axis and Y-axis of chassis are displayed
successively.
POWER
!
T T
14
7
10
11
12
13
5 3
46
1
2
8
9
15
17
18
16
