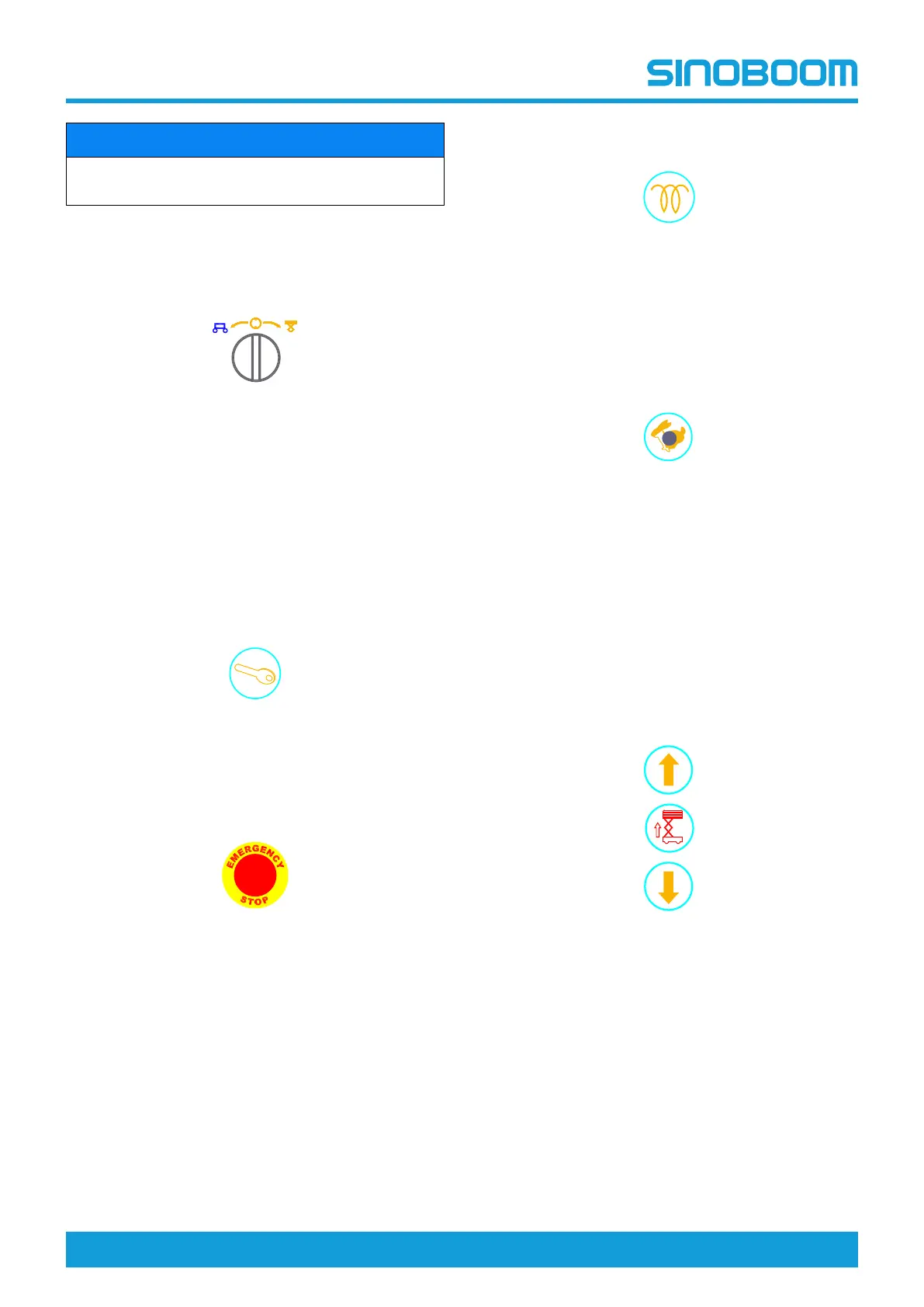

Sinoboom 1323RD - Ground;Platform Select Switch; Engine Start Switch; Emergency Stop Button; Glow Plug Switch

© Mar. 2022 6-4 1323RD&1623RD Operation Manual
PRE-OPERATION FUNCTION TEST
NOTICE
In cold weather, the LCD screen needs warming up
before it properly displays information.
GROUND/PLATFORM SELECT
SWITCH
1. Turn the Ground/Platform select switch on ground
controller to Ground position, all functions will
only be operative on the ground controller, while
the platform controller will be inoperative.
2. Turn the Ground/Platform select switch on ground
controller to Platform position, all functions will
only be operative on the platform controller, while
the ground controller will be inoperative.
ENGINE START SWITCH
Press the engine start switch, the engine should be
started smoothly without abnormal noises.
EMERGENCY STOP BUTTON
1. Push in the emergency stop button on ground
controller to OFF position, and press the engine
start switch, the engine should not be started and
all functions should be inoperative.
2. Pull out the emergency stop button on ground
controller to ON position, and press the engine
start switch, the engine will be normally started.
GLOW PLUG SWITCH
Press the glow plug switch and hold it for 6–10s, the
engine should take in air for preheating.
Electrically-controlled engines can be preheated
automatically.
ENGINE SPEED SELECT SWITCH
Press the engine speed select switch, the button
should be lit, indicating the engine is at high idle
speed; press the button again, the button light should
go out, indicating the engine is at low idle speed.
Note: The engine is running at low idle speed by
default.
PLATFORM UP/DOWN FUNCTION
The alarm sounds 60 times/minute while the platform is
lowering, and 180 times/minute while the machine is tilt.
1. Press the platform up switch or down switch
without pressing the platform up/down enable
switch, the intended function will be inoperative.
2. Press the platform up/down enable switch, the
button should be lit.
3. Press the platform up switch, the platform should
rise.
4. Press the platform down switch, the platform
should descend and the alarm sounds.
