Sinoboom 1323RD - Lifting the Machine with a Crane

© Mar. 2022 8-2 1323RD&1623RD Operation Manual
TRANSPORTING AND LIFTING THE MACHINE
5. Ensure the chains or straps are of ample loading
capacity.
6. Turn the key switch to the OFF position and remove
the key before transporting.
7. Inspect the entire machine for loose or unsecure
items. Use straps to secure the fold-down rails
before transporting.

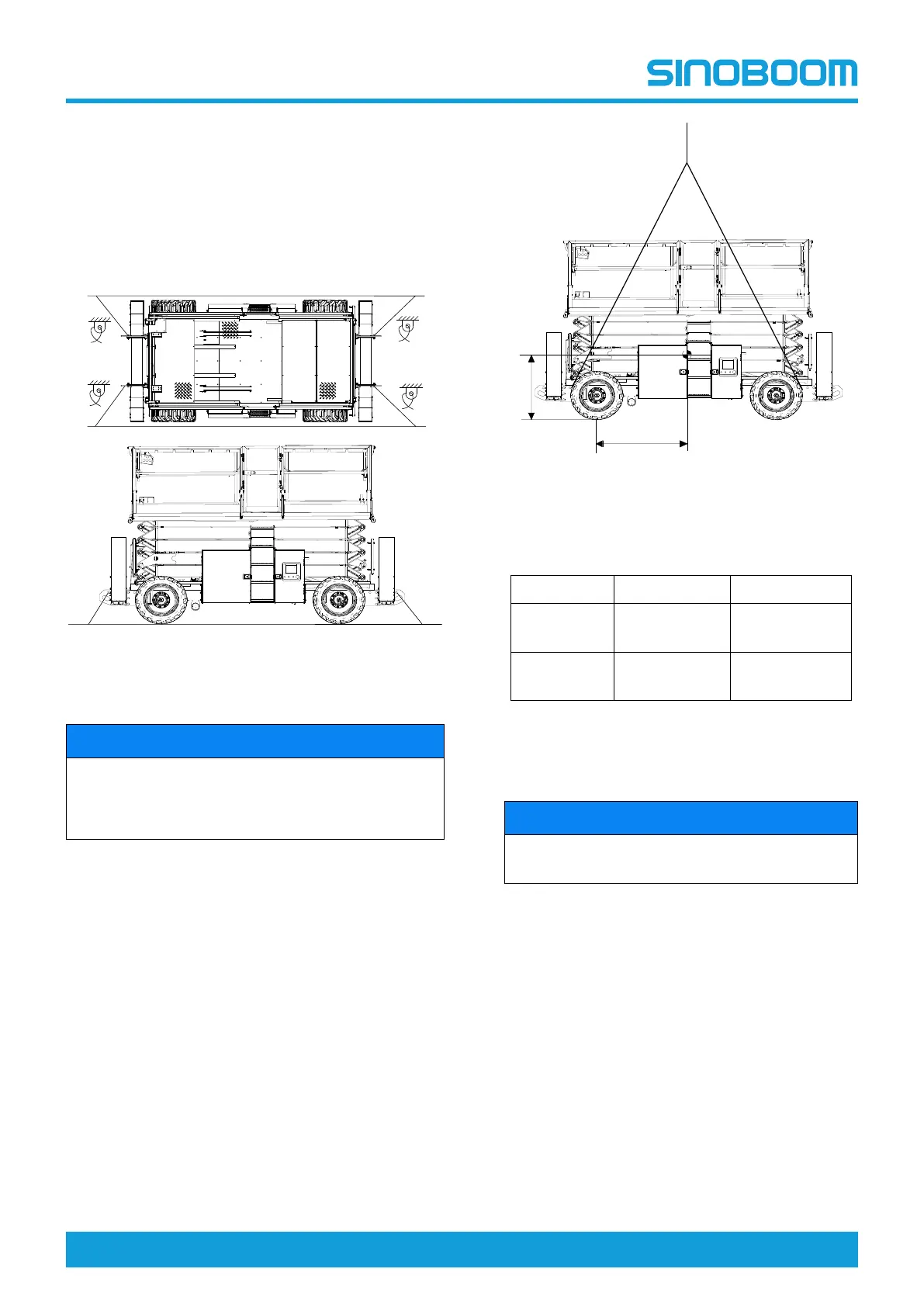

Figure 8-2
NOTICE
Retract the extension platform to secure it to the
slot, and ensure the extension platform will not
extend or shake out from the main platform during
transport.
LIFTING THE MACHINE
WITH A CRANE
Follow these requirements when lifting the machine by
crane:
1. Fully lower the platform. Keep the platform lowered
during transportation.
2. Ensure the extension platforms, controllers and
chassis components are adequately secured in
place.
3. Remove all loose items from the machine.
4. Determine the center of gravity of the machine.
Figure 8-3
Table 8-1
Models X Y
1323RD
1900 mm
(74.8 in.)
1000 mm
(39.4 in.)
1623RD
1900 mm
(74.8 in.)
1000 mm
(39.4 in.)
5. Only connect the rigging to the designated lifting
points on the machine. Adjust the rigging to avoid
damaging the machine and to keep the machine
horizontal.
NOTICE
To protect the platform guardrail, choose the
rigging with appropriate length.
X
Y
